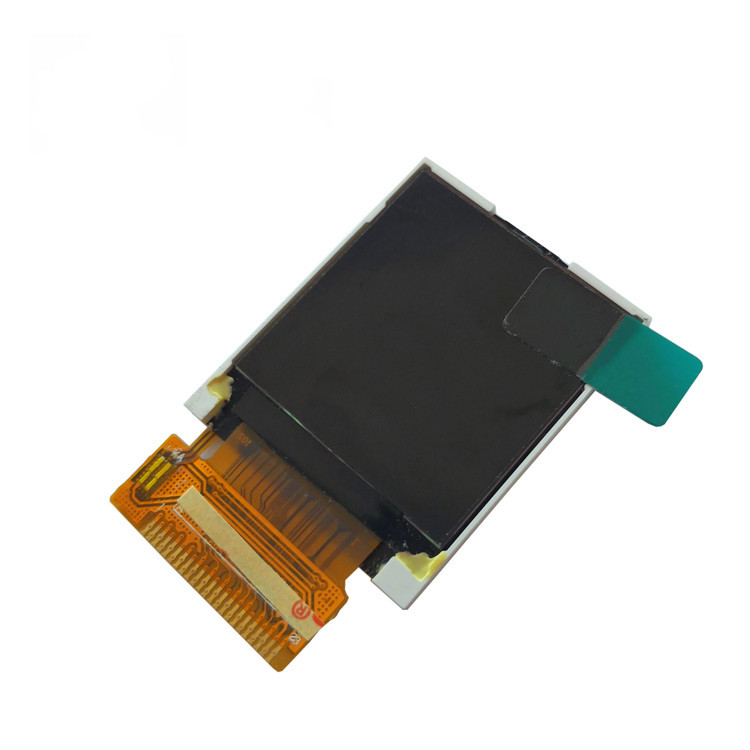

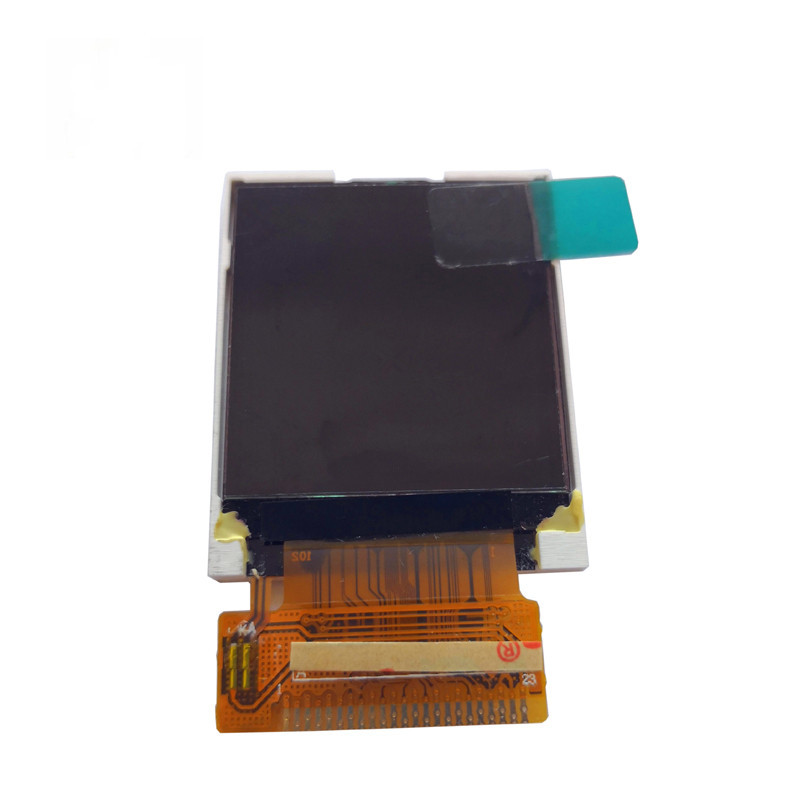

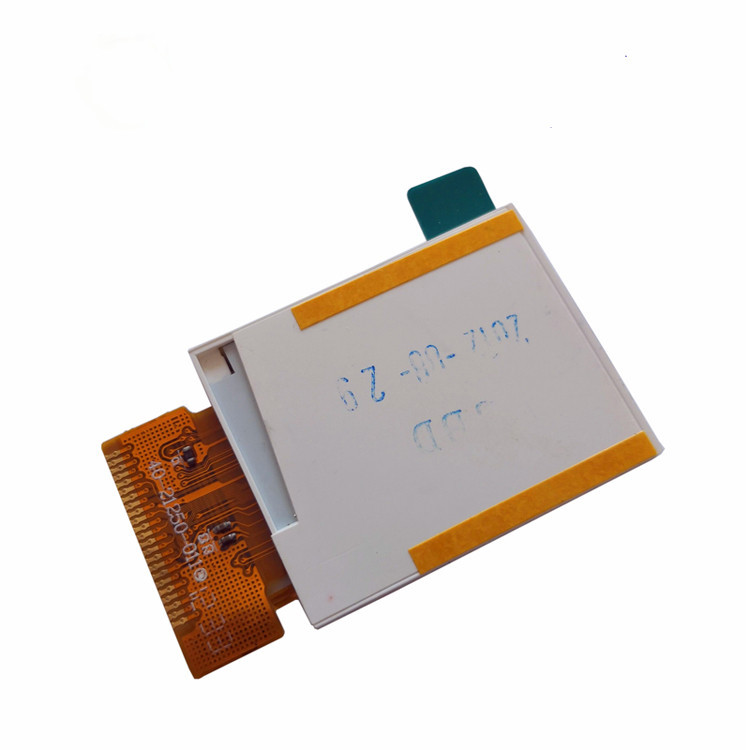

1.44 inch LED Backlit TFT LCD Display with 128x128 Resolution and 180nits Brightness for Smart Watch
Product Details
| Display Size: | 1.44 Inch | Display Type: | TFT, LCD Panel |
|---|---|---|---|
| Resolution: | 128x128 | Viewing Angle: | 180nits |
| Interface: | SPI | Contrast Ratio: | 500:1 |
| Viewing Direction: | 12 O' Clock | Driver IC: | ILI9163C |
| Module Size: | 29.5(W)×36.5(H)×2.65(T) | Active Area: | 25.5(W)×26.5(H) |
| Operating Temperature: | -20 ~ +70 | Storage Temperature: | -30 ~ +80 |
| Back Light: | White LED*1 | Brightness: | 180Cd/m2 |
| Display Mode: | TN / Transmission / Normally White | ||
| Highlight |
1.44 inch TFT LCD Display,128x128 Resolution LCD Module,180nits Brightness TFT Screen |
||
Product Description
| Product Name | TFT LCD Module |
|---|---|
| LCD Type | 1.44'' TFT |
| Dot Arrangement | 128(RGB)×128 |
| Color Filter Array | RGB Vertical Stripe |
| Display Mode | TN / Transmission / Normally White |
| Viewing Direction | 12 O'clock |
| Driver IC | ILI9163C |

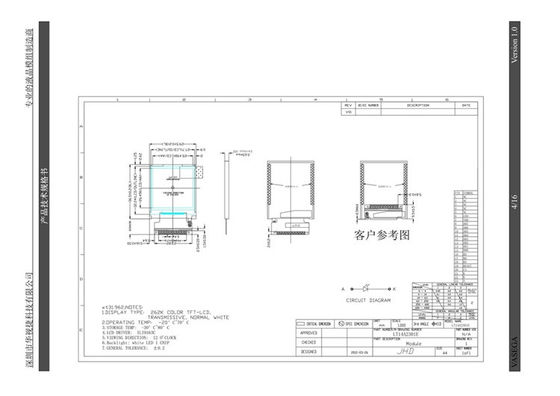

| Module Size | 29.5(W)×36.5(H)×2.65(T) (Exclude FPC) |
| Active Area | 25.5(W)×26.5(H) |
| Interface | 8080 8bit |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
| Back Light | White LED×1 |
| Brightness | 180Cd/m² |
- Replacement within 30 days for defective products
- Custom logo and model number printing available
- Established shipping partnerships for cost-effective delivery
- Professional technical support and after-sales service
- Rigorous quality inspection before shipment
- 24-hour customer service response
- Provide model number, quantity, and specifications
- We'll send a Proforma Invoice for approval
- Production begins upon payment confirmation
- Delivery as specified in the invoice
Product Highlights
1.44 Inch Small LCD Module Display Panel with LED Backlit TFT Screen This 1.44-inch TFT LCD module features LED backlighting and is designed for smart watch applications. The display offers clear visibility with a resolution of 128×128 pixels and operates within a wide temperature range. Technical Specifications Product Name TFT LCD Module LCD Type 1.44'' TFT Dot Arrangement 128(RGB)×128 Color Filter Array RGB Vertical Stripe Display Mode TN / Transmission / Normally White
