1000nits High Brightness TFT Display 1024 X 3 X 600 10.1 Tft Lcd Monitor Capacitive
Product Details
| Operational Temperature: | -20°C ~+70 °C | Touch IC: | GT911 |
|---|---|---|---|
| Active Area: | 196.608*114.15mm | Display Interface: | 40pin LVDS |
| Outline Dimensions: | 210.7*124.6*5.0mm | Main Material: | Liquid Crystal |
| Touch Interface: | I2C | Number Of Dots: | 1024*3(RGB)*600 |
| Highlight |
1000nits High Brightness TFT Display,High Brightness TFT Display 1024 X 3 X 600,10.1 tft lcd monitor Capacitive |
||
Product Description

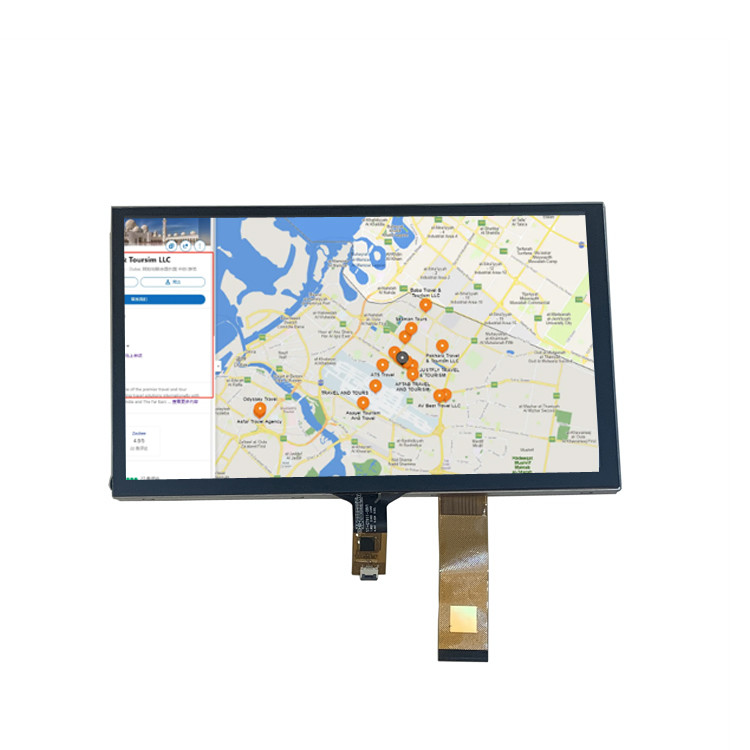

10.1 Inch High Brightness Luminance 1000nits TFT Display 1024*3 RGB *600 Resolution With Capacitive Touch Screen
Product Description:
In addition, the High Brightness TFT Display features a capacitive touch screen, making it easy to use with just a tap or swipe. With a pitch of just 0.5mm, this display provides a high level of detail and clarity, making it perfect for use in a variety of applications.
When it comes to storage, the High Brightness TFT Display is designed to perform in a wide range of temperatures. With a storage temperature range of -30 ~ +80ºC, this display is perfect for use in a variety of settings.
Finally, the High Brightness TFT Display comes equipped with a touch IC of GT911, ensuring that it is responsive and easy to use. Whether you're using it for work or play, this display is sure to impress.
Features:
- Product Name: High Brightness TFT Display
- Operational Temperature: -20°C ~+70 °C
- Touch IC: GT911
- Touch Interface: I2C
- Display IC: HX8282+HX8696
- Hs Code: 9013803010
- 4pin LVDS interface
- IPS panel
- 1024X600 display
Technical Parameters:
| Number Of Dots: | 1024*3(RGB)*600 |
| Display Interface: | 40pin LVDS |
| Touch Screen: | Capacitive Touch Screen |
| Storage Temperature: | -30 ~ +80ºC |
| Luminance: | 1000nits |
| Hs Code: | 9013803010 |
| Outline Dimensions: | 210.7*124.6*5.0mm |
| Main Material: | Liquid Crystal |
| Operational Temperature: | -20°C ~+70 °C |
| Touch Interface: | I2C |
Applications:
The High Brightness TFT Display is perfect for a wide range of product application occasions and scenarios. With an operational temperature range of -20°C ~+70 °C and storage temperature range of -30 ~ +80ºC, this display is suitable for use in various environments. The 45pin LVDS interface makes it easy to connect to other devices and the IPS panel provides a wide viewing angle, which is perfect for displays that need to be viewed at different angles.
This product is capable of displaying 1024X600 resolution, which means that it can display high-quality images and videos. The capacitive touch screen and GT911 touch IC make it easy to interact with the display, which is perfect for products that require user input.
The High Brightness TFT Display has an outline dimension of 210.7*124.6*5.0mm, which is compact and easy to integrate into various products. This product is perfect for use in various scenarios such as industrial control displays, medical equipment displays, and automotive displays.
FAQ:

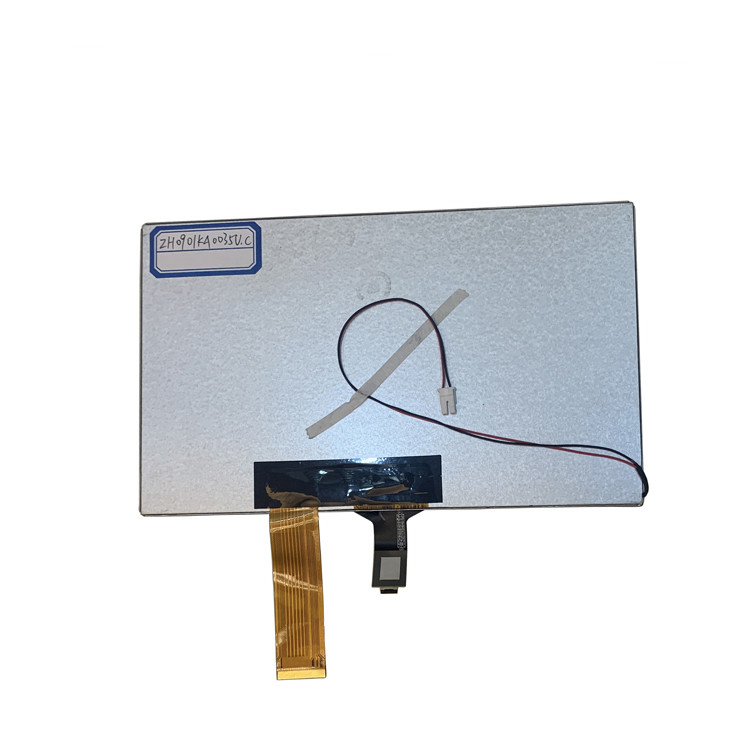

Frequently Asked Questions for High Brightness TFT Display (Model: ZH090IKA0035V.C)
Q: What is the brand name of this product?
A: The brand name of this product is OEM.
Q: What is the model number of this product?
A: The model number of this product is ZH090IKA0035V.C.
Q: Where is this product manufactured?
A: This product is manufactured in China.
Q: Does this product have any certification?
A: Yes, this product is ROHS certified.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 piece.
Q: What is the price of this product?
A: The price of this product is negotiated based on the quantity ordered.
Q: What are the packaging details for this product?
A: The packaging details for this product include carton packing.
Q: What is the delivery time for this product?
A: The delivery time for this product is 7-15 working days.
Q: What are the payment terms for this product?
A: The payment terms for this product are T/T.
Q: What is the supply ability of this product?
A: The supply ability of this product is 300k per month.
