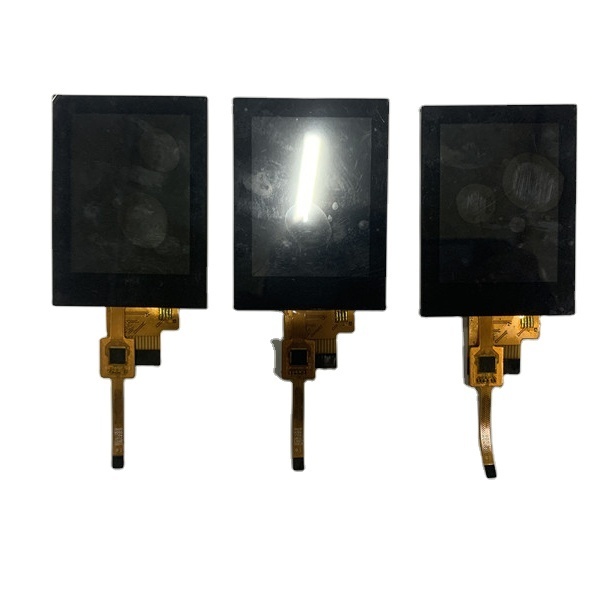

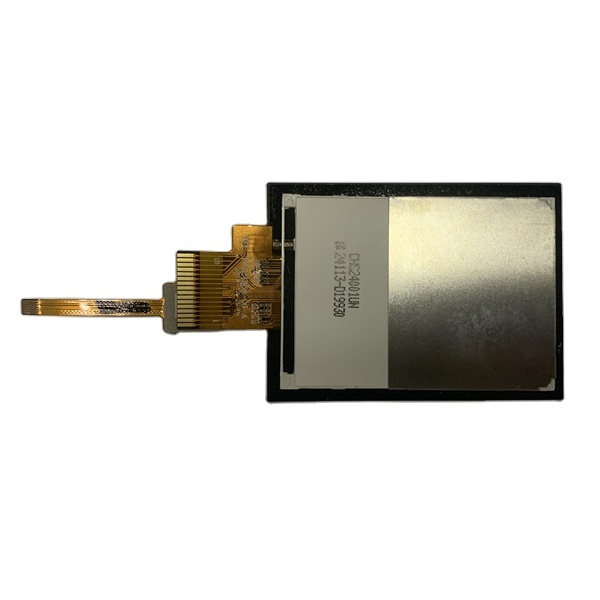

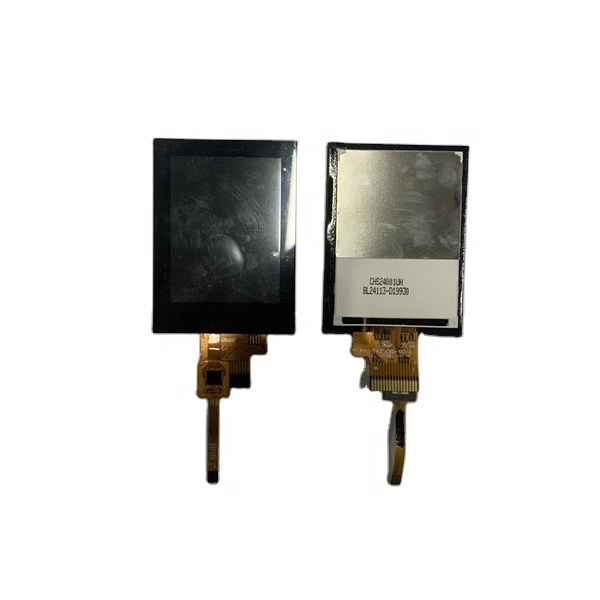

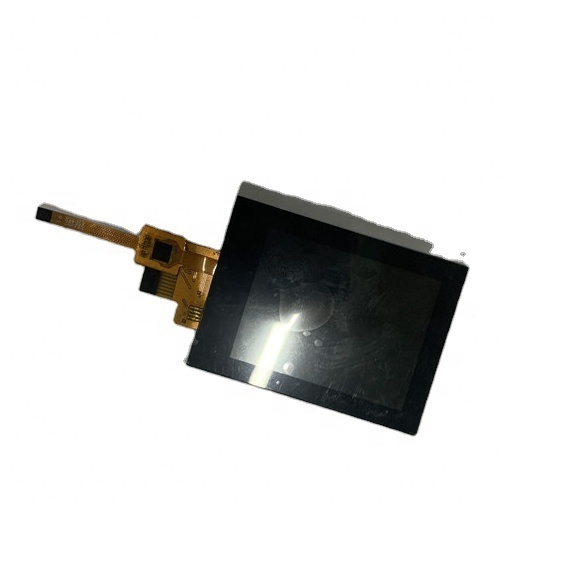

2.4 Inch TFT LCD Display with 220nits Luminance 500:1 Contrast Ratio and 6 O'Clock Viewing Direction
Product Details
| Screen Size: | 2.4 Inch | Display Type: | TFT LCD |
|---|---|---|---|
| Resolution: | 240x320 | Interface: | 4-wire SPI |
| Driver IC: | ILI9341V | Touch Panel: | Capacitive |
| Dimensions: | 42.72x60.26x2.29 Mm | Luminance: | 220 Cd/m² |
| Contrast Ratio: | 500:1 | Viewing Direction: | 6 O'Clock |
| Response Time: | 1ms | NTSC Ratio: | 65% |
| Operating Temperature: | -20~70℃ | Storage Temperature: | -30~80℃ |
| Pin Count: | 16 Pins | ||
| Highlight |
220nits TFT LCD Display,500:1 contrast ratio LCD Touch Screen,6 O'Clock viewing direction TFT Module |
||
Product Description
2.4" TN TFT LCD Module with 240×320 resolution, capacitive touch screen, and ILI9341V driver. Features 4-wire SPI serial port interface with 16 pins.
| Model No. | ZH024TC22023V.C |
|---|---|
| Usage | Home Appliance, GPS, Door Bell, Auto Device, Medical Device, Industrial Design |
| Display Technology | TFT |
| Resolution | 240(RGB)×320 |
| Driver | ILI9341V |
| Interface | System parallel interface |
| Viewing Angle | 6 O'Clock |
| Response Time | 1ms |
| Luminance | 220 cd/m² |
| Contrast Ratio | 500:1 |
| Operating Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
- Replacement within 30 days for defective products
- Custom logo and model number printing available
- Competitive shipping rates with reliable carriers
- Professional technical support team
- Rigorous quality inspection before shipment
- 24-hour customer service response
ZhuoHong Electronic Technology specializes in TFT LCD display and touch screen solutions for over 10 years. 90% of our business involves custom display modules for industrial devices, medical equipment, and smart home applications.
2) We'll send a Proforma Invoice
3) Production begins after payment
4) Delivery as scheduled
Product Highlights
2.4 inch LCD TFT Screen Display ILI9341V 240×320 4-Wire SPI Serial Port 16pins with Touch Screen Product Overview 2.4" TN TFT LCD Module with 240×320 resolution, capacitive touch screen, and ILI9341V driver. Features 4-wire SPI serial port interface with 16 pins. Technical Specifications Model No. ZH024TC22023V.C Usage Home Appliance, GPS, Door Bell, Auto Device, Medical Device, Industrial Design Display Technology TFT Resolution 240(RGB)×320 Driver ILI9341V Interface System
