4.3 Inch IPS LCD Module with 480x800 Resolution and Free Viewing Angle for Industrial Applications
Product Details
| Display Size: | 4.3 Inch | Resolution: | 480x800 |
|---|---|---|---|
| Aspect Ratio: | 16:9 | Module Size: | 61.56 X 104.65 X 2.1 Mm |
| Active Area: | 56.16 X 93.6 Mm | Viewing Angle: | Free |
| Operating Temperature: | -20 To 70 °C | Storage Temperature: | -30 To 80 °C |
| Brightness: | 200 Cd/m2 | Interface: | MCU |
| Driver IC: | NT35510 | Touch Screen: | Capacitive |
| Display Type: | IPS TFT LCD | Color: | Black |
| Contrast Ratio: | 16:9 | ||
| Highlight |
16:9 aspect ratio IPS LCD Module,1 year warranty LCD Display Module,Free viewing angle TFT LCD Display |
||
Product Description

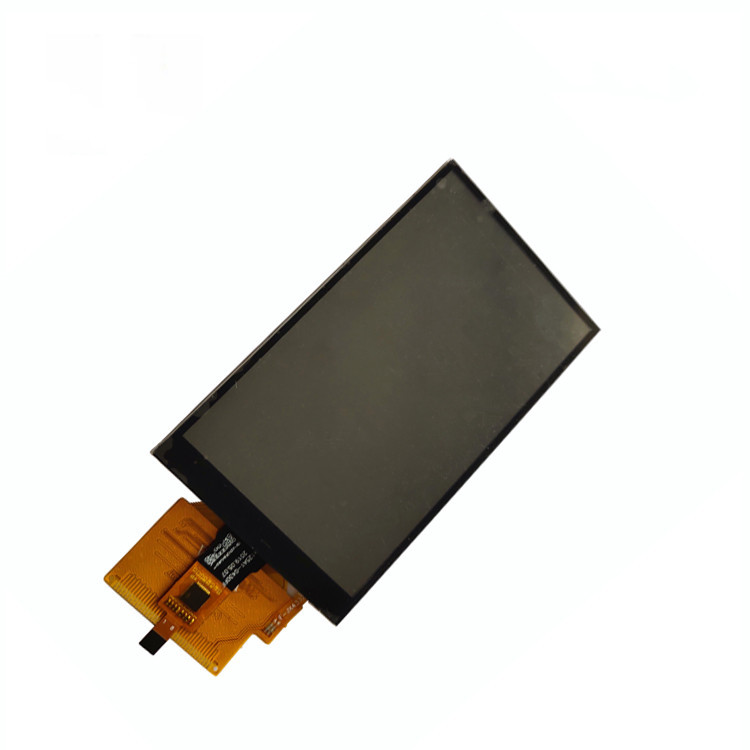

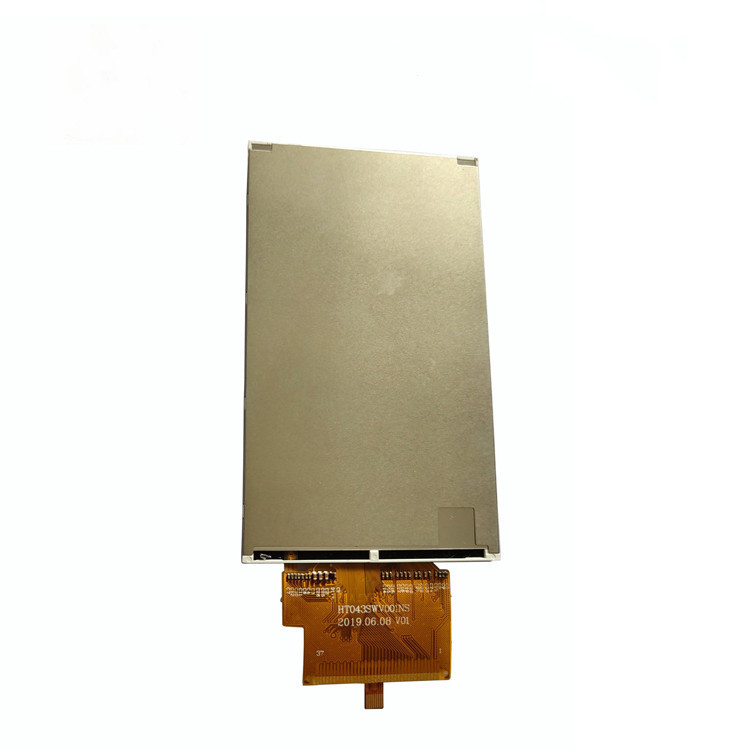

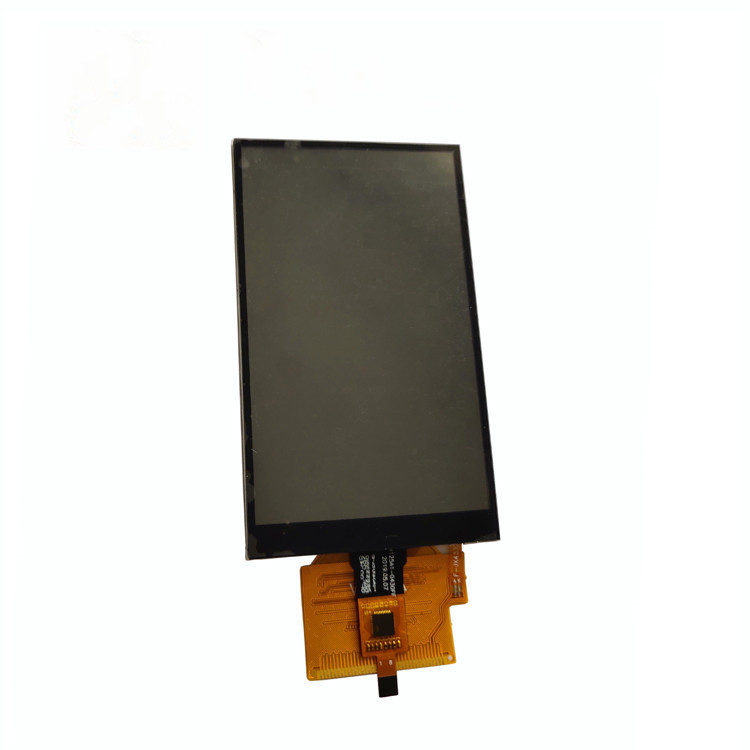

4.3" IPS TFT LCD Module with 480×800 resolution and capacitive touch screen, featuring wide viewing angles and robust performance for industrial applications.
| Part Number | ZH043SWV008NS |
| Display Size | 4.3 inches |
| Resolution | 480×3(RGB)×800 |
| Aspect Ratio | 16:9 |

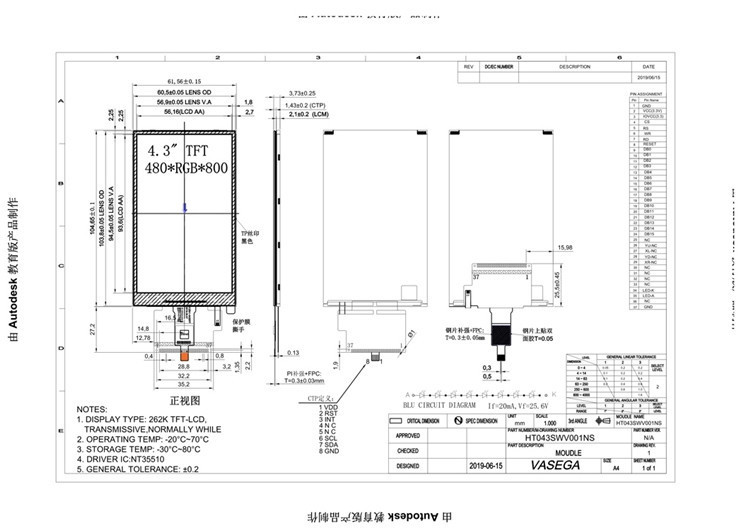

| Module Dimensions | 61.56×104.65×2.1mm (3.53mm with CTP) |
| Active Area | 56.16×93.6mm |
| Viewing Angle | Free (IPS technology) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Brightness | 200cd/m² |
| Interface | MCU |
| Driver IC | NT35510 |
| Touch Screen | Capacitive |
- 30-day replacement for defective products
- Custom logo and model number printing available
- Established shipping partnerships for cost-effective delivery
- Professional technical support team
- 100% quality inspection before shipment
- 24-hour customer service response
ZhuoHong Electronic Technology specializes in TFT LCD displays and touch screens with over 10 years of experience. 90% of our business involves custom display modules for industrial, medical, and smart home applications. We provide complete one-stop solutions with LCD displays and touch screens at our core.
We typically respond within 12 hours. For urgent requests, please contact us directly.
We provide a one-year warranty on all products.
Yes, sample orders are welcome to evaluate our quality and service.
1) Provide specifications and requirements
2) We'll send a Proforma Invoice
3) Production begins after payment
4) Timely delivery as agreed
We offer multiple options including DHL, UPS, FedEx, TNT, EMS, air cargo, and sea freight.
We implement rigorous quality control at all stages: incoming materials, production process, and final inspection.
Yes, we offer professional OEM services for custom requirements.
We accept T/T (bank transfer), L/C, and PayPal.
Our dedicated support team handles RMAs, firmware updates, and technical assistance.
