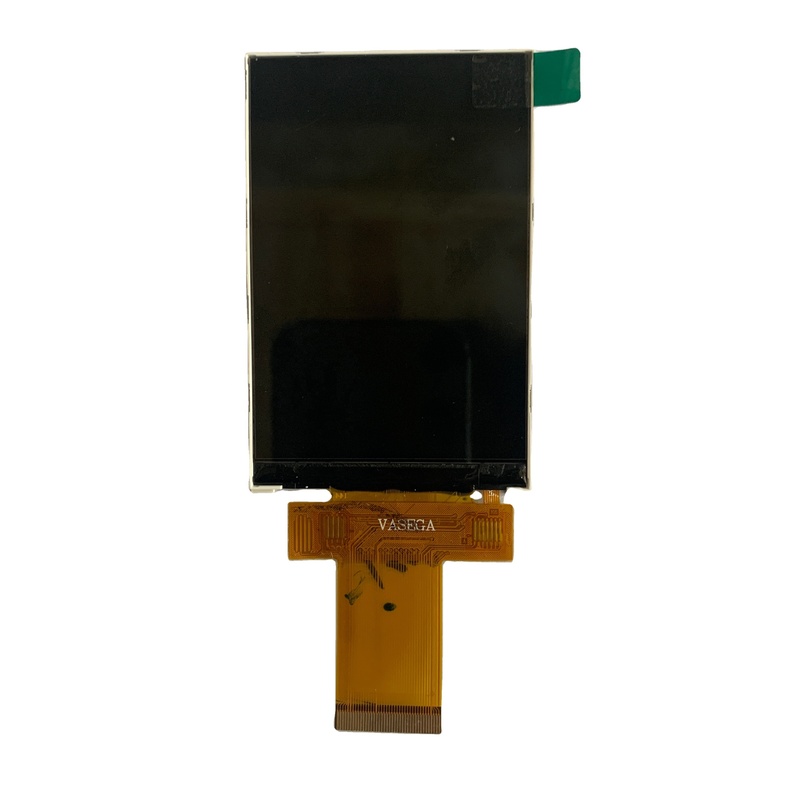

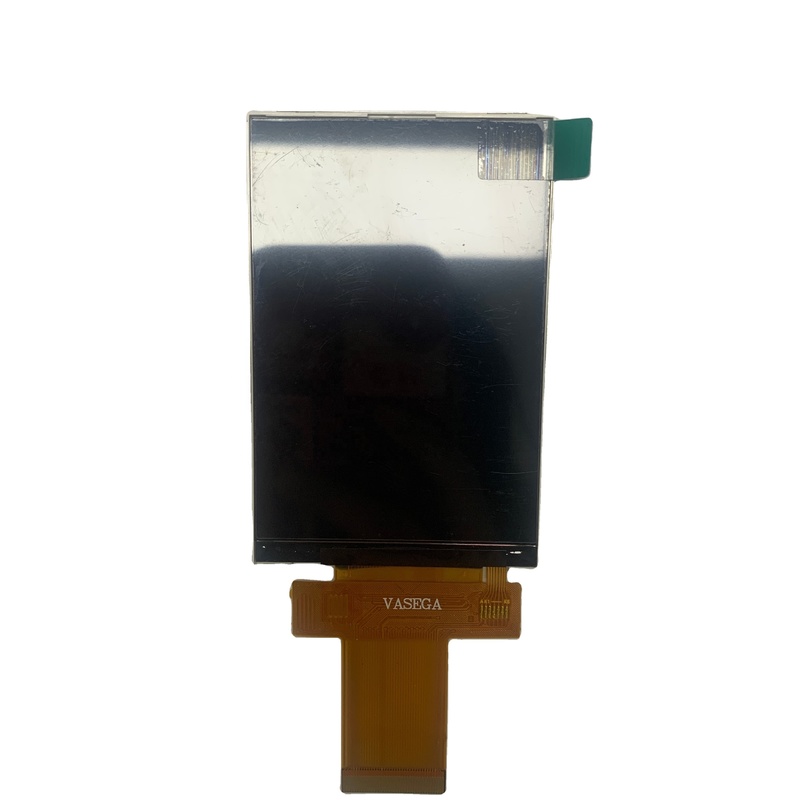

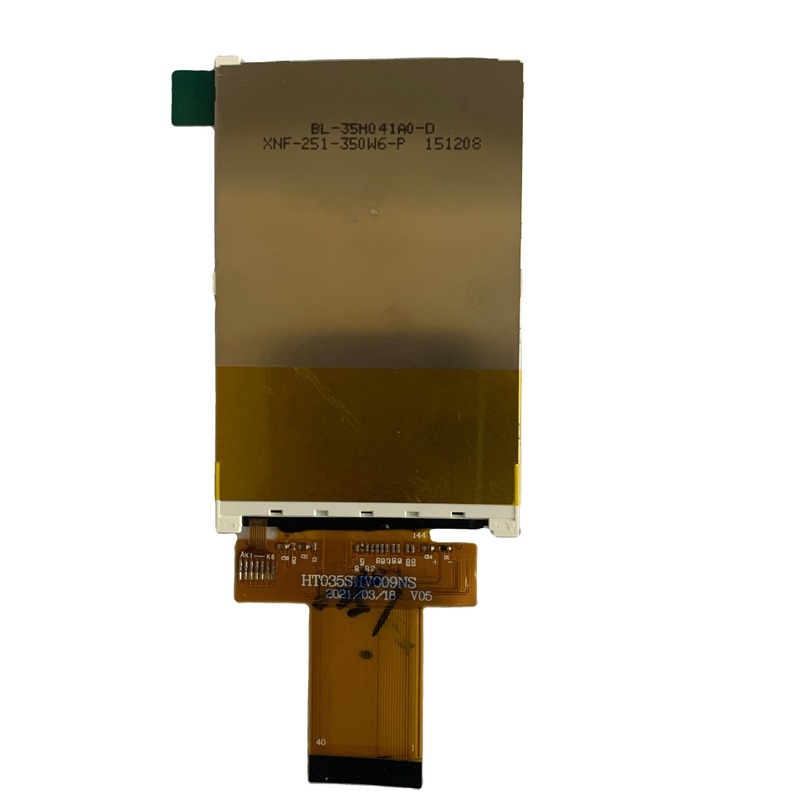

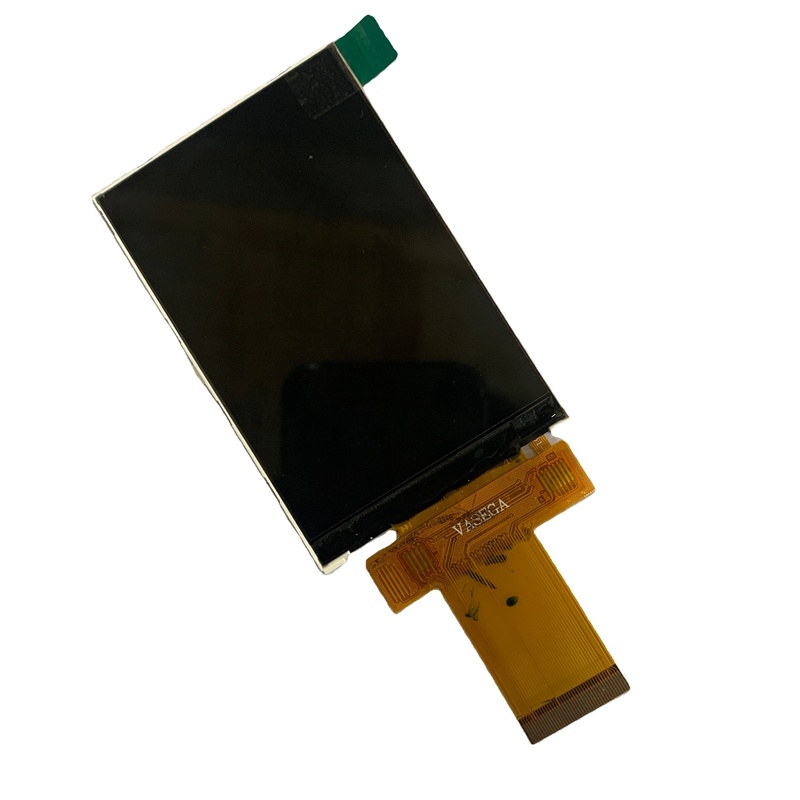

3.5 inch TFT LCD Display with 8bit/16bit Parallel Port 250nits Brightness and 16:9 Aspect Ratio
Product Details
| Screen Size: | 3.5 Inch | Resolution: | 320x480 |
|---|---|---|---|
| Aspect Ratio: | 16:9 | Module Size: | 55.26*84.52*2.4cm |
| Active Area: | 48.96x73.44cm | Viewing Angle: | 80/80/80/80 |
| Operating Temperature: | -20 To 70 | Storage Temperature: | -30 To 80 |
| Brightness: | 250cd/m2 | Interface: | MCU/RGB, 3/4-wire SPI, 8bit/16bit Parallel Port 40PIN |
| Driver IC: | ST7796 | Touch Screen: | Capacitive |
| Touch Points: | 5 Points | Luminance: | 250nits |
| Contrast Ratio: | 16:9 | ||
| Highlight |
8bit/16bit Parallel Port TFT LCD Display,250nits Brightness TFT LCD Panel,16:9 Aspect Ratio TFT LCD Screen |
||
Product Description
High-quality 3.5" TFT LCD display with IPS technology offering superior viewing angles and vibrant colors. Part Number: ZH35006-D.
| Feature | Specification |
|---|---|
| Interface | MCU/RGB |
| Size | 3.5 inches |
| Resolution | 320x3(RGB)x480 |
| Aspect Ratio | 16:9 |
| Module Size | 55.26×84.52×2.4 mm |
| Active Area | 48.96×73.44 mm |
| Viewing Angle | 80/80/80/80 |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
| Brightness | 250cd/m² |
| Driver IC | ST7796 |
| Touch Screen | Capacitive |
- High-quality IPS panel with wide viewing angles
- Multiple interface options: 3/4-wire SPI and 8bit/16bit parallel port
- 40-pin connector for easy integration
- ST7796U controller for reliable performance
- Capacitive touch screen included
Industrial control systems, home automation, digital photo frames, automotive displays, portable DVD players, POS machines, car navigation systems, robotics, medical devices, phones, and more.
- 30-day replacement warranty for defective products
- Custom logo printing and model number labeling available
- Established relationships with major shipping providers for cost-effective delivery
- Professional technical support team
- 100% quality inspection before shipment
- 24-hour customer service response
ZhuoHong Electronic Technology specializes in TFT LCD displays and touch screens with over 10 years of experience. 90% of our business involves custom display modules for industrial devices, medical equipment, and smart home applications.
We typically respond within 12 hours. For urgent requests, please contact us directly.
We provide a one-year warranty on all products.
Yes, sample orders are welcome to evaluate our quality and service.
1) Provide specifications and quantity
2) We'll send a proforma invoice
3) Production begins after payment
4) Delivery as scheduled
DHL, UPS, FedEx, TNT, EMS, air cargo, and sea freight options available.
Yes, we offer professional OEM customization.
T/T (bank transfer), L/C, and PayPal.
Yes, we have a dedicated technical support team and provide firmware updates.
Please contact us for the complete datasheet of ZH35006-D.
Product Highlights
3.5" TFT Display IPS Screen 320x480 TFT LCD Panel 3/4-wire SPI Compatible 8bit/16bit Parallel Port 40PIN ST7796U Controller Product Overview High-quality 3.5" TFT LCD display with IPS technology offering superior viewing angles and vibrant colors. Part Number: ZH35006-D. Technical Specifications Feature Specification Interface MCU/RGB Size 3.5 inches Resolution 320x3(RGB)x480 Aspect Ratio 16:9 Module Size 55.26×84.52×2.4 mm Active Area 48.96×73.44 mm Viewing Angle 80/80/80/80
