1.6 Inch Round IPS TFT LCD Display 400x400 ST77903 QSPI

Place of Origin: Guangdong, China
Minimum Order Quantity: 1
Price: $6.50-9

Product Details


Display Size: 1.6 Inch Resolution: 400x400
Driver IC: ST77903 Interface Type: QSPI
Backlight Type: White LED Operating Voltage: 2.8V~3.3V
Viewing Angle: All O'clock Operating Temperature: -20°C~+70°C
Storage Temperature: -30°C~+80°C Number Of Colors: 262K
Outline Dimensions: 42.94x45.89x2mm Touch Panel: Capacitive
Display Mode: Transmissive PIN Count: 18
Brightness: 1800
Highlight

1.6 inch round IPS LCD display

,

ST77903 QSPI TFT display

,

400x400 resolution round LCD

Product Description

1.6 Inch TFT Round Display 400x400 IC ST77903 QSPI Interface IPS Screen with Capacitive Touch
Key Specifications
Attribute Value
Display Type IPS TFT LCD
Display Size 1.6 inch
Resolution 400×400 (RGB)
Driver IC ST77903
Interface QSPI
Brightness 1800 cd/m²
Viewing Angle All directions
Touch Panel Capacitive touch screen
Operating Temperature -20°C to +70°C
Dimensions 42.94 × 45.89 × 2 mm
Technical Details
  • Display Mode: Transmissive
  • Color Depth: 262K colors
  • Backlight: White 6 LED Series
  • Operating Voltage: +2.8V~3.3V
  • Storage Temperature: -30°C~+80°C
  • Mounting Type: Wire Leads
  • PIN Count: 18
Product Images

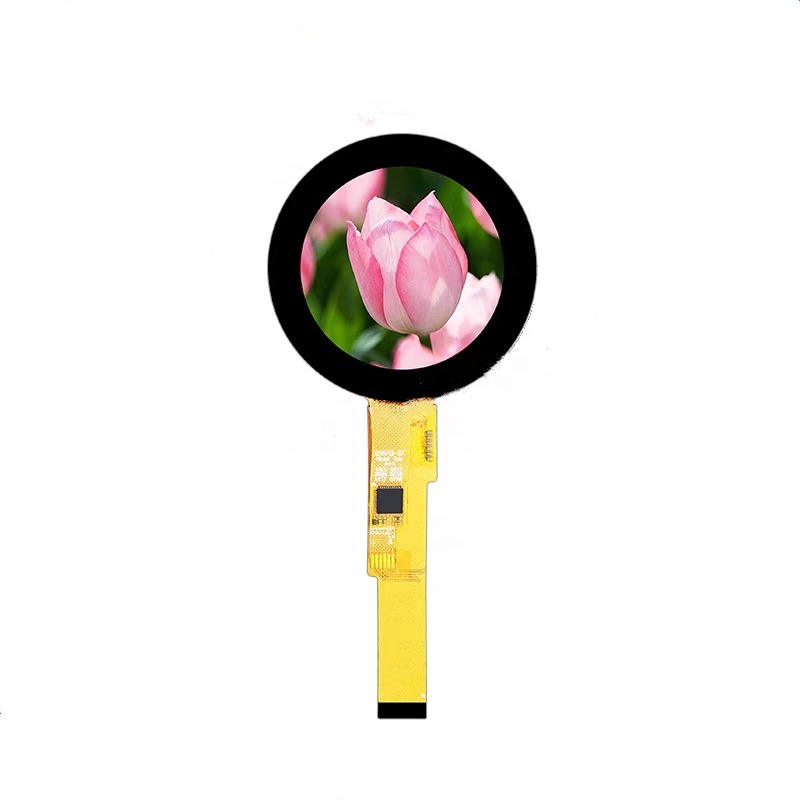

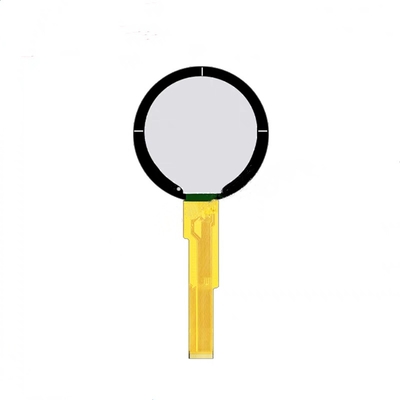

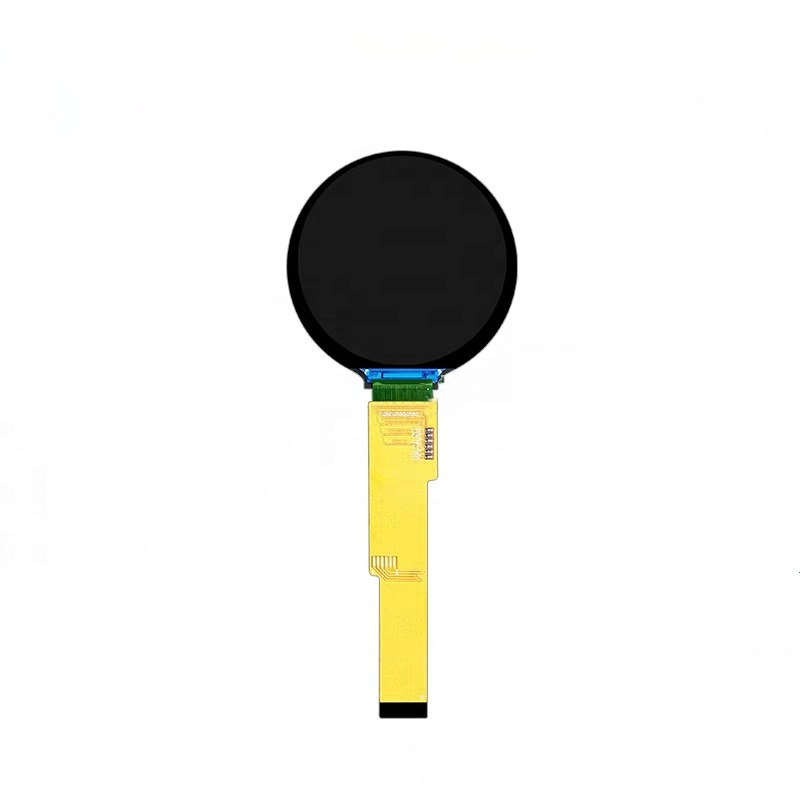

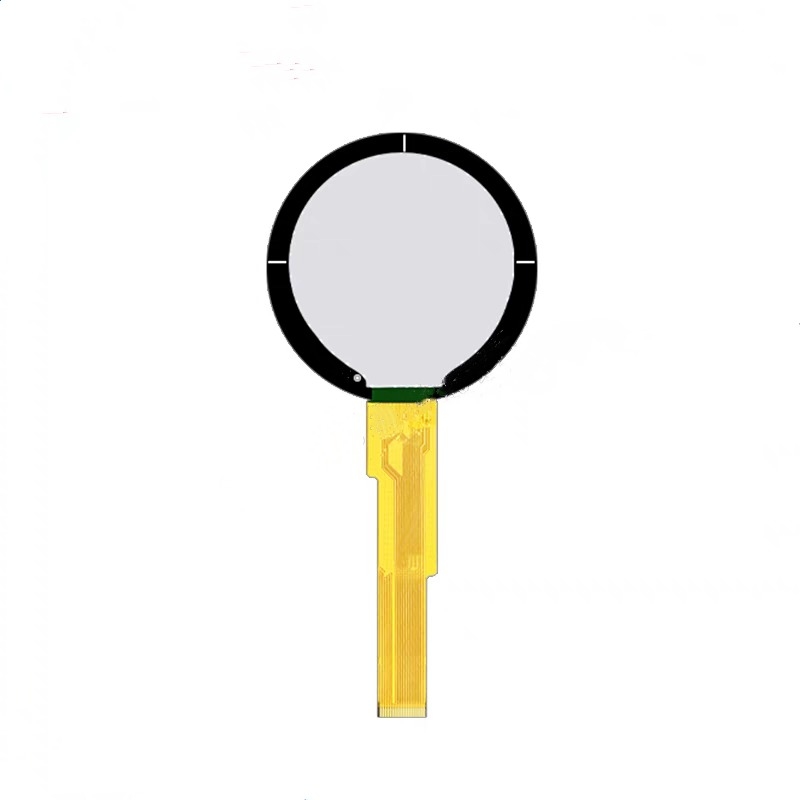

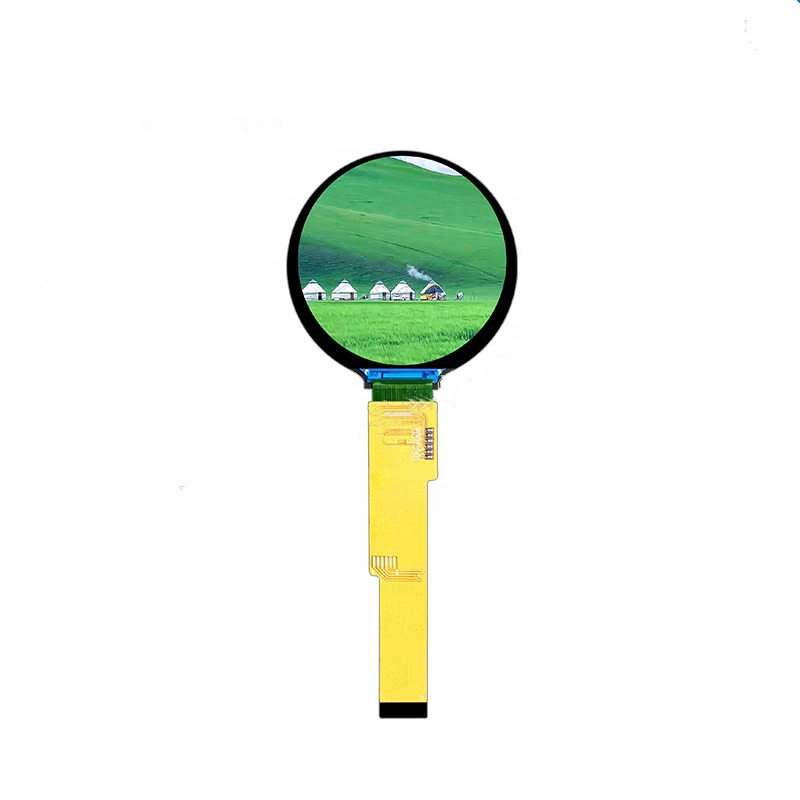

1.6 Inch Round IPS TFT LCD Display 400x400 ST77903 QSPI 0 1.6 Inch Round IPS TFT LCD Display 400x400 ST77903 QSPI 1
Our Services
1.6 Inch Round IPS TFT LCD Display 400x400 ST77903 QSPI 2
  • 30-day replacement policy for defective products
  • Custom branding options (logo and model number printing)
  • Competitive shipping rates with reliable carriers
  • Professional technical support team
  • Rigorous quality inspection before shipment
  • 24-hour customer service response time
Company Profile
ZhuoHong Electronic Technology specializes in TFT LCD displays and touch screens with over 10 years of experience. 90% of our business involves custom display modules for industrial devices, medical equipment, and smart home applications. We provide comprehensive one-stop solutions centered on LCD display and touch screen technologies.
1.6 Inch Round IPS TFT LCD Display 400x400 ST77903 QSPI 3 1.6 Inch Round IPS TFT LCD Display 400x400 ST77903 QSPI 4 1.6 Inch Round IPS TFT LCD Display 400x400 ST77903 QSPI 5 1.6 Inch Round IPS TFT LCD Display 400x400 ST77903 QSPI 6 1.6 Inch Round IPS TFT LCD Display 400x400 ST77903 QSPI 7
Frequently Asked Questions
Q: When can I get the quotation?
A: We typically respond within 12 hours. For urgent requests, please contact us directly.
Q: What is your warranty policy?
A: We provide a one-year warranty on all products.
Q: Can I order samples?
A: Yes, we welcome sample orders to evaluate our quality and service.
Q: How do I place a bulk order?
A: Provide specifications → Receive proforma invoice → Payment → Production → Delivery.
Q: What shipping methods do you offer?
A: We work with major carriers (DHL, UPS, FedEx, TNT) and offer economical options (air/sea cargo).
Q: How do you ensure product quality?
A: We implement rigorous testing at multiple stages with 100% final quality control.
Q: Do you provide OEM services?
A: Yes, we offer professional OEM solutions.
Q: What payment methods do you accept?
A: T/T (bank transfer), L/C, and PayPal.
Q: What after-sales support do you provide?
A: We offer technical support, firmware updates, and RMA services.

Product Highlights

1.6 Inch TFT Round Display 400x400 IC ST77903 QSPI Interface IPS Screen with Capacitive Touch Key Specifications Attribute Value Display Type IPS TFT LCD Display Size 1.6 inch Resolution 400×400 (RGB) Driver IC ST77903 Interface QSPI Brightness 1800 cd/m² Viewing Angle All directions Touch Panel Capacitive touch screen Operating Temperature -20°C to +70°C Dimensions 42.94 × 45.89 × 2 mm Technical Details Display Mode: Transmissive Color Depth: 262K colors Backlight: White 6
