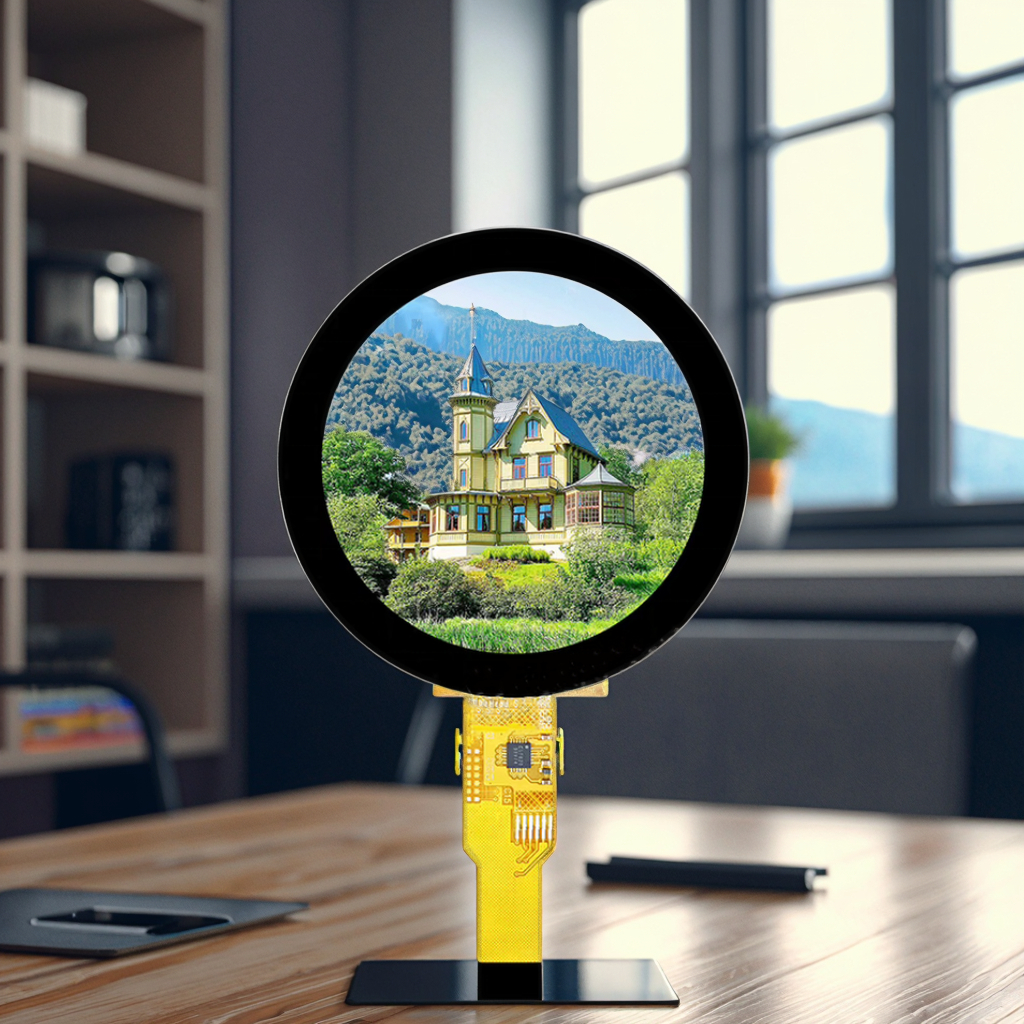

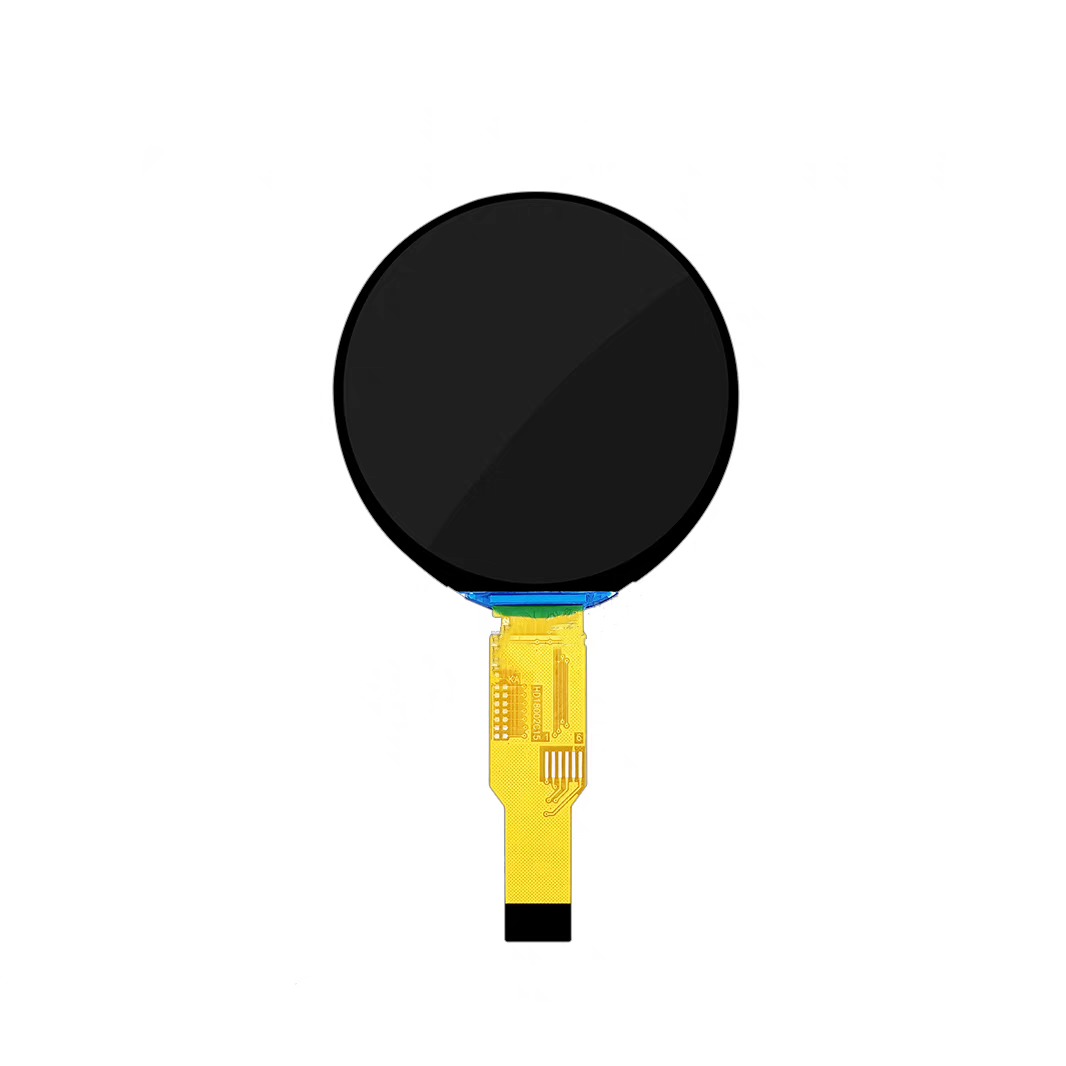

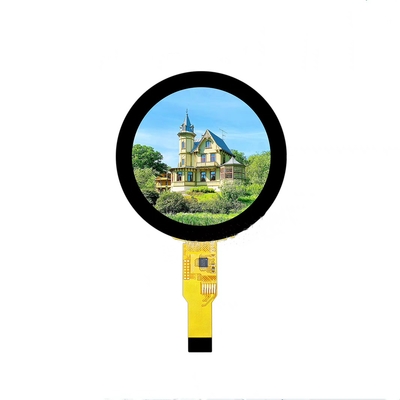

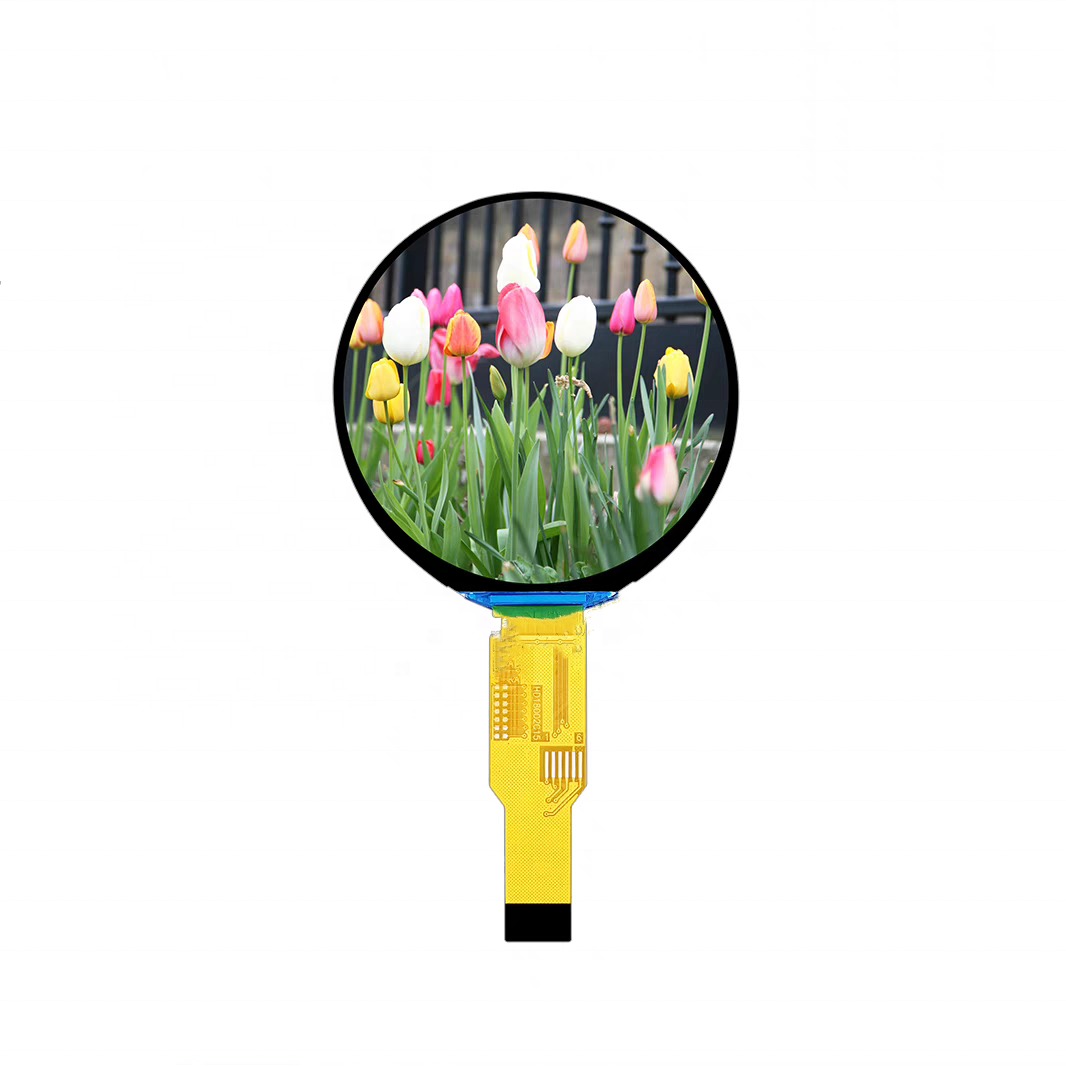

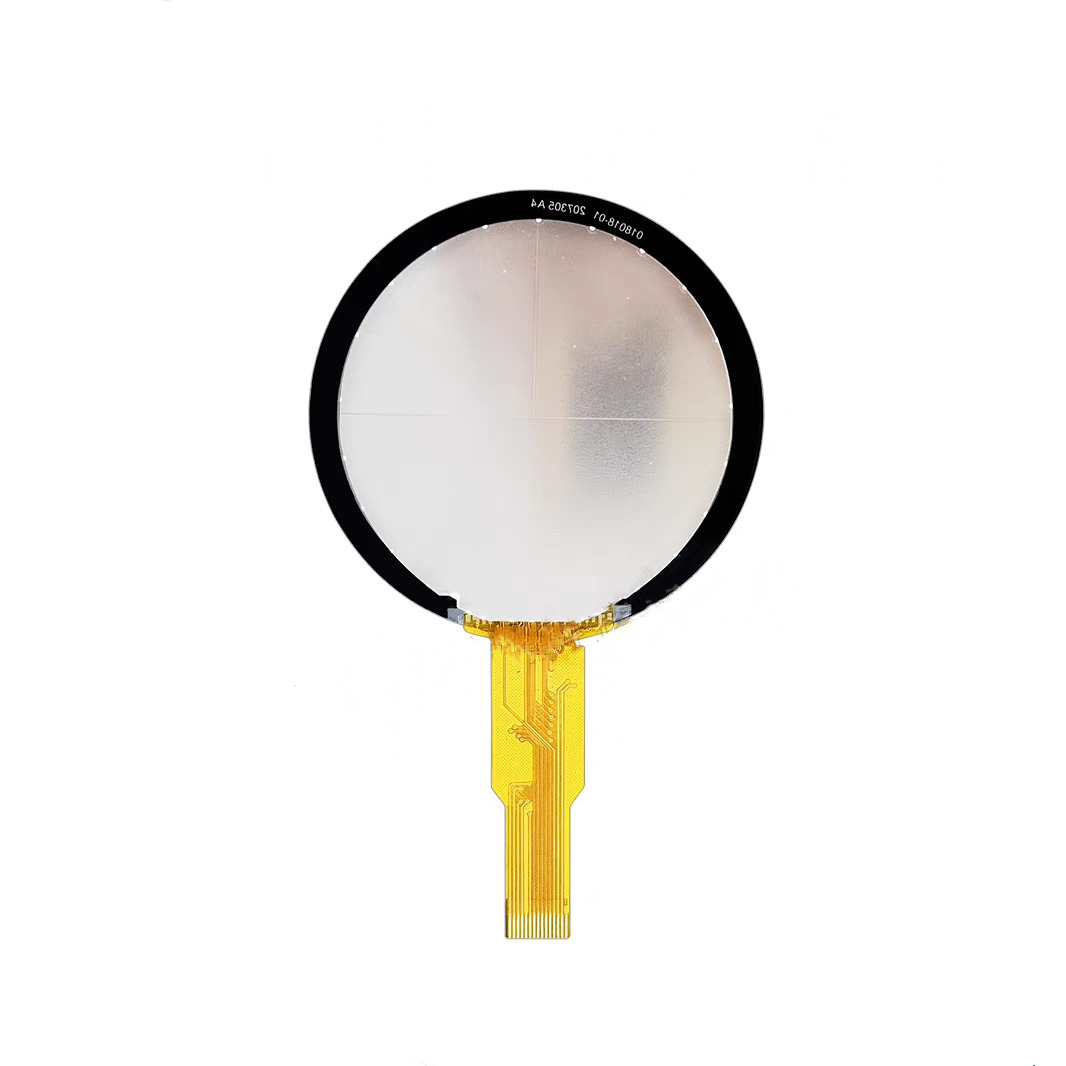

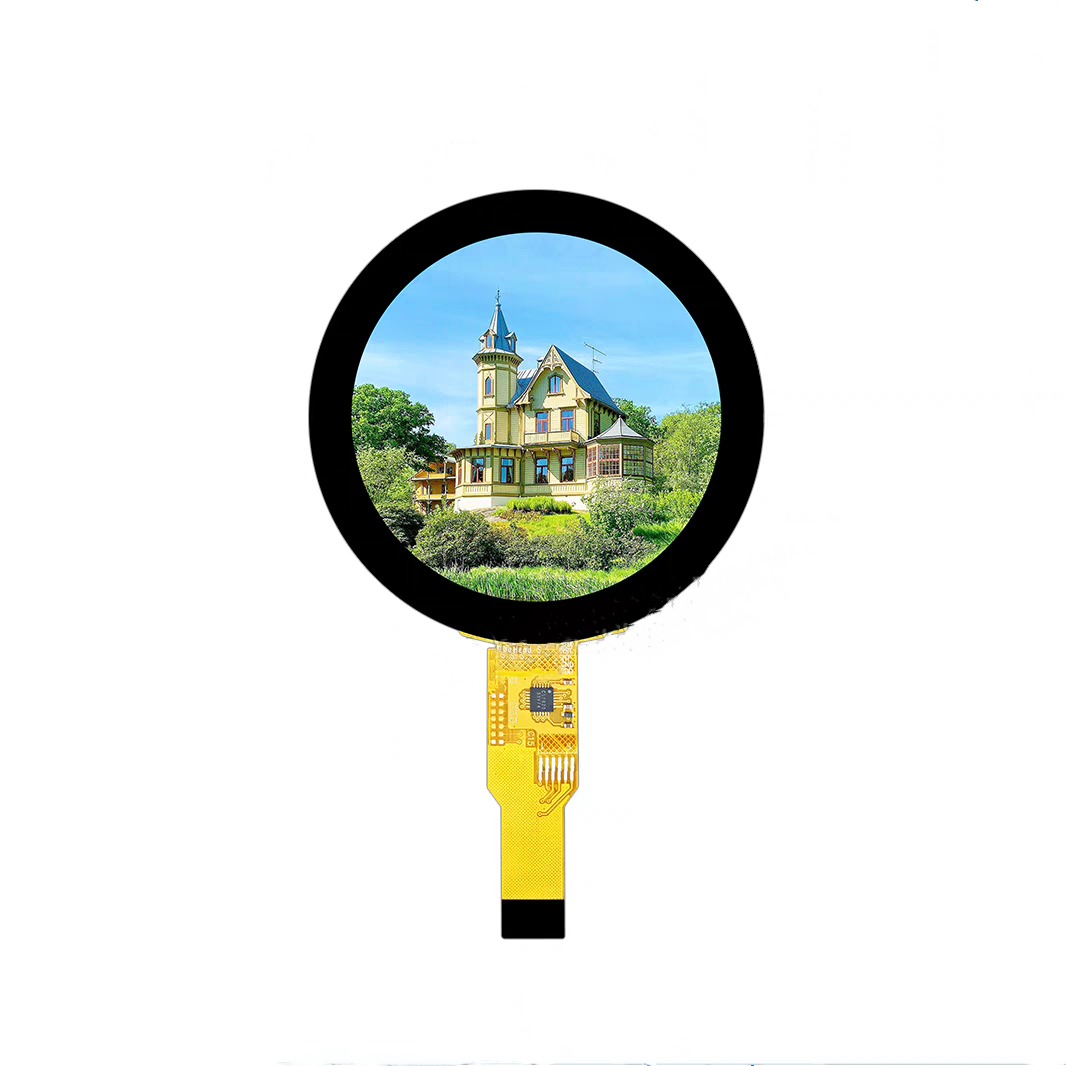

1.8 Inch Round IPS LCD Display 360x360 Resolution ST77916 Driver
Product Details
| Display Type: | IPS | Display Size: | 1.8 Inch |
|---|---|---|---|
| Backlight Type: | LED, White LED | Resolution: | 360x360 |
| Brightness: | 1800 | Operating Temperature: | -20 To 70 |
| Display Mode: | Transmissive | Number Of Colors: | 262K |
| Outline Dimensions: | 48.08x49.95x1.96mm | Driver IC: | ST77916 |
| Interface Type: | QSPI | Backlight: | White 6 LED Series |
| Operating Voltage: | +2.8V~3.3V | Viewing Angle: | All O'clock |
| Storage Temperature: | -30°C~+80°C | ||
| Highlight |
1.8 inch round IPS LCD display,360x360 resolution round display,ST77916 driver round LCD |
||
Product Description
| Attribute | Value |
|---|---|
| Type | IPS |
| Display Size | 1.8 inch |
| Resolution | 360×360 |
| Brightness | 1800 cd/m² |
| Operating Temperature | -20°C to +70°C |
| Driver IC | ST77916 |
| Interface Type | QSPI |
| Viewing Angle | All directions |
| Outline Dimensions | 47.99×49.86×1.96 mm |
- High-quality IPS TFT LCD display with 360×360 resolution
- ST77916 driver IC with QSPI interface for efficient data transfer
- Wide operating temperature range (-20°C to +70°C)
- Excellent viewing angles from all directions
- Bright 1800 cd/m² LED backlight
- Compact dimensions (47.99×49.86×1.96 mm)
- Optional touch panel available
- 30-day replacement policy for defective products
- Custom logo and model number printing available
- Competitive shipping rates with reliable carriers
- Professional technical support team
- 100% quality inspection before shipment
- 24-hour customer service response
Product Highlights
1.8 Inch TFT LCD Round IPS Display High-Resolution 360x360 Smart Wearable Display with ST77916 QSPI Interface Product Specifications Attribute Value Type IPS Display Size 1.8 inch Resolution 360×360 Brightness 1800 cd/m² Operating Temperature -20°C to +70°C Driver IC ST77916 Interface Type QSPI Viewing Angle All directions Outline Dimensions 47.99×49.86×1.96 mm Key Features High-quality IPS TFT LCD display with 360×360 resolution ST77916 driver IC with QSPI interface for
