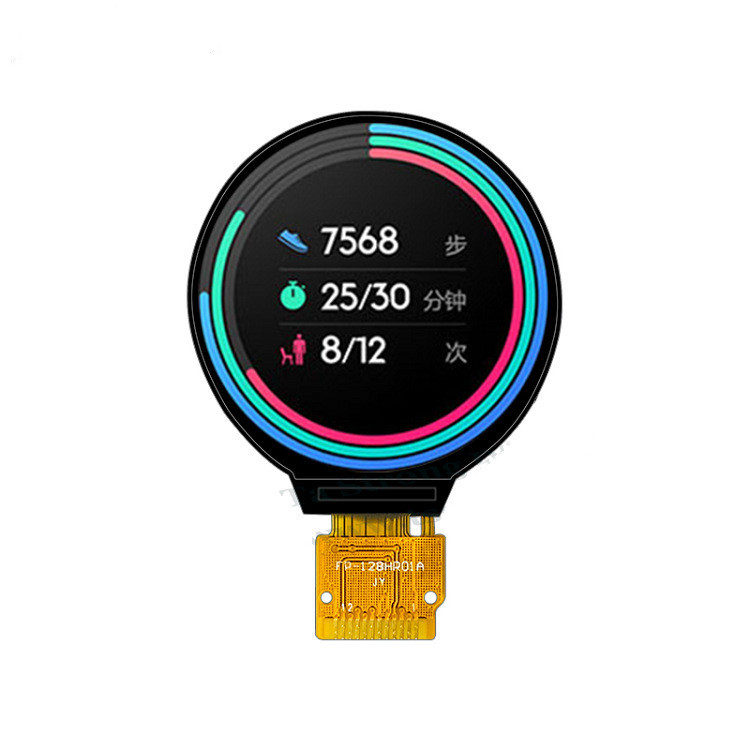

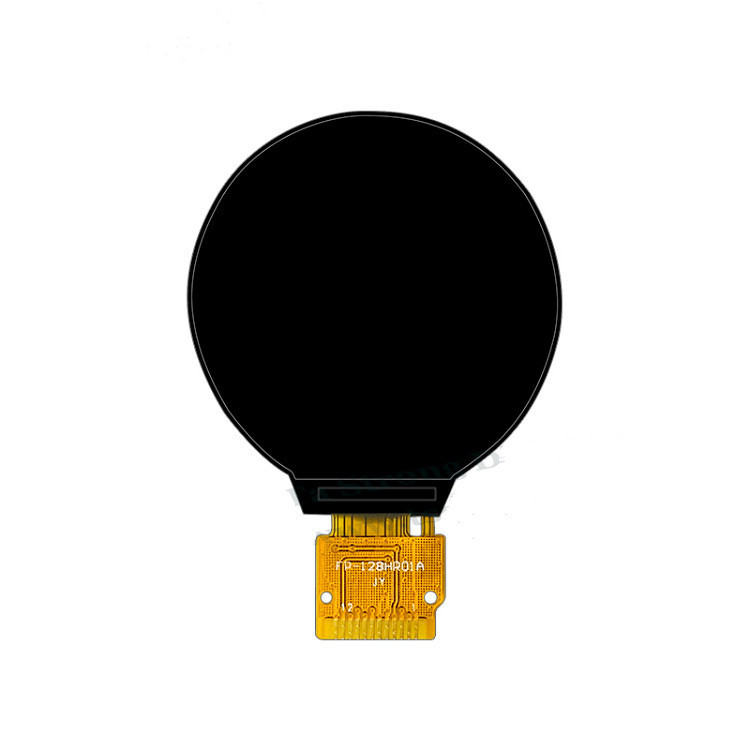

1.28 Inch Round TFT LCD Display 240x240 SPI GC9A01 Driver IC
Product Details
| Display Type: | 1.28inch TFT LCD | Display Mode: | Transmissive |
|---|---|---|---|
| Resolution: | 240*(RGB)*240 | Number Of Colors: | 262K |

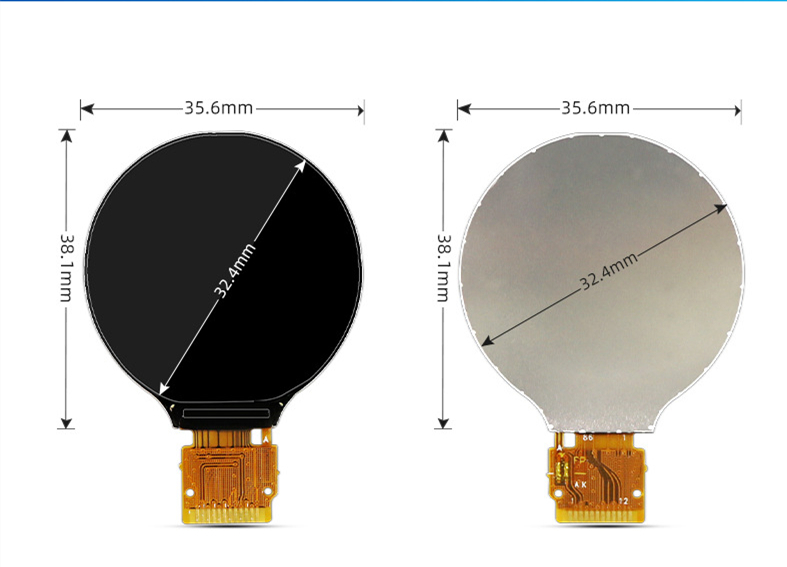

| Outline Dimensions: | 38.1*35.6*1.55 Mm | Driver IC: | GC9A01 |
| Interface Type: | 4 Line Spi | Backlight Type: | White 2LED |
| Operating Voltage: | +2.8V~3.3V | Viewing Angle: | Free View |
| Operating Temp: | -20°C~+70°C | Storage Temp: | -30°C~+80°C |
| PIN: | 15 | Display Size: | 1.28 Inch |
| Backlight: | White LED | ||
| Highlight |
1.28 inch round TFT LCD display,240x240 SPI LCD screen,GC9A01 driver IC display |
||
Product Description
| Attribute | Value |
|---|---|
| Type | TN |
| Display Size | 1.28 inch |
| Supplier Type | LCD Panel |
| Display & LCD Type | 240* RGB *240 |
| Viewing Direction | Free view |
| Interface Type | SPI |
| Touch Panel | Optional |
| Outline Dimensions (mm) | 35.6×38.1×1.55mm |
| Driver IC | GC9A01 |
| Backlight Type | White LED |
| PIN | 15 |
| Display Type | 1.28inch TFT LCD GC9A01 |
| Display Mode | Transmissive |
| Resolution | 1.28" 240*(RGB)*240 |
| Number of Colors | 262K |
| Outline Dimensions | 38.1×35.6×1.55 mm |
| Interface Type | 4 Line SPI |
| Backlight | White 2LED |
| Operating Voltage | +2.8V~3.3V |
| Operating Temperature | -20°C~+70°C |
| Storage Temperature | -30°C~+80°C |
- Replacement within 30 days after shipment for product issues
- Custom logo printing and model number labeling available
- Established shipping partnerships with discounted rates
- Professional technical support and after-sales service
- 100% inspection and testing before shipment
- 24-hour response time for customer inquiries
2) We'll send a Proforma Invoice for approval
3) Production begins upon payment confirmation
4) Delivery as specified in the invoice
Product Highlights
Factory Price 1.28 Inch TFT LCD Round Display 240*240 Screen with GC9A01 Driver IC Product Specifications Attribute Value Type TN Display Size 1.28 inch Supplier Type LCD Panel Display & LCD Type 240* RGB *240 Viewing Direction Free view Interface Type SPI Touch Panel Optional Outline Dimensions (mm) 35.6×38.1×1.55mm Driver IC GC9A01 Backlight Type White LED PIN 15 Technical Details Display Type 1.28inch TFT LCD GC9A01 Display Mode Transmissive Resolution 1.28" 240*(RGB)*240
