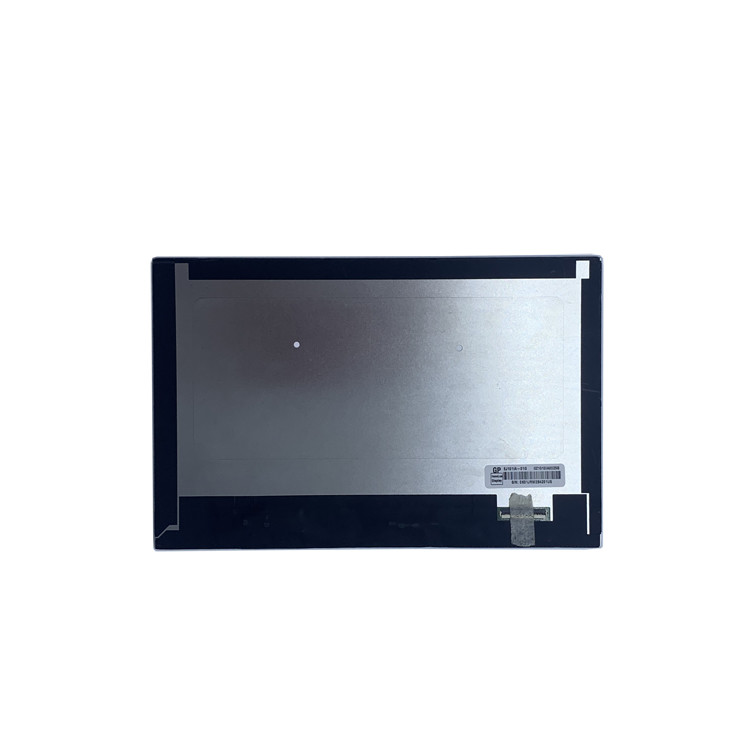

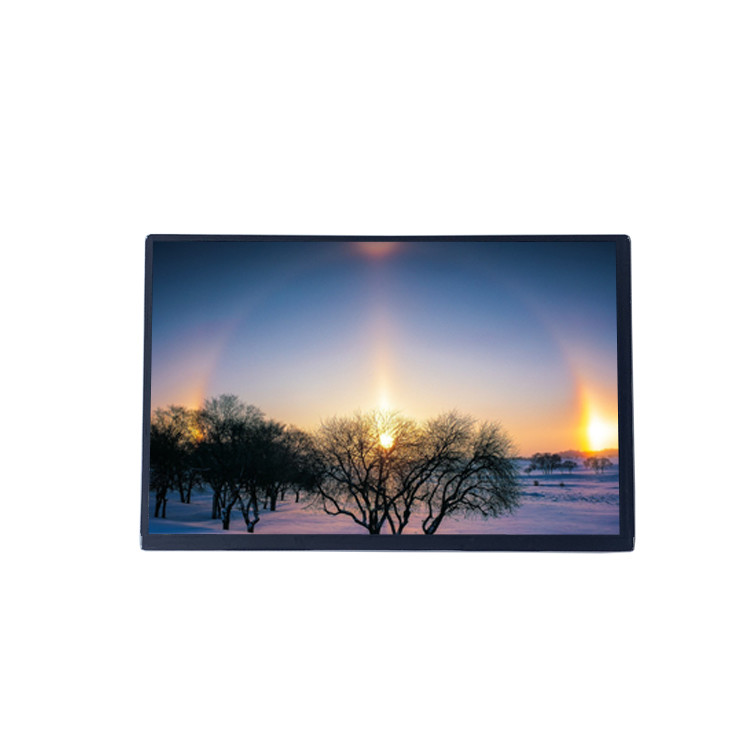

LED 10.1 Inch Full Hd IPS LCD Module Transmissive Normally 40pin LVDS TFT Interface
Product Details
| Backlight Technology: | LED | Luminace: | 350 Cd/m2 |
|---|---|---|---|
| Tft Interface: | 40pin LVDS | Model Size: | 10.1 Inch |
| Operating Temp: | -20 ~ +70 ℃ | Display Mode: | IPS / Transmissive / Normally Black |
| Storage Temp: | -30 ~ +80 ℃ | Material: | Glass |
| Highlight |
10.1 inch full hd ips lcd,ips lcd module transmissive normally,led ips lcd module |
||
Product Description
10.1 Inch IPS LCD IPS Transmissive Normally Black 40pin LVDS LED 350 Cd/M2 TFT Interface
Product Description:
The display is equipped with a TFT interface that uses a 40pin LVDS to ensure smooth and reliable communication between the display and the device it is connected to. It also has a LED backlight technology that provides a bright, clear display while consuming less power than traditional backlight technologies.
The IPS LCD Display is built to withstand a wide range of operating temperatures, from -20 to +70 ℃, making it suitable for use in a variety of environments. Whether it's in a hot, humid location or a cold, dry one, this display will function perfectly.
Overall, the IPS LCD Display is a reliable and high-quality option for anyone looking for a 10.1 inch TFT LCD display. With its excellent resolution, contrast ratio, and backlight technology, it provides a clear and vivid display that is sure to impress. Its robust design and ability to operate in extreme temperatures make it a great choice for a wide range of applications, from industrial equipment to consumer electronics.
Features:
- Product Name: IPS LCD Display
- Resolution: 1280x800
- Model Size: 10.1 Inch
- Luminance: 350 Cd/m2
- Material: Glass
- Operating Temp: -20 ~ +70 ℃
- Color: Black
- Interface: 40pin LVDS
Technical Parameters:
| Model Size | 10.1 Inch |
| Display Mode | IPS / Transmissive / Normally Black |
| Lcd Active Area | 216.96(W) × 135.60(H) Mm |
| Storage Temp | -30 ~ +80 ℃ |
| Drive IC | S-IC: ILI6192, G-IC:ILI5801 |
| Outline Dimension | 223.95×144.24×1.066mm |
| Resolution | 1280x800 |
| Operating Temp | -20 ~ +70 ℃ |
| Luminace | 350 Cd/m2 |
| Material | Glass |
Applications:
The IPS LCD Display is a versatile product that can be used in a variety of occasions and scenarios. Its 40pin LVDS interface ensures a fast and reliable connection to your device. It also features a landscape panel, making it perfect for use in applications that require a wider display.
The display mode of this product is IPS / Transmissive / Normally Black, providing you with a clear and vibrant picture. This makes it an ideal choice for applications that require high-quality visuals, such as gaming, photography, and video editing. The LED backlight technology ensures that the colors are displayed accurately, with a rich and deep color black.
The operating temperature range of this product is -20 ~ +70 ℃, making it suitable for use in a variety of environments. It can be used in outdoor applications, such as digital signage, as well as indoor applications, such as kiosks and POS systems. The storage temperature range is -30 ~ +80 ℃, ensuring that the product is protected during transportation and storage.
The EJ101IA-01G IPS LCD Display is a reliable and high-quality product that is perfect for a wide range of applications. With a supply ability of 300k per month, we can ensure that you receive your order promptly. The product is packed in a carton for safe transportation, and the delivery time is 7-15 working days. Payment can be made via T/T, providing you with a secure and convenient payment option.
FAQ:
Q: What is the brand name of the product?
A: The brand name of the product is OEM.
Q: What is the model number of the product?
A: The model number of the product is EJ101IA-01G.
Q: Where is the product manufactured?
A: The product is manufactured in China.
Q: What certifications does the product have?
A: The product has ROHS certification.
Q: What is the minimum order quantity for the product?
A: The minimum order quantity for the product is 1 piece.
Q: What is the price of the product?
A: The price of the product is negotiated.
Q: How is the product packaged?
A: The product is packaged in carton packing.
Q: What is the delivery time for the product?
A: The delivery time for the product is 7-15 working days.
Q: What are the payment terms for the product?
A: The payment terms for the product are T/T.
Q: What is the supply ability of the product?
A: The supply ability of the product is 300k per month.
