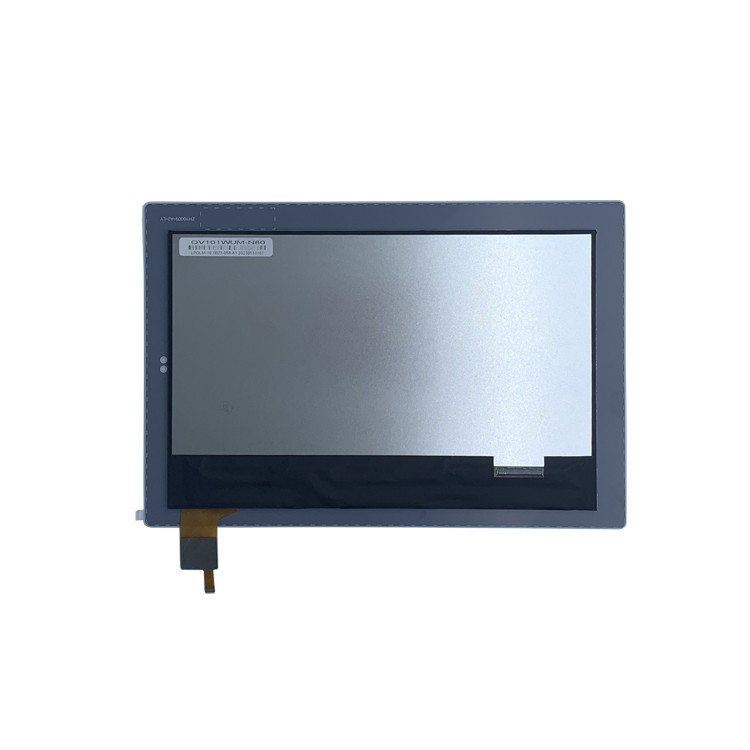

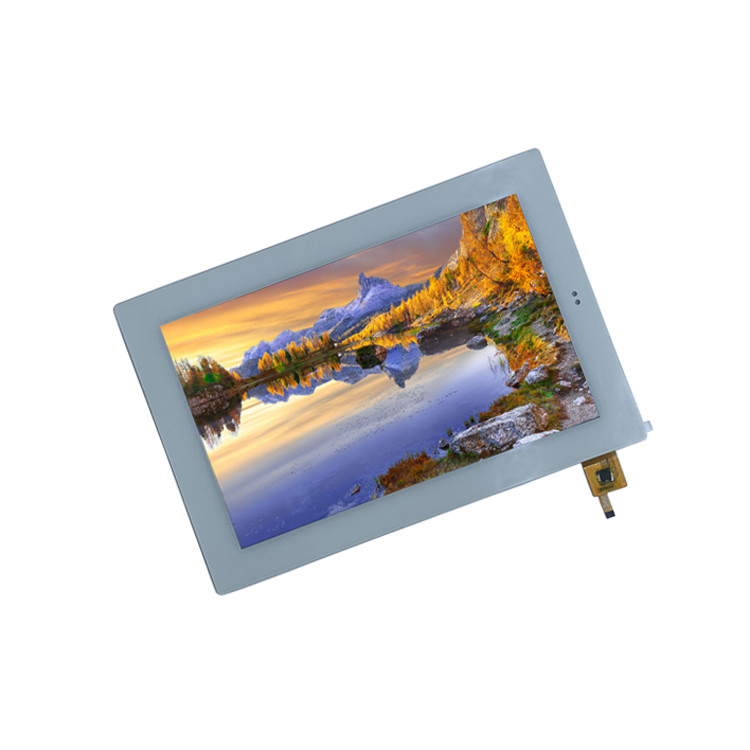

10.1 Inch TFT LCD Capacitive Touchscreen 1920x1200 Full Viewing Angle Smart Tft Display
Product Details
| Touch: | Capacitive Touch Screen | Contrast Ratio: | 900:1 |
|---|---|---|---|
| Interface: | 45Pin LVDS | Aspect Ratio: | 16:9 |
| Resolution: | 1920x1200 | Ctp Driver Ic: | GT928 |
| Input Voltage: | 3.3V | Viewing Direction: | All O'clock |
| Highlight |
tft lcd capacitive touchscreen 1920x1200,10.1 inch tft lcd capacitive touchscreen,10.1 lcd tft capacitive touchscreen |
||
Product Description
10.1 Inch 1920x1200 Resolution Capacitive Touch Screen Full Viewing Angle Panel
Product Description:
With a contrast ratio of 900:1, this display provides excellent color reproduction and deep blacks, ensuring that your content is displayed with stunning clarity. The module size of 222*172*2.4mm makes it easy to integrate into a wide range of products, and the 500cd/m2 luminnance ensures that your content is visible even in bright environments.
The IPS LCD display provides a wide viewing angle of up to 178 degrees, ensuring that your content is visible from almost any angle. And with an input voltage of 3.3V, this display is easy to power, making it an excellent choice for a wide range of applications.
Overall, our TFT LCD Capacitive Touchscreen is a high-quality, versatile product that is perfect for those who demand high performance and flexibility. Whether you're looking for a display for gaming, education, retail or any other interactive application, this product is sure to meet your needs!
Features:
- Product Name: TFT LCD Capacitive Touchscreen
- Tft Active Area: 216.96(H) ×135.60(V)mm
- Interface: 45Pin LVDS
- Resolution: 1920x1200
- Viewing Direction: All O'clock
- Touch: Capacitive Touch Screen
- 10.1 inch TFT LCD
- 1920x1200 resolution
Technical Parameters:
| Viewing Direction | All O'clock |
| Contrast Ratio | 900:1 |
| Input Voltage | 3.3V |
| Resolution | 1920x1200 |
| Brightness | 500cd/m2 |
| Interface | 45Pin LVDS |
| Touch | Capacitive Touch Screen |
| Aspect Ratio | 16:9 |
| Tft Active Area | 216.96(H) ×135.60(V)mm |
| Ctp Driver Ic | GT928 |
Applications:
The TFT LCD capacitive touch screen has a TFT active area of 216.96(H) ×135.60(V)mm, making it a great fit for various display applications. With an interface of 45Pin LVDS and viewing direction of all O'clock, this product is versatile and easy to integrate. The brightness of 500cd/m2 makes it a great fit for bright environments with high luminnance of 330nits.
The ZH101WUM-N80V.C 10.1 inch TFT LCD capacitive touch screen can be used in various scenarios, including but not limited to:
- Industrial Automation: With its durability and touch screen capabilities, this product is perfect for automation control panels and HMI systems.
- Medical Equipment: The capacitive touch screen allows for easy and hygienic operation in medical environments.
- Kiosk and Vending Machines: With its high brightness and touch screen capabilities, this product is perfect for outdoor kiosks and vending machines.
- Gaming and Entertainment: The touch screen capabilities make it a great fit for gaming and entertainment systems.
With a module size of 222*172*2.4mm and a high supply ability, the ZH101WUM-N80V.C 10.1 inch TFT LCD capacitive touch screen is a versatile and reliable product that can be used in a variety of industries and applications. Contact us today to learn more about this product and how it can be integrated into your next project.
FAQ:
Q: What is the brand name of the TFT LCD Capacitive Touchscreen product?
A: The brand name of this product is OEM.
Q: What is the model number of the TFT LCD Capacitive Touchscreen product?
A: The model number of this product is ZH101WUM-N80V.C.
Q: Where is the TFT LCD Capacitive Touchscreen product manufactured?
A: This product is manufactured in China.
Q: Does the TFT LCD Capacitive Touchscreen product have any certifications?
A: Yes, this product has ROHS certification.
Q: What is the minimum order quantity for the TFT LCD Capacitive Touchscreen product?
A: The minimum order quantity for this product is 1 piece.
Q: What is the packaging and delivery time for the TFT LCD Capacitive Touchscreen product?
A: The packaging for this product is carton packing and the delivery time is 7-15 working days.
Q: What are the payment terms and supply ability for the TFT LCD Capacitive Touchscreen product?
A: The payment terms for this product are T/T and the supply ability is 300k per month.
Q: Is the price of the TFT LCD Capacitive Touchscreen product negotiable?
A: Yes, the price of this product can be negotiated.
