220Cd/M2 Small LCD Touch Screen 240 X 320 TFT LCD Capacitive Touchscreen ST7789 Driver
Product Details
| Driver Ic: | ST7789 | Tft Lcd Type: | 2.4”TFT |
|---|---|---|---|
| Display Mode: | TN/Transmissive | Outline Size: | 42.72*60.26*2.6 Mm |
| Dot Arrangement: | 240×3(RGB)×320 Dots | Interface: | 4 Line-SPI Interface |
| Operation Temp: | -20~ +70℃ | Screen Size: | 2.4 Inches |
| Highlight |
220cd/m2 small lcd touch screen,tft lcd capacitive touchscreen st7789,tft lcd capacitive touchscreen st7789 driver |
||
Product Description

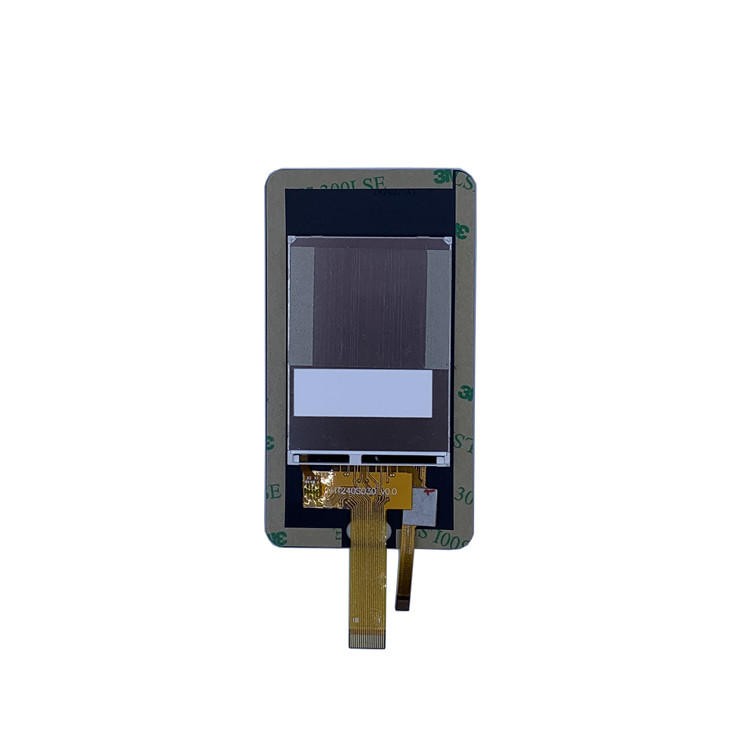

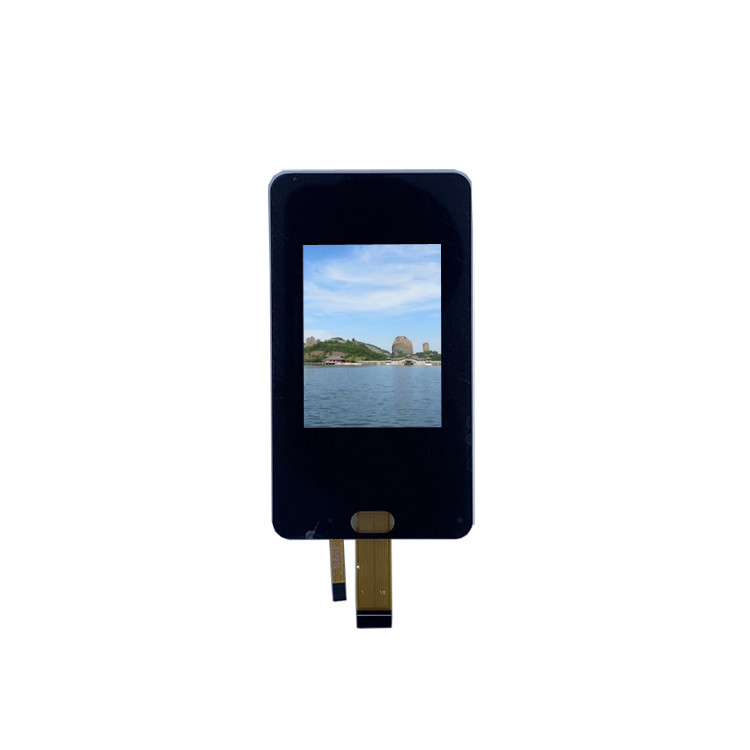

2.4 Inch 240x320 TFT LCD Capacitive Touch Screen Panel With ST7789 Driver
Product Description:
The touch type is capacitive, providing a responsive and intuitive touch experience. This is perfect for electronic devices where touch functionality is essential. You can expect smooth swipes and accurate tap inputs with this product.
Our Small LCD Touch Screen can operate within a temperature range of -20~ +70℃, making it ideal for electronic devices that are used in various climates and conditions. You can be assured that this product will work efficiently even in harsh environments. Additionally, it can be stored within a temperature range of -30~ +80℃, providing assurance that it can be stored safely without the risk of damage.
With a 240x320 resolution, you can expect crisp and clear visual output. This is due to the TN display, which ensures that each pixel is sharp and defined. The luminance of this product is 220nits, providing adequate brightness in various lighting conditions.
Our Small LCD Touch Screen is the perfect addition for electronic devices that require a small screen but still demand high quality visual output. It's responsive touch functionality, and durable design ensures that it can withstand various environments and provide reliable performance.
Features:
- Product Name: Small LCD Touch Screen
- Brightness: 220 Cd/m² (luminance 220nits)
- Tft Lcd Type: 2.4”TFT
- Driver Ic: ST7789
- Operation Temp: -20~ +70℃
- Interface: 4 Line-SPI Interface (SPI, MCU interface)
- Touch Screen: Capacitive Touch Screen
Technical Parameters:
| Tft Active Area: | 36.72(H)*48.96(V) Mm |
| Operation Temp: | -20~ +70℃ |
| Dot Arrangement: | 240×3(RGB)×320 Dots |
| Driver Ic: | ST7789 |
| Tft Lcd Type: | 2.4 inch TFT |
| Storage Temp: | -30~ +80℃ |
| Viewing Angle: | 12 O'clock |
| Touch Type: | Capacitive |
| Brightness: | 220 Cd/m² (luminance 220nits) |
| Outline Size: | 42.72*60.26*2.6 Mm |
Applications:
If you need a display with a high resolution, the ZH240S030V.C model is a great choice. With a 240x320 resolution and dot arrangement of 240×3(RGB)×320 dots, images will be crisp and clear. Plus, the 2.4” TFT LCD type display is perfect for small devices that require a compact form factor.
Connecting the display to your project is easy thanks to the included driver IC ili9341 and support for both SPI and MCU interfaces. This makes it a versatile option for a range of projects, whether you're building a smartwatch, a video game console, or a digital camera.
When it comes to packaging and delivery, the ZH240S030V.C model is shipped in carton packing and has a delivery time of 7-15 working days. Payment terms are T/T, and the supply ability is 300k per month, so you can order with confidence.
Overall, the OEM ZH240S030V.C model is a great option for anyone looking for a small LCD touch screen display. With a high resolution, versatile connectivity options, and a compact form factor, it's perfect for a range of applications and scenarios.
FAQ:
A: The brand name of the Small LCD Touch Screen is OEM.
2. Q: What is the model number of the Small LCD Touch Screen?
A: The model number of the Small LCD Touch Screen is ZH240S030V.C.
3. Q: Where is the Small LCD Touch Screen manufactured?
A: The Small LCD Touch Screen is manufactured in China.
4. Q: Does the Small LCD Touch Screen have certification?
A: Yes, the Small LCD Touch Screen has ROHS certification.
5. Q: What is the minimum order quantity for the Small LCD Touch Screen?
A: The minimum order quantity for the Small LCD Touch Screen is 1 piece.
6. Q: What are the payment terms for ordering the Small LCD Touch Screen?
A: The payment terms for ordering the Small LCD Touch Screen are T/T.
7. Q: What is the packaging for the Small LCD Touch Screen?
A: The packaging for the Small LCD Touch Screen is carton packing.
8. Q: What is the delivery time for the Small LCD Touch Screen?
A: The delivery time for the Small LCD Touch Screen is 7-15 working days.
9. Q: What is the supply ability of the Small LCD Touch Screen?
A: The supply ability of the Small LCD Touch Screen is 300k per month.
10. Q: Is the price of the Small LCD Touch Screen negotiable?
A: Yes, the price of the Small LCD Touch Screen is negotiable.
