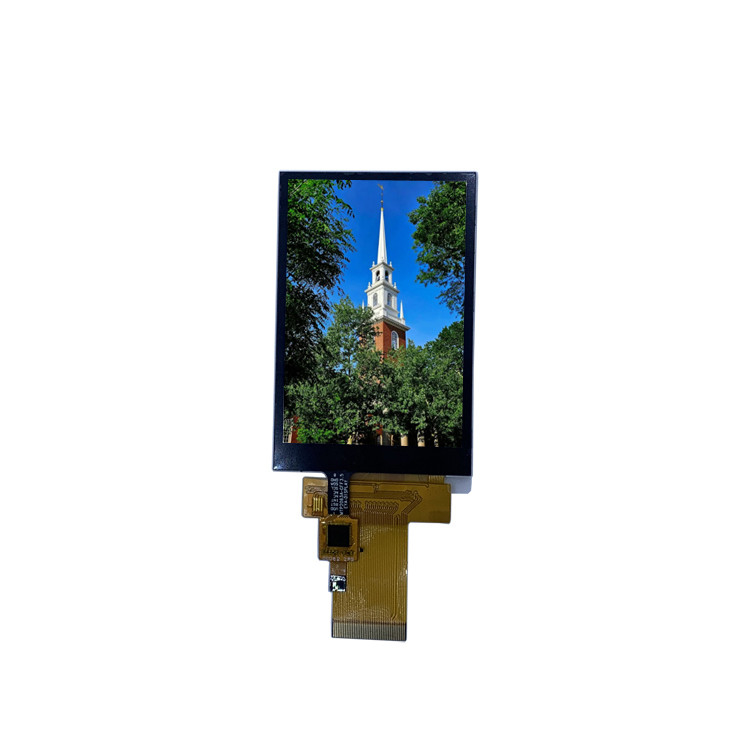

320x480 3.5 Inch TFT LCD Touch Screen With 5ms Response Time And 300 Nits Luminance
Product Description:
The display IC, ILI9488, ensures that the visuals are of the highest quality with excellent color reproduction and clarity. The 3.5" TFT LCD Touch Screen has a CTP structure of G+F+F, which guarantees high accuracy and responsiveness when using the touch screen feature.
The Touch IC GT911, which is incorporated into the design, ensures smooth and precise touch control. This means you can use the touch screen feature with confidence, knowing that the response time will be fast and accurate.
The 3.5" TFT LCD Touch Screen has been designed to operate in a wide range of temperatures, from -20 to +70 degrees Celsius. This makes it suitable for use in a variety of environments, from cold storage facilities to industrial settings.
The 3.5" TFT LCD Touch Screen with Capacitive Touch technology is ideal for a range of applications, including industrial control systems, medical devices, and consumer electronics. Its compact size makes it easy to integrate into existing products, while its advanced features make it a reliable and high-performing choice for any application that requires a touch screen display.
Features:
- Product Name: TFT LCD Touch Screen
- Resolution: 320x480
- Viewing Direction: 12 O'clock
- Ctp Structure: G+F+F
- Touch IC: GT911
- Luminance: 300
- Capacitive touch screen
- 8 /16bits parallel MCU interface & 3/4 wire SPI
- 320x480 resolution
Technical Parameters:
| Touch IC |
GT911 |
| Size |
3.5 Inch |
| Surface Treatment |
Anti-Glare |
| Backlight Type |
LED |
| Operation Temp |
-20 ~ +70 |
| Interface Type |
8 /16bits Parallel MCU Interface & 3/4 Wire SPI |
| Luminance |
300 |
| Resolution |
320x480 |
| Response Time |
5ms |
| Ctp Structure |
G+F+F |
| Driver IC |
ILI9488 |
| Storage Temp |
-30 ~ +80 |
| Max Touch Points |
5 Points |
FAQ:
Q: What is the brand name of this TFT LCD Touch Screen?
A: The brand name of this TFT LCD Touch Screen is OEM.
Q: What is the model number of this TFT LCD Touch Screen?
A: The model number of this TFT LCD Touch Screen is ZH350IT008V.C.
Q: Where is this TFT LCD Touch Screen manufactured?
A: This TFT LCD Touch Screen is manufactured in China.
Q: Does this TFT LCD Touch Screen have any certification?
A: Yes, this TFT LCD Touch Screen has ROHS certification.
Q: What is the minimum order quantity for this TFT LCD Touch Screen?
A: The minimum order quantity for this TFT LCD Touch Screen is 1 piece.
Q: What is the packaging detail for this TFT LCD Touch Screen?
A: The packaging detail for this TFT LCD Touch Screen is carton packing.
Q: What is the delivery time for this TFT LCD Touch Screen?
A: The delivery time for this TFT LCD Touch Screen is 7-15 working days.
Q: What are the payment terms for this TFT LCD Touch Screen?
A: The payment terms for this TFT LCD Touch Screen is T/T.
Q: What is the supply ability for this TFT LCD Touch Screen?
A: The supply ability for this TFT LCD Touch Screen is 300k per month.
Q: Is the price for this TFT LCD Touch Screen negotiable?
A: Yes, the price for this TFT LCD Touch Screen is negotiable.
