480x272 TFT LCD Display 500 Cd/M2 40pin RGB 4.3 Inch Tft Display 262K
Product Details
| Viewing: | 6 O'clock | Driver Lc: | ST7282 |
|---|---|---|---|
| Response Time: | 5ms | Display Scale: | 16:9 |
| Outline Dim: | 105.5mm*67.2mm*3.0mm | Interface: | 40pin RGB |
| Backlight Luminance: | 500 Cd/m2 | Active Area: | 95.04mm×53.856mm |
| Highlight |
480x272 tft lcd display,rgb 4.3 inch tft display,4.3 inch tft display 262k |
||
Product Description

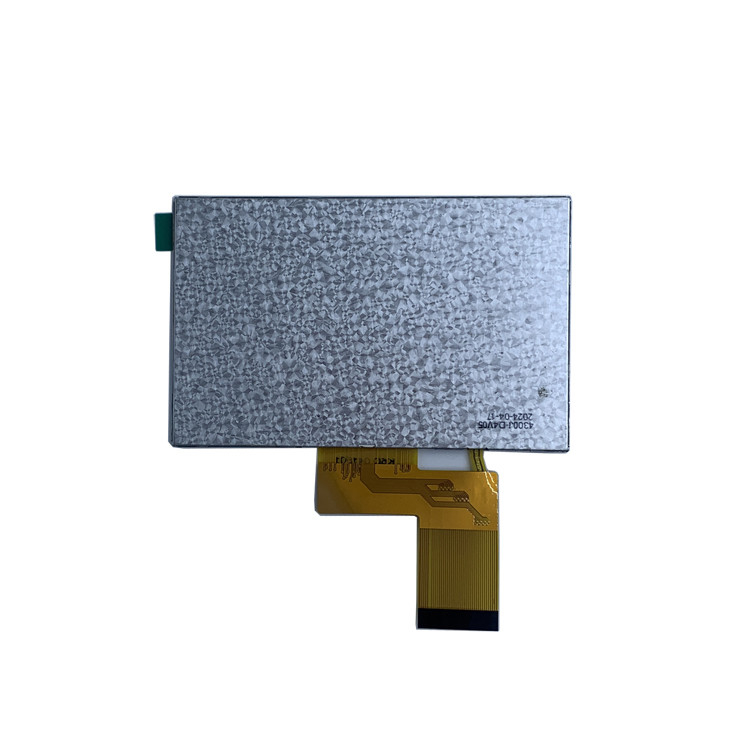

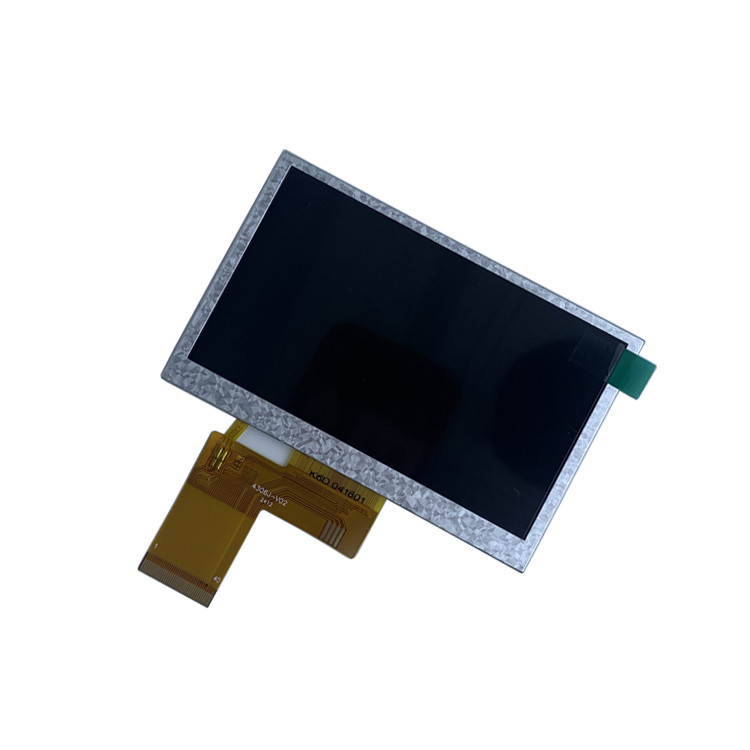

4.3 Inch 480x272 500 Cd/M2 TFT LCD Display 40pin RGB With 262K Rich Colors
Product Description:
The outline dimensions of this TFT LCD Display are 105.5mm x 67.2mm x 3.0mm, making it a compact and space-saving option for your projects. The display scale is 16:9, which delivers a widescreen experience that is perfect for displaying images and videos. The active area of this screen is 95.04mm x 53.856mm, which provides ample space for your content to be displayed.
With a color depth of 262K, this TFT LCD Display is capable of delivering vibrant and accurate colors that are sure to make your content pop. The interface for this screen is 40pin RGB, which makes it easy to connect to your device. Whether you are using an ESP32 board or any other device, this TFT LCD Display is sure to work seamlessly with it.
In summary, our TFT LCD Display product is a great option for those looking for a small LCD screen that delivers bright and clear visuals. With its compact size, widescreen display, and easy-to-use interface, this screen is perfect for a wide range of applications. Whether you are working on a DIY project or a commercial product, this TFT LCD Display is sure to meet your needs and exceed your expectations.
Features:
- Product Name: TFT LCD Display
- Display Colors: 16.7M
- Active Area: 95.04mm×53.856mm
- Size: 4.3 Inch
- Interface: 40pin RGB
- Display Scale: 16:9
- Resolution: 480x272
- Viewing Angle: All viewing angle
Technical Parameters:
| Interface | 40pin RGB |
| Size | 4.3 Inch |
| Display Scale | 16:9 |
| Color Depth | 262K |
| Backlight Luminance | 500 Cd/m2 |
| Display Colors | 16.7M |
| Response Time | 5ms |
| Driver Lc | ST7282 |
| Viewing | 6 O'clock |
| Outline Dim | 105.5mm*67.2mm*3.0mm |
Applications:
This TFT LCD Display product features a 40pin RGB interface, an active area of 95.04mm×53.856mm, a backlight luminance of 500 Cd/m2, a display scale of 16:9, and a color depth of 262K. The IPS LCD display ensures all viewing angles are clear and vivid.
This product is suitable for a variety of occasions and scenarios. It can be used for the Application ESP32 board, allowing for clear and detailed display of information. The all viewing angle feature makes it a good choice for presentations and meetings where multiple people need to view the screen. It can also be used in gaming and entertainment systems where a high-quality display is essential.
FAQ:
Q1. What is the brand name of the TFT LCD Display?
A1. The brand name of the TFT LCD Display is OEM.
Q2. What is the model number of the TFT LCD Display?
A2. The model number of the TFT LCD Display is ZH-043145C0-40-N.
Q3. What is the place of origin of the TFT LCD Display?
A3. The place of origin of the TFT LCD Display is China.
Q4. What certifications does the TFT LCD Display have?
A4. The TFT LCD Display has ROHS certification.
Q5. What is the minimum order quantity for the TFT LCD Display?
A5. The minimum order quantity for the TFT LCD Display is 1 piece.
Q6. What is the price of the TFT LCD Display?
A6. The price of the TFT LCD Display is negotiable.
Q7. What are the packaging details for the TFT LCD Display?
A7. The packaging details for the TFT LCD Display are carton packing.
Q8. What is the delivery time for the TFT LCD Display?
A8. The delivery time for the TFT LCD Display is 7-15 working days.
Q9. What are the payment terms for the TFT LCD Display?
A9. The payment terms for the TFT LCD Display are T/T.
Q10. What is the supply ability for the TFT LCD Display?
A10. The supply ability for the TFT LCD Display is 300k per month.
