480x272 TFT LCD Display 4.3 Inch Tft Lcd 500nits Ips Tft Display 40pin RGB Interface
Product Details
| Storage Temperature: | -30 ~ +80ºC | Outline Dimensions: | 105.5mm*67.2mm*3.0mm |
|---|---|---|---|
| Drive IC: | ILI6485/NV3047 | Number Of Dots: | 480*3(RGB)*272 |
| Main Material: | Liquid Crystal | Color: | 16.7M Color |
| Luminance: | 500nits | Pitch: | 0.5mm |
| Highlight |
480x272TFT LCD Display,4.3 inch tft lcd 500nits,ips tft display 40pin |
||
Product Description

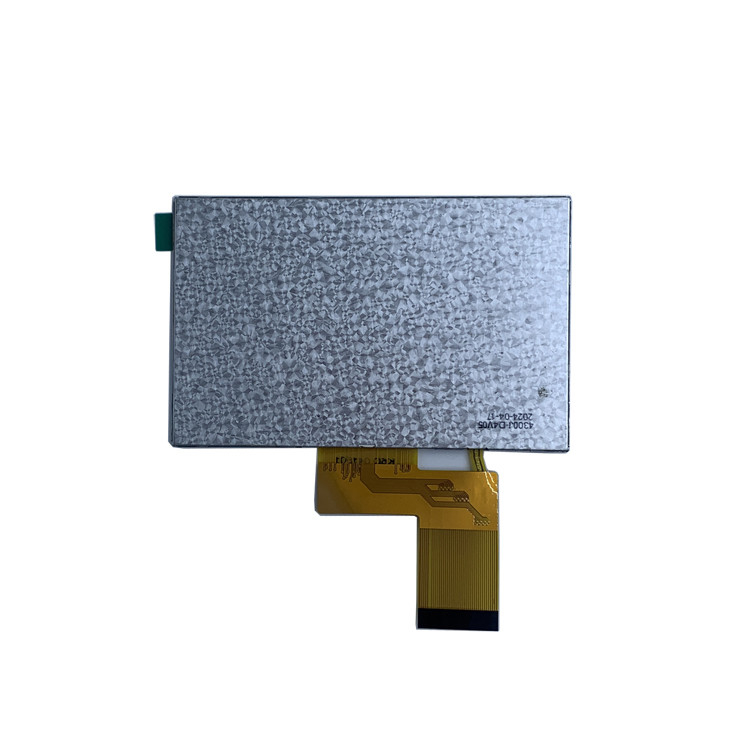

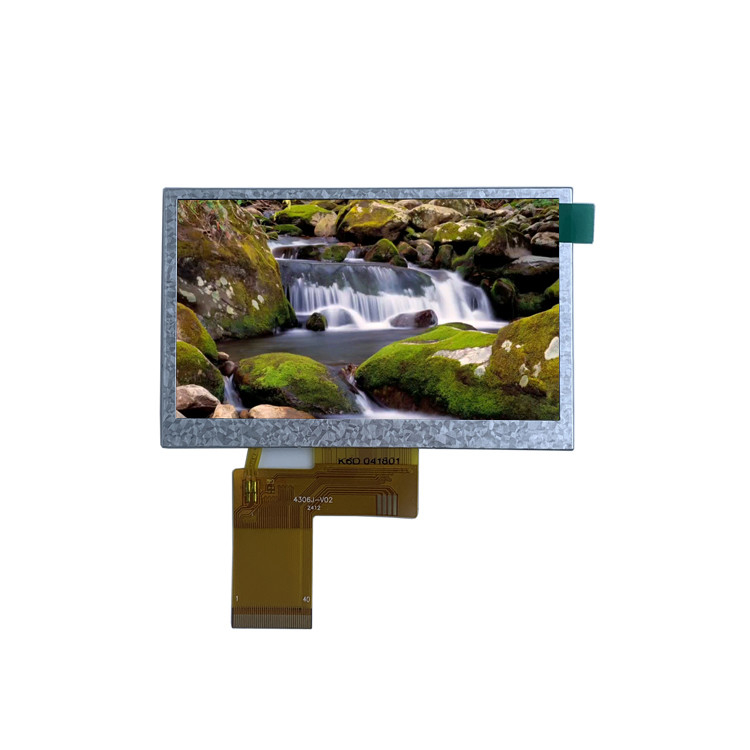

4.3 Inch 480x272 Resolution TFT LCD Display Luminance 500nits With 40pin RGB Interface
Product Description:
The main material used in the production of this display is liquid crystal, ensuring high-quality and reliable performance. With a color range of 16.7M, the display produces accurate and vibrant colors, making it perfect for a wide range of applications.
Depending on the specific model, the High Brightness TFT Display can come equipped with a touch screen, providing a more interactive and user-friendly experience. The touch screen feature is perfect for devices that require user input, such as tablets and smartphones.
The pitch of the display is 0.5mm, ensuring that the pixels are closely packed together, allowing for an even distribution of light across the screen. This results in a clearer and sharper image, further enhancing the visual experience.
The High Brightness TFT Display is an excellent choice for those looking for a high-quality and reliable display for their electronic devices. With its IPS panel, touch screen capabilities, and high brightness, this display is perfect for outdoor use and provides an exceptional visual experience.
Features:
- Product Name: High Brightness TFT Display
- Interface: 40pin RGB
- Operational Temperature: -20°C ~+70 °C
- Active Area: 95.04×53.856mm
- Main Material: Liquid Crystal
- Color: 16.7M Color
- Display Type: IPS panel
- Display Size: 4.3" TFT LCD
- Interface Type: 40pin RGB interface
Technical Parameters:
| Hs Code: | 9013803010 |
| Luminance: | 500nits |
| Main Material: | Liquid Crystal |
| Touch Screen: | Depends On Specific Model |
| Interface: | 40pin RGB |
| Operational Temperature: | -20°C ~+70 °C |
| Number Of Dots: | 480*3(RGB)*272 |
| Active Area: | 95.04×53.856mm |
| Drive IC: | ILI6485/NV3047 |
| Color: | 16.7M Color |
Applications:
OEM ZH-043145C0-40-N is a high brightness 4.3" TFT LCD display manufactured in China. It is certified by ROHS and has a minimum order quantity of 1 piece. The price is negotiable and packaging details include carton packing. Delivery time is 7-15 working days and payment terms are T/T. The display has a 40pin RGB interface and its specific model determines if it comes with a touch screen. The drive IC is either ILI6485 or NV3047. It has an operational temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C.
The high brightness TFT LCD display is versatile and can be used in various applications such as automotive, industrial control, multimedia, medical equipment, aviation, and security. Its wide range of operational temperatures makes it suitable for use in harsh environments. The 4.3" display size makes it ideal for use in portable electronic devices such as tablets and laptops.
Some of the scenarios where the high brightness TFT LCD display can be used include:
- Dashboard display in cars and trucks
- Control panel in industrial equipment
- Entertainment system in airplanes
- Medical equipment such as patient monitors
- Security systems such as surveillance cameras
- Interactive kiosks in public places
The possibilities are endless with the OEM ZH-043145C0-40-N high brightness TFT LCD display. It is a reliable and durable display that can withstand extreme temperatures and harsh environments. Get in touch to negotiate a price and place your order today!
FAQ:
Q1: What is the brand name of the high brightness TFT display?
A1: The brand name of the high brightness TFT display is OEM.
Q2: What is the model number of the high brightness TFT display?
A2: The model number of the high brightness TFT display is ZH-043145C0-40-N.
Q3: Where is the high brightness TFT display manufactured?
A3: The high brightness TFT display is manufactured in China.
Q4: Does the high brightness TFT display have any certifications?
A4: Yes, the high brightness TFT display is ROHS certified.
Q5: What is the minimum order quantity for the high brightness TFT display?
A5: The minimum order quantity for the high brightness TFT display is 1 piece.
Q6: How much time does it take to deliver the high brightness TFT display?
A6: The delivery time for the high brightness TFT display is 7-15 working days.
Q7: What are the payment terms for the high brightness TFT display?
A7: The payment terms for the high brightness TFT display is T/T.
Q8: What is the supply ability of the high brightness TFT display?
A8: The supply ability of the high brightness TFT display is 300k per month.
Q9: How is the high brightness TFT display packaged?
A9: The high brightness TFT display is packaged in carton packing.
Q10: Is the price of the high brightness TFT display negotiable?
A10: Yes, the price of the high brightness TFT display is negotiable.
