Detail Information

Type:	IPS	Display Size:	11.6 Inch
Supplier Type:	LCD Panel	Display & LCD Type:	1920* RGB *1080
Viewing Direction:	Free View	Interface Type:	EDP
Touch Panel:	Optional	Outline Dimemsions (mm):	263.4157.223.0 Mm (HVD)
Brightness:	450cd/m2	PIN:	30
Highlight:	11.6 inchLCD Display Module , LCD Display Module 1920 x 1080 , EDP Interface tft monitor lcd

Product Description

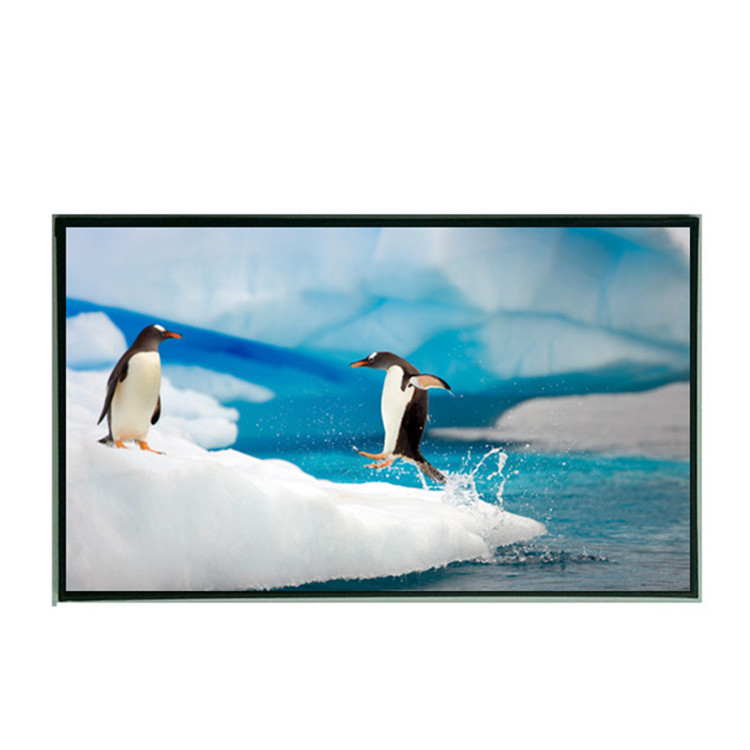

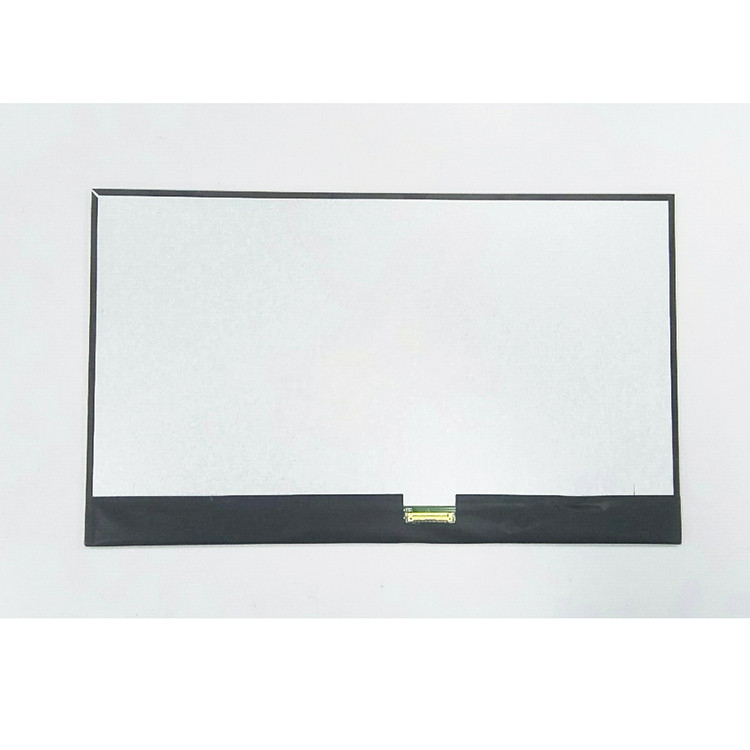

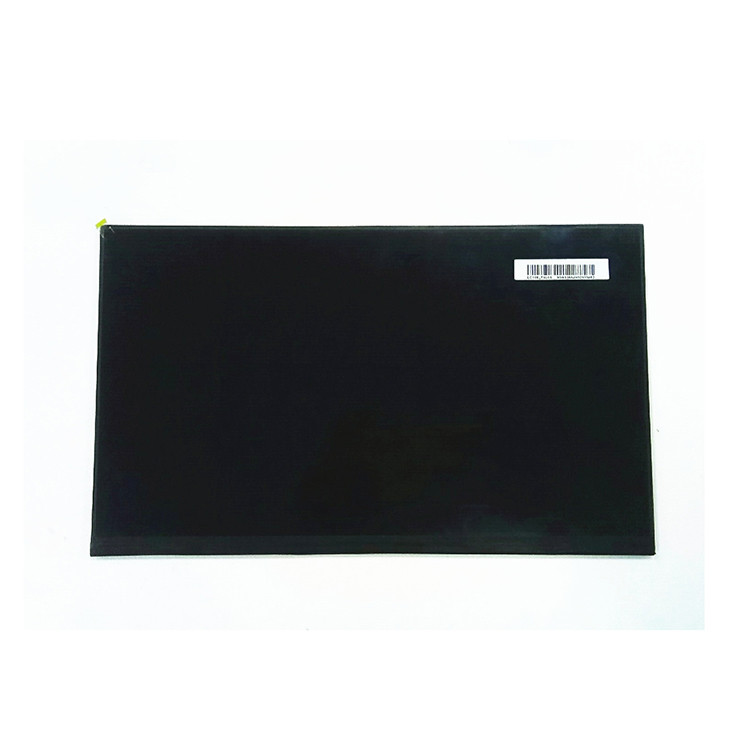

11.6 inch Monitor LCD Display with 1920* RGB *1080 Resolution and 30PIN EDP Interface

Product Description

1.Display Type:	116X40-193-01
2.Display mode:	Transmissive
3.Resolution:	11.6" 1920(RGB)1080
4. Number of colors:	262K , 45% NTSC

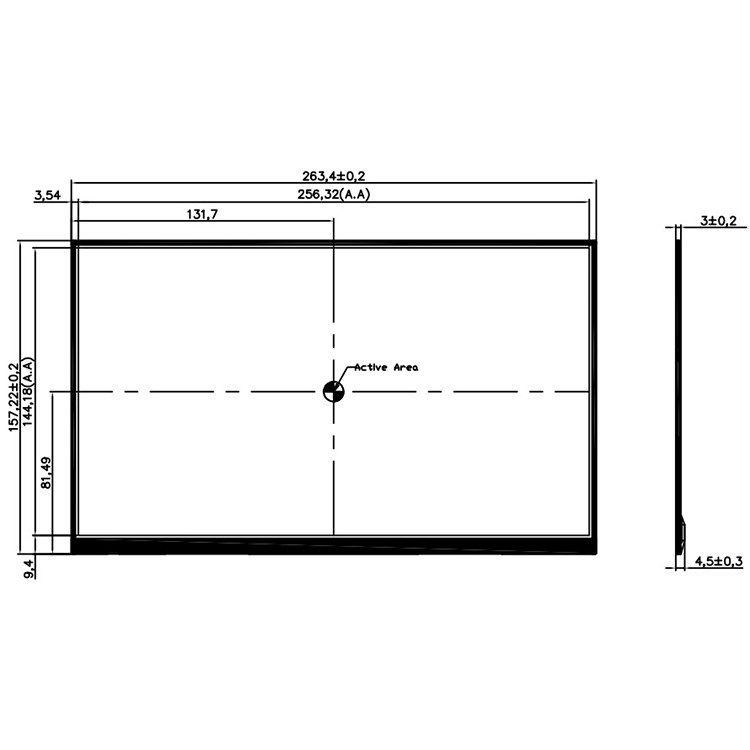

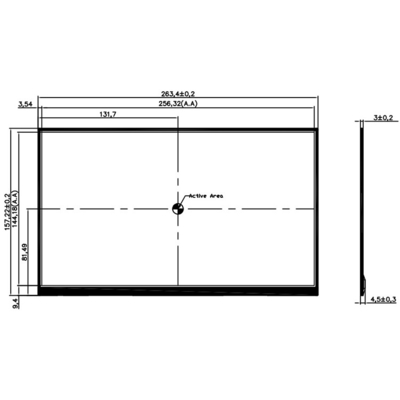

5.Outline Dimensions:	263.4x157.22x3.0 mm (H×V×D)
6.Brightness:	450nits

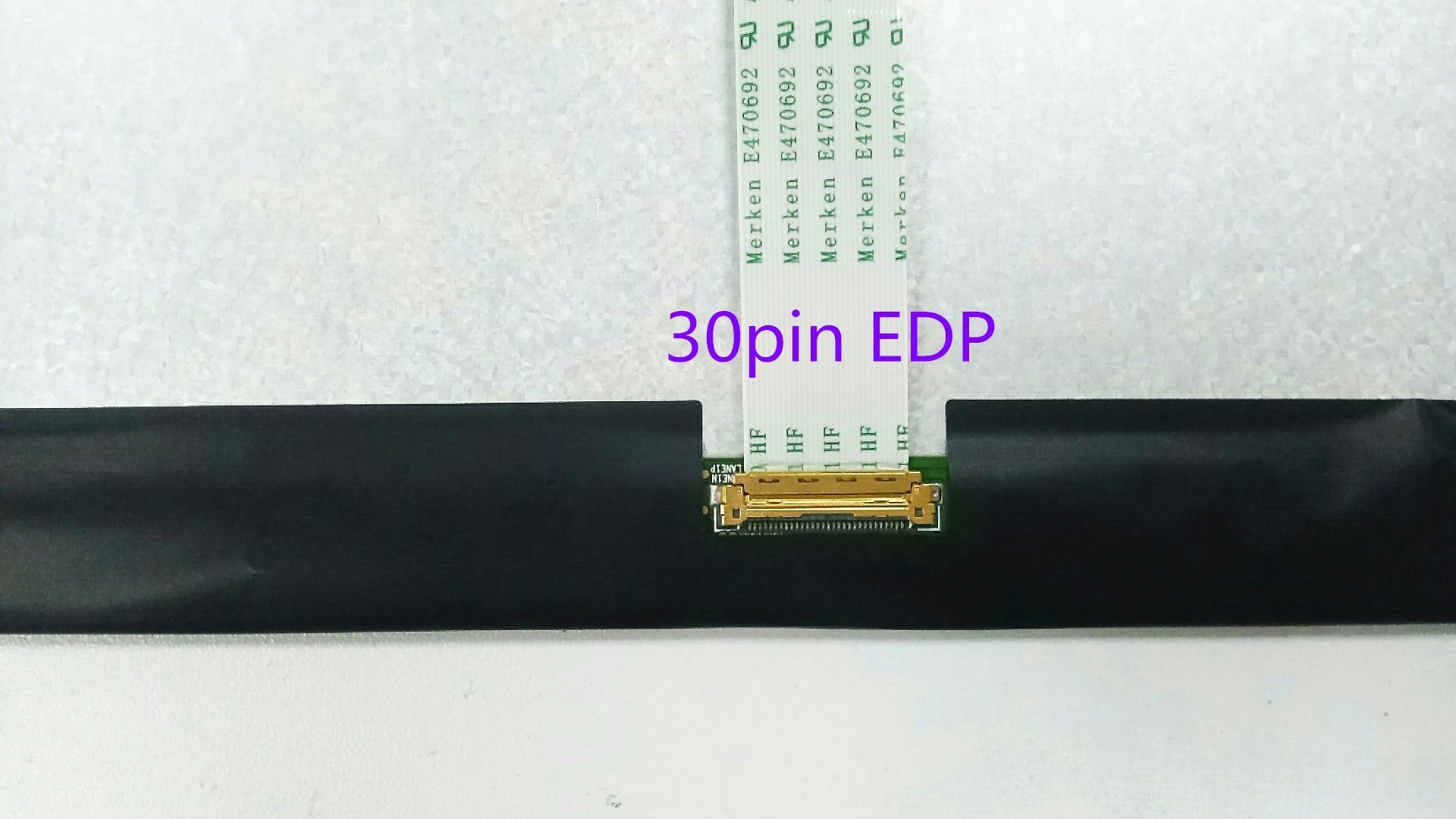

7.Interface Type:	30 pins EDP
8.Baclight:	WLED [10S4P]
9.Operating voltage:	12 V (Typ.)
10.Viewing Angle:	All View
11.Operating Temp:	-10°C~+60°C
12.Storage Temp:	-20°C~+70°C

Packaging & Shipping

Our Services

1. Replacement within 30 days after the shipment of products from us due to products' problems.
2. We can print your logo and stick your model No.on the cameras.
3. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good
discounts.
4. Professional technician supports. We have a good after-sales service team to solve your problems in time.
5.All goods will be inspected and tested before shipment.
6.Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us
by Trademanager or Email. It will be responded within 24 hours.

Company Profile

ZhuoHong Electronic Technology has been specializing in TFT LCD display and touch screen more than 10years. There are 90% of our business is custom made display modules for projects such as industrial devices, medical and smart home applications.Our mission is to provide customer one-stop solution. With LCD display and touch screen as our product center, great trust is built with our customers.

FAQ

A Q: When can i get the quotation?
A: We usually quote within 12 hours after we got your inquiry.
If it is very urgent, please call us or contact us via email, Skype or WhatsApp.

Q: What is your warranty?
A: We provide one year warranty.

Q: May i buy samples from you?
A: Yes! You are welcome to place sample order to test our superior quality and service.

Q: How to place bulk order?
A: 1) Tell us model number, quantity, color and other special requirements.
2) Proforma Invoice will be made and sent to you for approval
3) Production will be arranged once get your payment or deposit.
4) Goods will be delivered as stated on the Proforma Invoice.

Q: How will you deliver my goods to me?
A: We provide as many shipping options as possible, such as DHL, UPS, FEDEX, TNT AND EMS to enable our customers get their goods
rapidly at door. We also ship by economick method such as air cargo and sea cargo, direct line, air mail according to customers'
request.

Q: What about the quality of your product?
A: We provide unrivaled quality: very rigorous testing process for incoming quality control, input process quality control, and
final quanltiy control for every piece. We follow QC test procedure, and do 100% FQC to ensure your satisfication.

Q: Can you provide OEM service?
A: Yes! We can provide professional OEM service.

Q: What payment method do you accept?
A: T/T(bank transfer), L/C and paypal

Q: Do you have any after-sales service?
A: Yes! Our productt has professional after-sales service dept. Follow up R.M.A. Items service and upload product fireware and app
for you download.
If you have any technical questions with the goods, please feel freely to contact our technical support dept, or our sales
directly.

Tag:

Place of Origin:	Guangdong, China
Brand Name:	oem
Certification:	ROHS、ISO9001、CE
Model Number:	116X40-193-01
Document:	Product Brochure PDF

Minimum Order Quantity:	1pieces
Price:	Negotiated
Packaging Details:	Carton Packing
Delivery Time:	7-15 working days
Payment Terms:	T/T, Western Union
Supply Ability:	300k per month
