10.1INCH IPS Display Tft Capacitive Touch Screen 1280X800 Optical Bonding G+G

Brand Name: BOE
Model Number: ZH101IP33025V.C
Place of Origin: Guangdong, China
Certification: ROHS
Minimum Order Quantity: 1
Price: Negotiated
Supply Ability: 300k per month

Product Details


Type: LCD Panel+CTP, TFT Size: 10.1"
Color: Black Brightness: 330nits
Interface: 40pin LVDS Resolution: 1280X800
Viewing Direction: Free Warranty: 1 Year
Application: Industrial, Tablet Cycle Life: 150000
Display Size: 10.1inch Port: Yantian; SheKou
Highlight

10.1INCH display tft touch

,

display tft touch 1280X800

,

tft capacitive touch screen Optical Bonding

Product Description

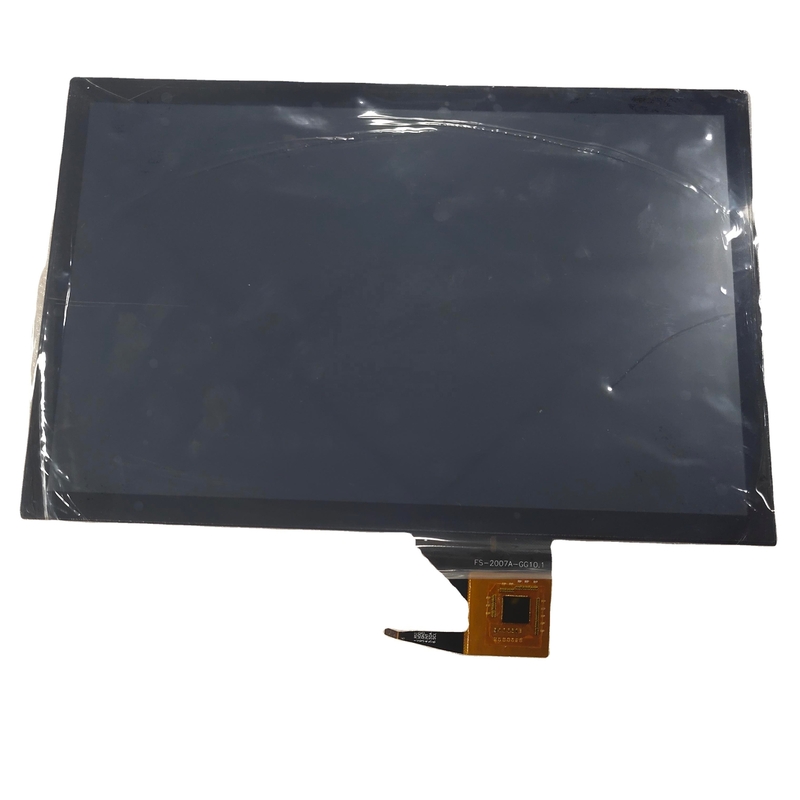

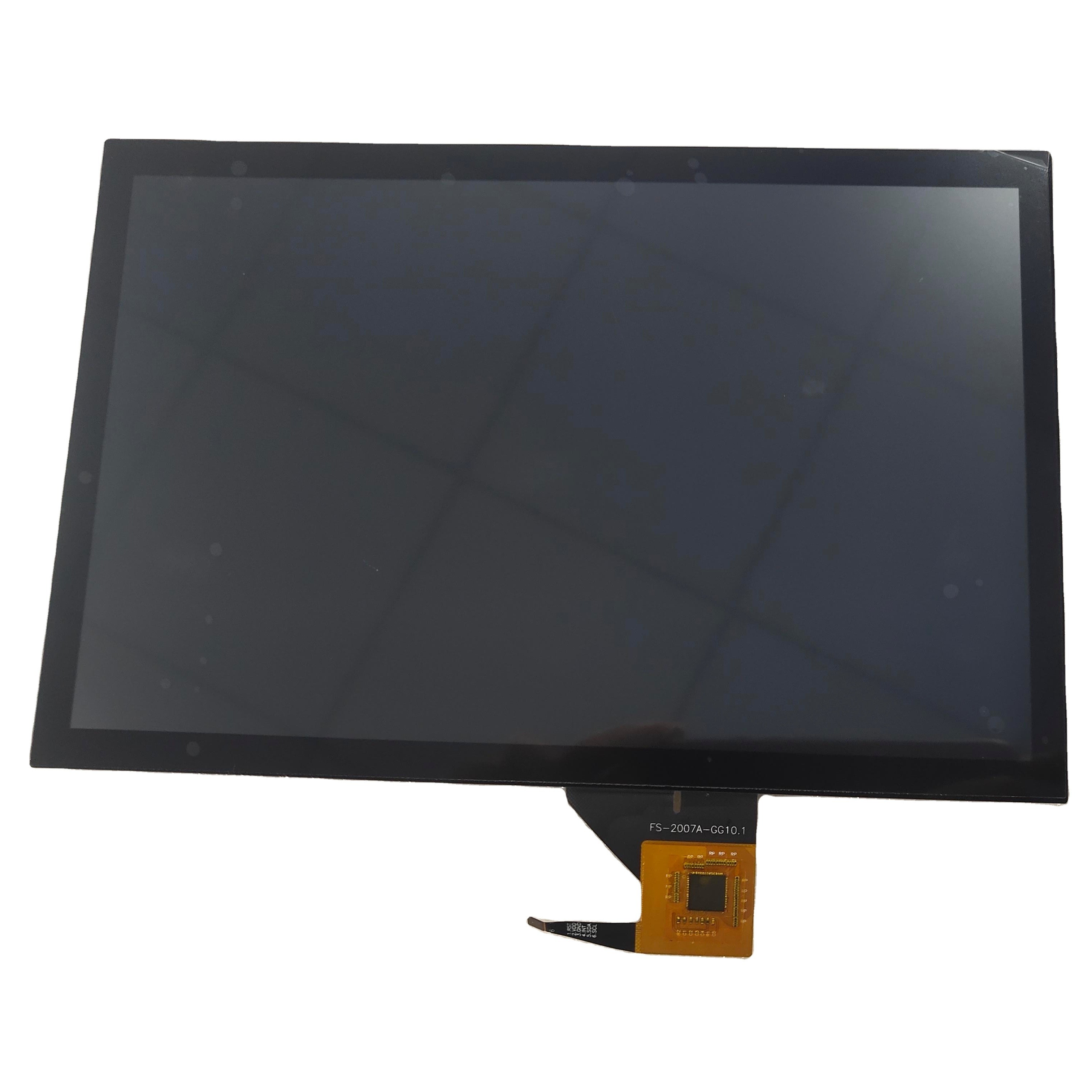

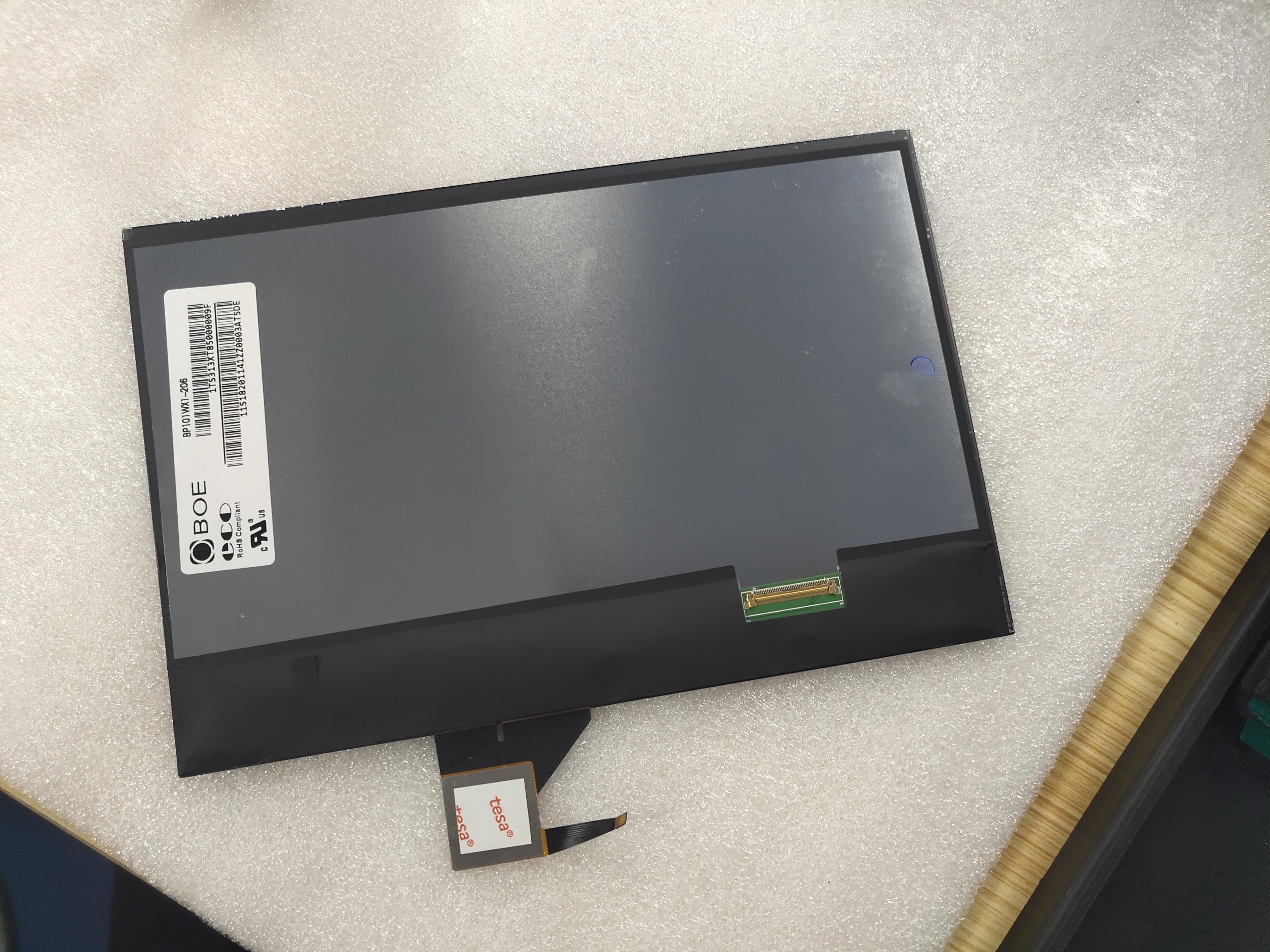

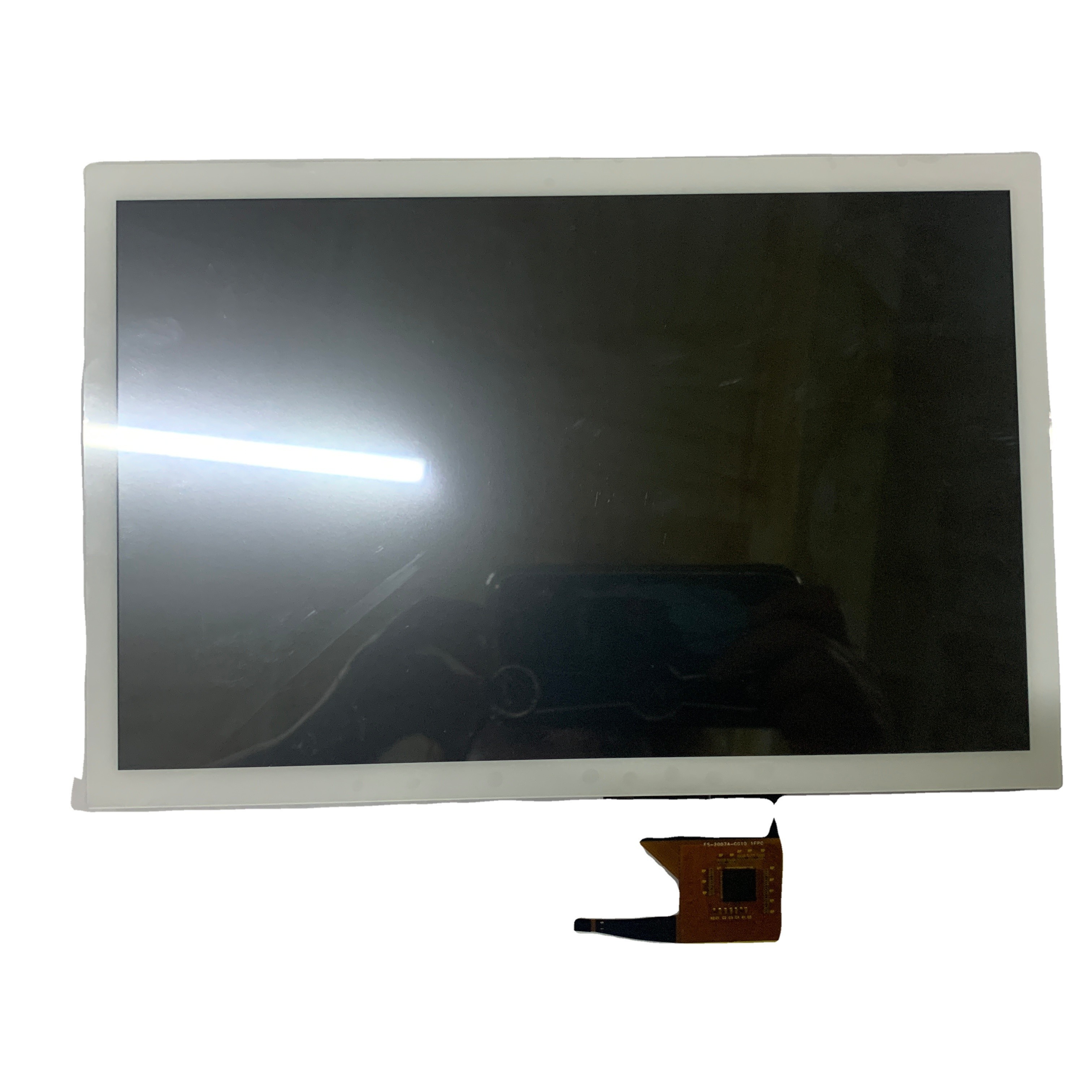

10.1" Tablet Display with 1280X800 IPS TFT LCD and Optical Bonding G+G Capacitive Touch Screen
Product Description



Part Number: ZH101IP33025V.C
Size: 10.1 inches
Resolution: 1280x 3(RGB) x 800
Aspect ratio: 16:9
Module size: 228.6 ×149.2 ×2.39mm
Active area: 216.96(W) × 135.6(H)
Viewing angle: 85/85/85/85
Operating temperatures: -20 to 70
Storage temperature: -30 to 80
Brightness: 330cd/m2
Interface: 40PIN LVDS interface
Touch: capacitive touch screen
Touch IC: GT928
surface hardness: 6H






Pls feel free to ask for datasheet of ZH101IP33025V.C!





Packaging & Shipping

 10.1INCH IPS Display Tft Capacitive Touch Screen 1280X800 Optical Bonding G+G 0

Our Services

 10.1INCH IPS Display Tft Capacitive Touch Screen 1280X800 Optical Bonding G+G 1

1. Replacement within 30 days after the shipment of products from us due to products' problems.
2. We can print your logo and stick your model No.on the cameras.
3. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
4. Professional technician supports. We have a good after-sales service team to solve your problems in time.
5.All goods will be inspected and tested before shipment.
6.Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Trademanager or Email. It will be responded within 24 hours.

Company Information
ZhuoHong Electronic Technology has been specializing in TFT LCD display and touch screen more than 10years. There are  90% of our business is custom made display modules for projects such as industrial devices, medical and smart home applications.Our mission is to provide customer one-stop solution. With LCD display and touch screen as our product center, great trust is built with our customers.
10.1INCH IPS Display Tft Capacitive Touch Screen 1280X800 Optical Bonding G+G 2
10.1INCH IPS Display Tft Capacitive Touch Screen 1280X800 Optical Bonding G+G 3
10.1INCH IPS Display Tft Capacitive Touch Screen 1280X800 Optical Bonding G+G 4
Application: Industrial Control/ Home Automation / digital photo frame / Automotive display /portable DVD player / POS Machine, Car navigation, Robot, Medical device, Phone and so on;
FAQ

 Q: When can i get the quotation?

 A: We usually quote within 12 hours after we got your inquiry.

 If it is very urgent, please call us or contact us via email, Skype or WhatsApp.



Q: What is your warranty?

A: We provide one year warranty.



Q: May i buy samples from you?

A: Yes! You are welcome to place sample order to test our superior quality and service.



Q: How to place bulk order?

A: 1) Tell us model number, quantity, color and other special requirements.

2) Proforma Invoice will be made and sent to you for approval

3) Production will be arranged once get your payment or deposit.

4) Goods will be delivered as stated on the Proforma Invoice.



Q: How will you deliver my goods to me?

A: We provide as many shipping options as possible, such as DHL, UPS, FEDEX, TNT AND EMS to enable our customers get their goods rapidly at door. We also ship by economick method such as air cargo and sea cargo, direct line, air mail according to customers' request.



Q: What about the quality of your product?

A: We provide unrivaled quality: very rigorous testing process for incoming quality control, input process quality control, and final quanltiy control for every piece. We follow QC test procedure, and do 100% FQC to ensure your satisfication.



Q: Can you provide OEM service?

A: Yes! We can provide professional OEM service.



Q: What payment method do you accept?

A: T/T(bank transfer), L/C and paypal



Q: Do you have any after-sales service?

A: Yes! Our productt has professional after-sales service dept. Follow up R.M.A. Items service and upload product fireware and app for you download.

If you have any technical questions with the goods, please feel freely to contact our technical support dept, or our sales directly.



Product Highlights

10.1" Tablet Display with 1280X800 IPS TFT LCD and Optical Bonding G+G Capacitive Touch Screen Product Description Part Number: ZH101IP33025V.C Size: 10.1 inches Resolution: 1280x 3(RGB) x 800 Aspect ratio: 16:9 Module size: 228.6 ×149.2 ×2.39mm Active area: 216.96(W) × 135.6(H) Viewing angle: 85/85/85/85 Operating temperatures: -20 to 70 Storage temperature: -30 to 80 Brightness: 330cd/m2 Interface: 40PIN LVDS interface Touch: capacitive touch screen Touch IC: GT928 surface
