800cd/M2 Sunlight Readable Tft Lcd LVDS 1280x800 IPS Tft Capacitive Touchscreen
Product Details
| Type: | TFT, Touch Display | Display Size: | 10.1inch |
|---|---|---|---|
| Size: | 10.1" | Color: | Black |
| Brightness: | 800nits | Interface: | 40pin LVDS |
| Resolution: | 1280X800 | Viewing Direction: | Free |
| Warranty: | 1 Year | Application: | Industrial, Medical, Home Application |
| Cycle Life: | 200000 | ||
| Highlight |
800cd/m2 sunlight readable tft lcd,ips tft capacitive touchscreen,800cd/m2 tft capacitive touchscreen |
||
Product Description

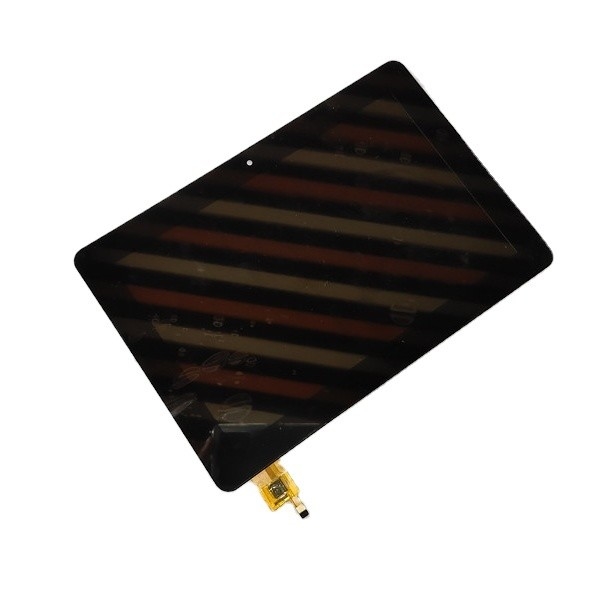

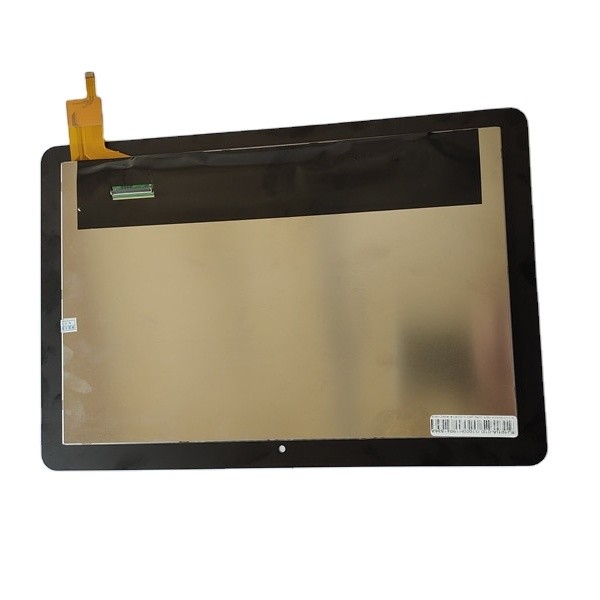

800cd/m2 Sunlight Readable LVDS interface 1280x800 IPS 10.1 inch tft lcd display with capacitive touch panel
| Part Number: | ZH101IP80025V.C |
| Size: | 10.1 inches |
| Resolution: | 1280x 3(RGB) x 800 |
| Aspect ratio: | 16:9 |
| Module size: | 228.6 ×149.2 ×2.39mm |
| Aspect ratio: | 216.96(W) × 135.6(H) |
| Viewing angle: | 85/85/85/85 |
| Operating temperatures: | -20 to 70 |
| Storage temperature: | -30 to 80 |
| Brightness: | 800cd/m2 |
| Interface: | 40PIN LVDS interface |
| Touch Screen: | Capacitive touch screen |
| Hardness surface: | 6H |
| Board: | HDMI Board |
10.1-Inch 1280x800 IPS TFT LCD Display with Capacitive Touch Panel (800cd/m², Sunlight Readable, LVDS Interface)
Overview:
This 10.1-inch IPS (In-Plane Switching) TFT LCD display offers a high resolution of 1280x800 pixels, delivering sharp, vibrant images with wide viewing angles. The display features a brightness of 800 cd/m², making it sunlight-readable and suitable for outdoor and high-brightness environments. It comes with a capacitive touch panel that supports multi-touch gestures, providing an intuitive, responsive interface. With an LVDS (Low Voltage Differential Signaling) interface, this display ensures fast and reliable data transmission, ideal for applications requiring high-resolution visuals and touch functionality in bright outdoor settings.
Key Features:
- Screen Size: 10.1 inches (diagonal)
- Resolution: 1280x800 pixels, offering crisp and detailed visuals
- Display Type: IPS (In-Plane Switching) TFT LCD, ensuring excellent color accuracy and wide viewing angles (178° horizontal/vertical)
- Touch Panel: Capacitive touch screen, supporting multi-touch gestures (up to 10-point touch)
- Interface: LVDS interface for high-speed data transmission and stable performance in high-resolution applications
- Brightness: 800 cd/m², sunlight-readable, suitable for outdoor and bright environments
- Backlight: LED backlight, providing high brightness with low power consumption
- Aspect Ratio: 16:10, ideal for modern content, multimedia, and control interfaces
- Color Depth: 16.7 million colors (24-bit color depth), delivering vibrant and realistic color representation
- Viewing Angle: 178° wide viewing angle for clear visibility from any direction
- Contrast Ratio: Typically 1000:1 for deep blacks and bright whites
- Operating Voltage: 3.3V to 5V (depending on controller and touch panel requirements)
- Touch Sensitivity: Responsive capacitive touch with glass cover, providing durable and scratch-resistant surface
- Operating Temperature: -20°C to 70°C, suitable for a wide range of environmental conditions
- Dimensions: Thin and lightweight, ideal for integration into slim and portable devices
Applications:
- Outdoor kiosks and interactive displays
- Medical devices and healthcare equipment
- Industrial control panels and HMI (Human-Machine Interface) systems
- Automotive displays (infotainment, navigation, dashboard)
- High-end consumer electronics (tablets, smart home control panels)
- Point-of-sale (POS) systems and self-service terminals
- Portable devices and media players
Advantages:
- Sunlight Readable: 800 cd/m² brightness makes the display clearly visible even in direct sunlight, perfect for outdoor applications
- IPS Technology: Ensures superior color reproduction, contrast, and extremely wide viewing angles, maintaining image quality from any direction
- Capacitive Touch: Supports multi-touch gestures, offering a smooth and responsive user experience, with durable glass protection
- LVDS Interface: Allows for high-speed and stable data transmission, especially important for high-resolution and real-time applications
- Durability: Capacitive touch screens with glass covers provide higher durability and scratch resistance compared to resistive touch panels
- High Resolution: The 1280x800 resolution ensures high-quality images, making it ideal for detailed graphics, videos, and control interfaces
- Energy Efficient: LED backlight provides high brightness with low power consumption, increasing overall device efficiency
This 10.1-inch sunlight-readable display module is perfect for high-performance outdoor applications, offering a combination of high brightness, responsive touch, and vivid visuals. Its LVDS interface ensures fast data transfer, making it ideal for industrial, medical, automotive, and consumer electronics.
1. Replacement within 30 days after the shipment of products from us due to products' problems.
2. We can print your logo and stick your model No.on the cameras.
3. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
4. Professional technician supports. We have a good after-sales service team to solve your problems in time.
5.All goods will be inspected and tested before shipment.
6.Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Trademanager or Email. It will be responded within 24 hours.
Q: When can i get the quotation?
A: We usually quote within 12 hours after we got your inquiry.
If it is very urgent, please call us or contact us via email, Skype or WhatsApp.
Q: What is your warranty?
A: We provide one year warranty.
Q: May i buy samples from you?
A: Yes! You are welcome to place sample order to test our superior quality and service.
Q: How to place bulk order?
A: 1) Tell us model number, quantity, color and other special requirements.
2) Proforma Invoice will be made and sent to you for approval
3) Production will be arranged once get your payment or deposit.
4) Goods will be delivered as stated on the Proforma Invoice.
Q: How will you deliver my goods to me?
A: We provide as many shipping options as possible, such as DHL, UPS, FEDEX, TNT AND EMS to enable our customers get their goods rapidly at door. We also ship by economick method such as air cargo and sea cargo, direct line, air mail according to customers' request.
Q: What about the quality of your product?
A: We provide unrivaled quality: very rigorous testing process for incoming quality control, input process quality control, and final quanltiy control for every piece. We follow QC test procedure, and do 100% FQC to ensure your satisfication.
Q: Can you provide OEM service?
A: Yes! We can provide professional OEM service.
Q: What payment method do you accept?
A: T/T(bank transfer), L/C and paypal
Q: Do you have any after-sales service?
A: Yes! Our productt has professional after-sales service dept. Follow up R.M.A. Items service and upload product fireware and app for you download.
If you have any technical questions with the goods, please feel freely to contact our technical support dept, or our sales directly.
