5inch Tft Capacitive Lcd TN Display 800x480 For Medical Device Screen GT911
Product Details
| Application: | Medical Device | Interface: | 40pin RGB |
|---|---|---|---|
| Type: | Capacitive, 5" Tft Lcd | Size: | 120.7(W) X75.8(H) X3.0(D)mm |
| Luminance: | 500nits | Active Area: | 108(W) X64.8 (H) Mm |
| Contrast Ratio: | 16:9 | Touch Panel: | Capacitive Touch Screen |
| Resolution: | 800x480 | Viewing Direction: | 70/70/50/70 |
| Highlight |
tn display 800x480,5inch tn display,5inch tft capacitive |
||
Product Description

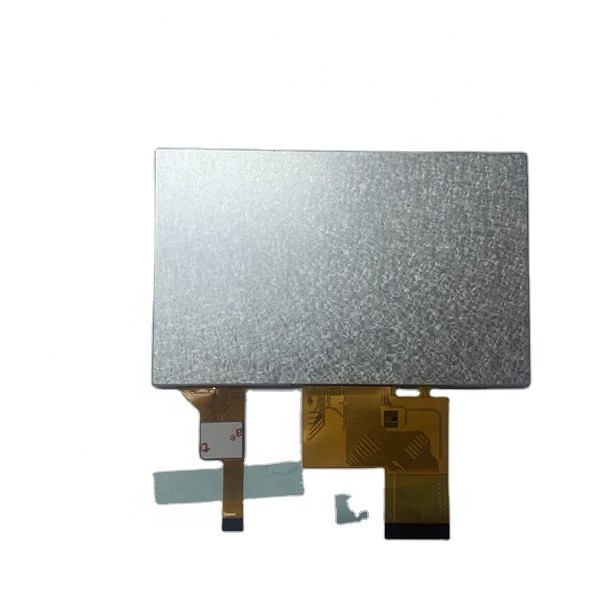

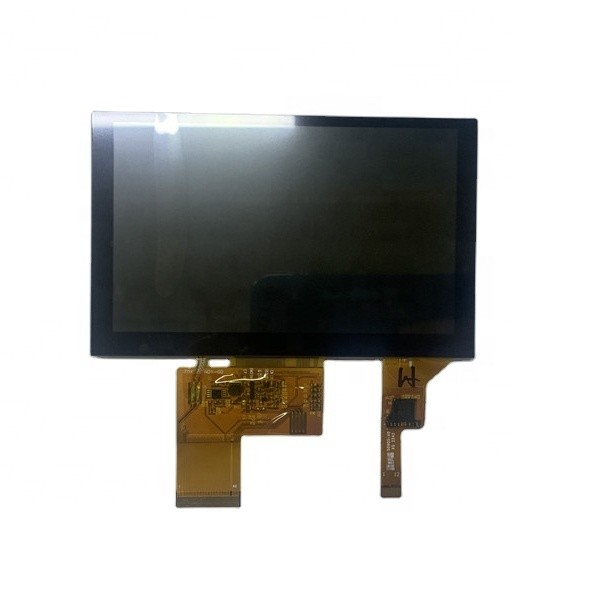

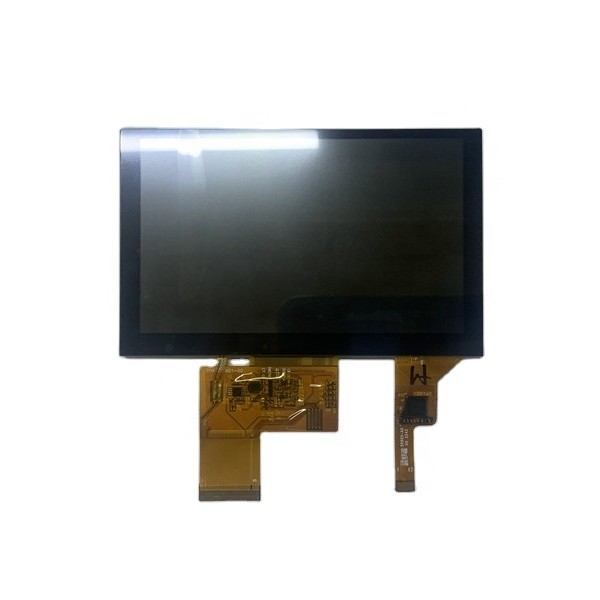

5 " tft lcd TN display 800x480 40pin RGB Medical device screen with capacitive touch screen GT911
| Part Number: | ZH050TG50030V.C |
| Size: | 5.0 inches |
| Resolution: | 800x 3(RGB) x 480 |
| Aspect ratio: | 16:9 |
| Module size: | 120.7(W) ×75.8(H) ×3.0(D) mm |
| Active area: | 108(W) ×64.8 (H) mm |
| Viewing angle: | 70/70/50/70 |
| Operating temperatures: | -20 to 70 |
| Storage temperature: | -30 to 80 |
| Brightness: | 500cd/m2 |
| Interface: | 40PIN RGB interface |
| Touch screen: | Capactive touch panel |
| Interface: | I2C |
| Driver IC: | GT911 |
| Case: | Metal bracket |
Overview: This 5-inch TFT LCD display combines a high-resolution 800x480 pixel panel with capacitive touch technology, providing precise and responsive touch functionality. Utilizing TN (Twisted Nematic) technology, this display offers fast response times, making it perfect for real-time applications such as industrial controls, handheld devices, and multimedia interfaces. The capacitive touch screen allows for multi-touch gestures and a smooth user experience, which is ideal for modern, interactive applications.
Key Features:
Screen Size: 5 inches (diagonal)
Resolution: 800x480 pixels, providing sharp and detailed images
Display Type: TFT (Thin Film Transistor) LCD with TN (Twisted Nematic) technology
Touch Panel: Capacitive touch screen, supporting multi-touch gestures (typically 5-point touch)
Interface: 24-bit RGB interface for the display, I²C interface for the touch panel
Backlight: LED backlight for high brightness, ensuring excellent visibility in various lighting conditions
Color Depth: Supports 16.7 million colors (24-bit color depth)
Aspect Ratio: 16:9 widescreen format, perfect for modern UI designs and multimedia content
Viewing Angle: TN panel offers 60-70° horizontal and vertical viewing angles
Brightness: Typically 350-500 cd/m², ensuring clear visibility in both indoor and outdoor settings
Touch Sensitivity: Highly responsive capacitive touch panel with glass protection, offering smooth and accurate touch input
Operating Voltage: 3.3V or 5V (depending on the display controller and touch panel interface)
Operating Temperature: -20°C to 70°C, suitable for industrial and outdoor applications
Dimensions: Slim and compact design for easy integration into devices
Applications:
Industrial automation and control systems
Medical devices and instruments
Automotive displays (navigation, dashboard, entertainment systems)
Consumer electronics such as tablets, smart home devices, and multimedia players
Point-of-sale (POS) systems
Handheld consoles or portable controllers
