ASUS IOT Industrial Motherboard H610A-IM-A 3- For Advanced Server Workstation Design
Product Details
| Item Condition: | New | Package: | Yes |
|---|---|---|---|
| Ports: | Wifi, SATA, DVI, VGA, PCI-Express X16, USB 2.0, Display Port, M.2, USB 3.0, Usb3.1, PCI-E 3.0, PCI-Express X1, HDMI | With CPU: | No |
| Memory Bank: | 4 DDR4 | Chipset: | Intel H610 |
| Maximum Ram Capacity: | 64 GB | Memory Channel: | Four |
| Private Mold: | NO | Products Status: | New |
| Application: | Server/Workstation | Chipset Manufacturer: | Intel |
| Socket Type: | Other | Form Factor: | Both ATX/AT Mode |
| Memory Type: | DDR4, DDR4 | ||
| Highlight |
64 GB industrial pc motherboard,DDR4 industrial pc motherboard,H610A-IM-A |
||
Product Description

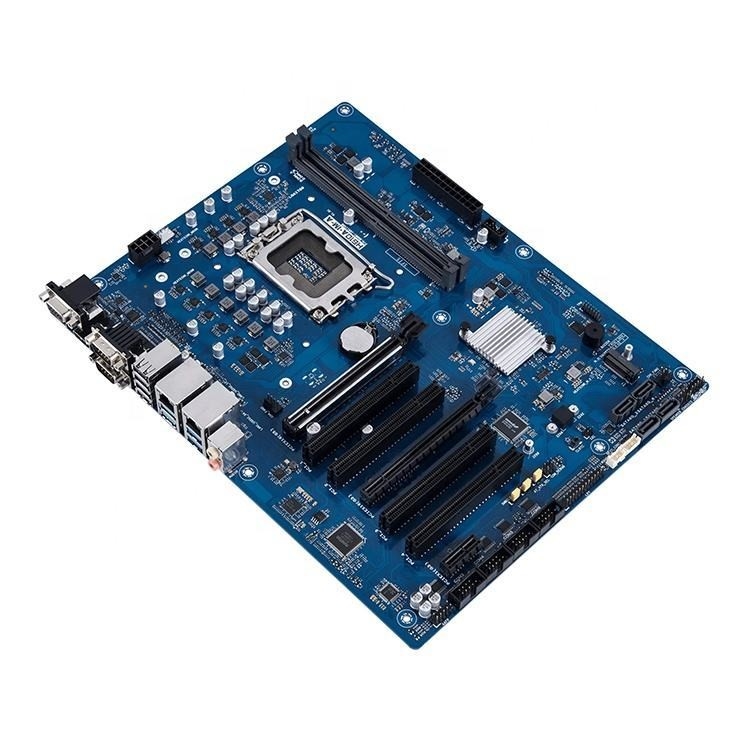

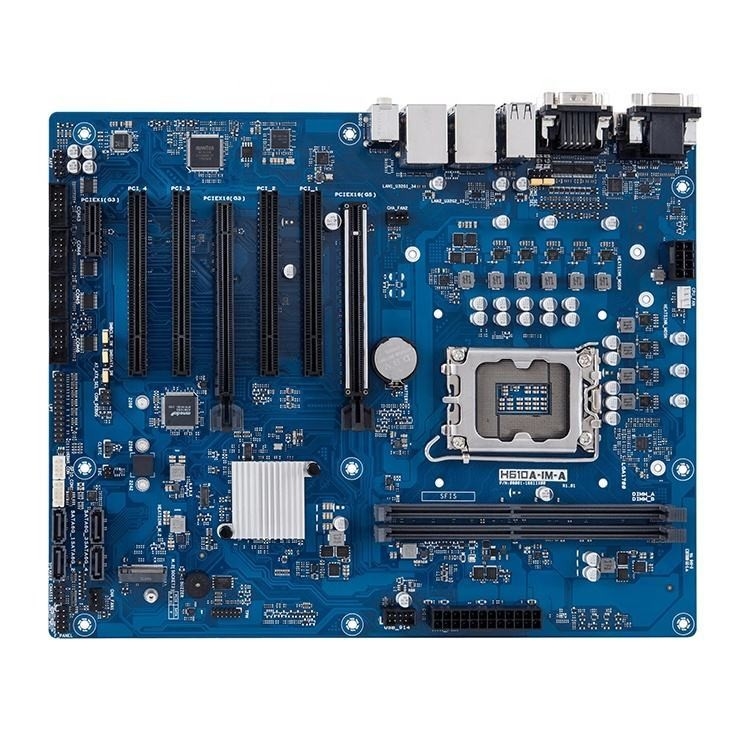

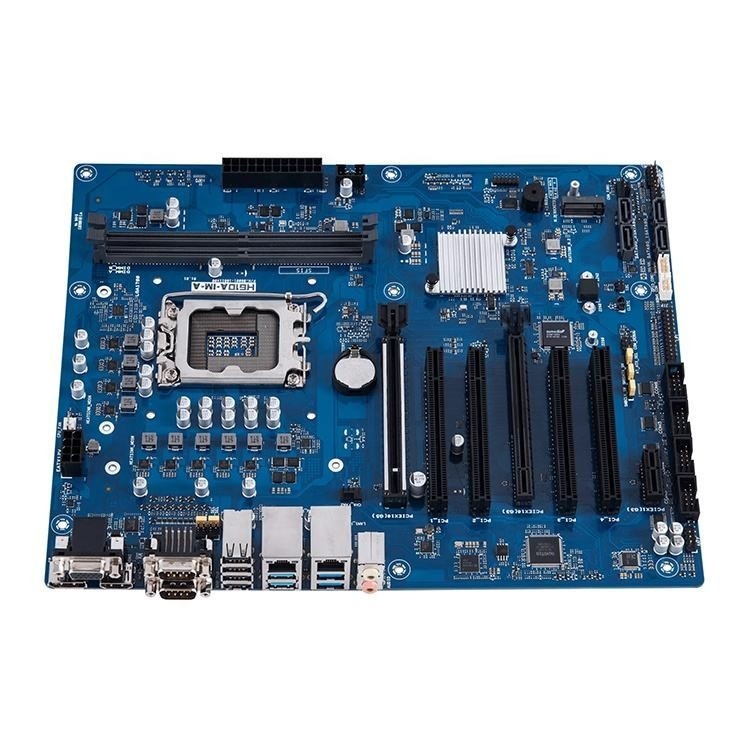

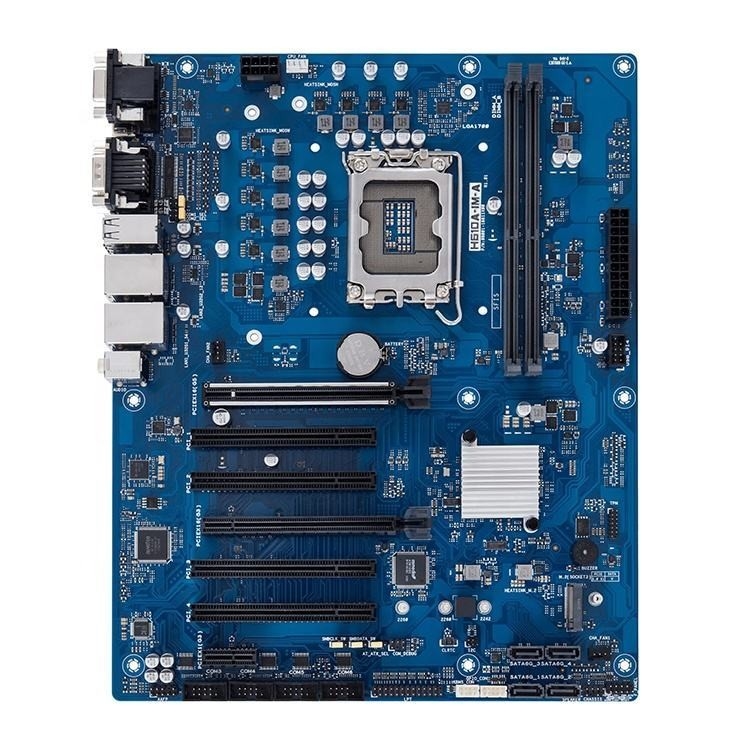

ATX, LGA1700 socket for the 13th / 12th Gen CPU, H610 chipset, 2*U-DIMM, 1*PCIe 5.0 x16 slot, 1*PCIe 3.0/2.0 x16 slot(x4 mode),
VGA, HDMI, DP, Dual LAN, M.2 slot, USB 3.2 Gen2
* H610 ATX motherboard, LGA1700 socket for Intel® 12th Gen Core™ i9/ i7/ i5/ i3/ Pentium® /Celeron® Processors, Max. 125W TDP
* 2 x U-DIMM up to 64 GB DDR4 up to 3200 Mhz
* Supports 3 displays configuration by multiple interface: VGA / HDMI / DP
* Supports 1 x PCIe5.0 x16 slots, 1 x PCIe3.0/2.0 x16 slots(x 4 mode), 1 x PCIe3.0/2.0 x 1 slot, 4 x PCI
* Advanced I/O and connectivity features
* 7 years of longevity with extended product life cycles
* Wide temperature range endurance: 0–60°C
|
IO shield
|
1
|
|
|
|
|
SATA 6G CABLE
|
1
|
|
|
|
|
M.2 screw pack
|
1
|
|
|
|
|
|
|
|
|
|
