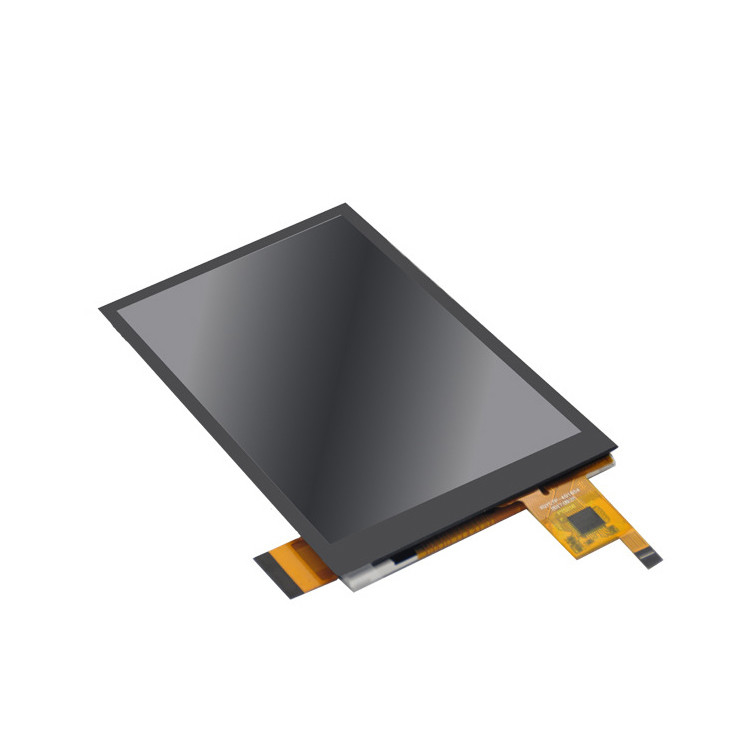

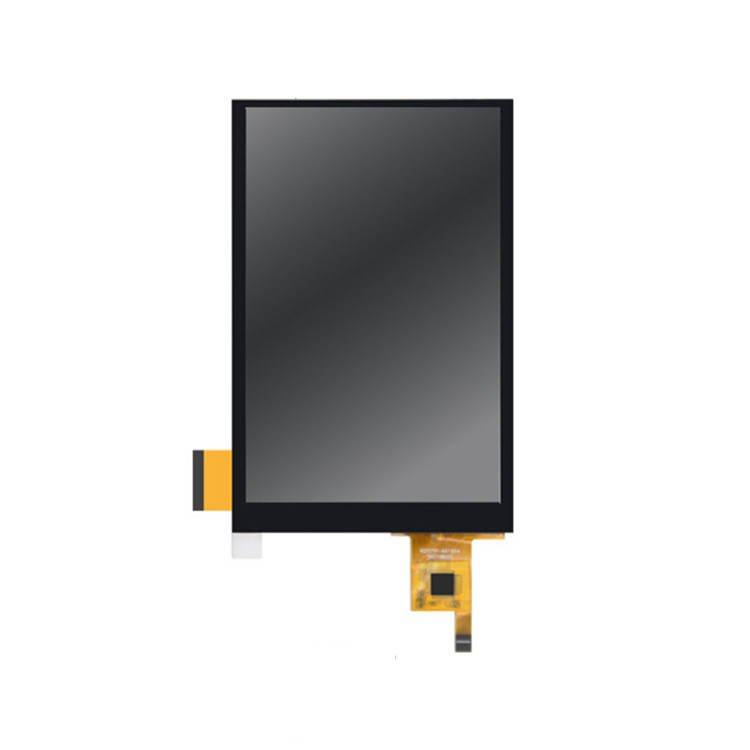

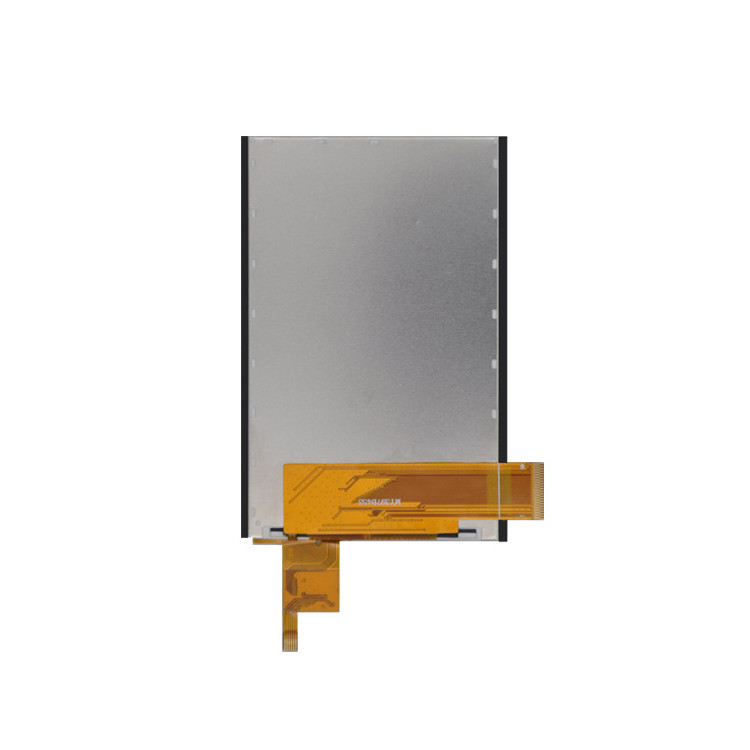

4.0 inch ST7701S TFT LCD Display IPS Screen 480*800 with/without Touch Panel FT5316
Product Details
| Type: | IPS | Display Size: | 4.0 Inch |
|---|---|---|---|
| Supplier Type: | LCD Panel | Display & LCD Type: | 480* RGB *800 |
| Viewing Direction: | All O 'clock | Interface Type: | RGB |

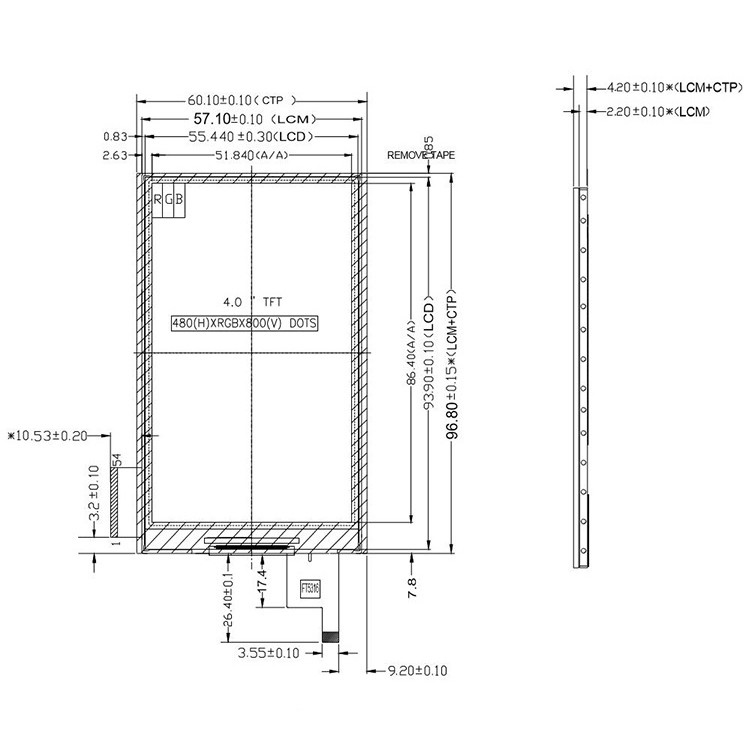

| Touch Panel: | Optional | Outline Dimemsions (mm): | 60.1*96.8*4.2 Mm |
| Driver IC: | ST7701S | Backlight Type: | White LED |

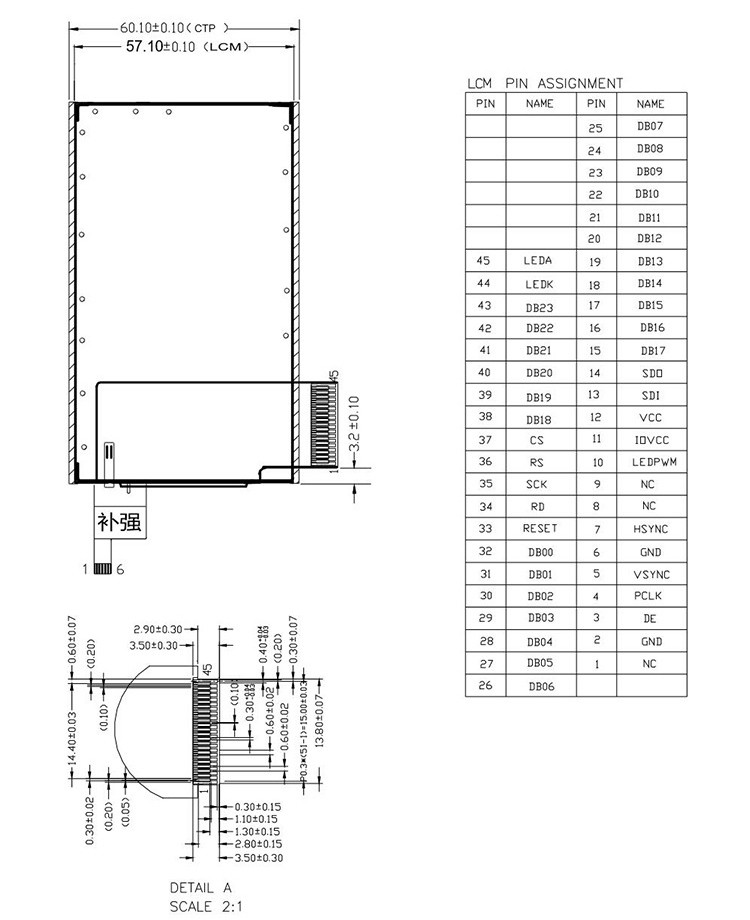

| PIN: | 45 | ||
| Highlight |
ips lcd tft capacitive touchscreen,ips tft lcd capacitive touchscreen |
||
Product Description
|
1.Display Type:
|
4.0 inch TFT LCD ST7701S
|
|
2.Display mode:
|
Transmissive
|
|
3.Resolution:
|
4.0" 480*(RGB)*800
|
|
4. Number of colors:
|
262K
|
|
5.Outline Dimensions:
|
120.7*75.8*4.2 mm
|
|
6.Driver IC:
|
ST7701S
|
|
7.Interface Type:
|
SPI+RGB
|
|
8.Brightness
|
300
|
|
9.Operating voltage:
|
+2.8V~3.3V
|
|
10.Viewing Angle:
|
All O'clock
|
|
11.Operating Temp:
|
-20°C~+70°C
|
|
12.Storage Temp:
|
-30°C~+80°C
|
2. We can print your logo and stick your model No.on the cameras.
3. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good
discounts.
4. Professional technician supports. We have a good after-sales service team to solve your problems in time.
5.All goods will be inspected and tested before shipment.
6.Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us
by Trademanager or Email. It will be responded within 24 hours.
A: We usually quote within 12 hours after we got your inquiry.
If it is very urgent, please call us or contact us via email, Skype or WhatsApp.
Q: What is your warranty?
A: We provide one year warranty.
Q: May i buy samples from you?
A: Yes! You are welcome to place sample order to test our superior quality and service.
Q: How to place bulk order?
A: 1) Tell us model number, quantity, color and other special requirements.
2) Proforma Invoice will be made and sent to you for approval
3) Production will be arranged once get your payment or deposit.
4) Goods will be delivered as stated on the Proforma Invoice.
Q: How will you deliver my goods to me?
A: We provide as many shipping options as possible, such as DHL, UPS, FEDEX, TNT AND EMS to enable our customers get their goods
rapidly at door. We also ship by economick method such as air cargo and sea cargo, direct line, air mail according to customers'
request.
Q: What about the quality of your product?
A: We provide unrivaled quality: very rigorous testing process for incoming quality control, input process quality control, and
final quanltiy control for every piece. We follow QC test procedure, and do 100% FQC to ensure your satisfication.
Q: Can you provide OEM service?
A: Yes! We can provide professional OEM service.
Q: What payment method do you accept?
A: T/T(bank transfer), L/C and paypal
Q: Do you have any after-sales service?
A: Yes! Our productt has professional after-sales service dept. Follow up R.M.A. Items service and upload product fireware and app
for you download.
If you have any technical questions with the goods, please feel freely to contact our technical support dept, or our sales
directly.
