320X480 3.5 Inch LCD Display Module TFT HX83570 45PIN 8bit 16bit Parallel Port

Basic Information
Place of Origin: Guangdong, China
Brand Name: oem
Certification: ROHS
Model Number: ZH035SHV009NS
Document: Product Brochure PDF
Minimum Order Quantity: 1
Price: Negotiated
Packaging Details: Carton Packing
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union
Supply Ability: 300k per month
Detail Information
Display Size: 3.5 Inch Type: TFT LCD
Size: 3.5" Color: White
Viewing Angle: 300nits Interface: 45pin 8 Or 16BIT MCU,3/4SPI
Contrast Ratio: 16:9 Resolution: 320X480
Viewing Direction: 12 'CLOCK Warranty: 1 Year
Driver IC: HX83570 Port: Yantian; SheKou
Highlight:

module tft hx83570

,

320x480 module tft

,

320x480 tft lcd module


Product Description

3.5 inch TFT ILI9486 3/4-wire SPI compatible 8bit/16bit parallel port 40PIN LCD 320x480 display

Part Number  ZH035SHV009NS
size:  3.5 inch
Product external dimensions (mm): 84.52x55.26x3.5
Visual area (mm): 73.44x48.96
Drive IC HX83570
Resolution: 320x480
Interface form: 8/16bit MCU parallel interface, 4 line /3 line SPI serial interface
Interface way: plug-in
Color: Full color
PIN NO.: 45pin 8 or 16BIT MCU,3/4SPI
Backlight  White LED
Viewing direction 12 'CLOCK




Pls feel free to ask for datasheet of ZH035SHV009NS!

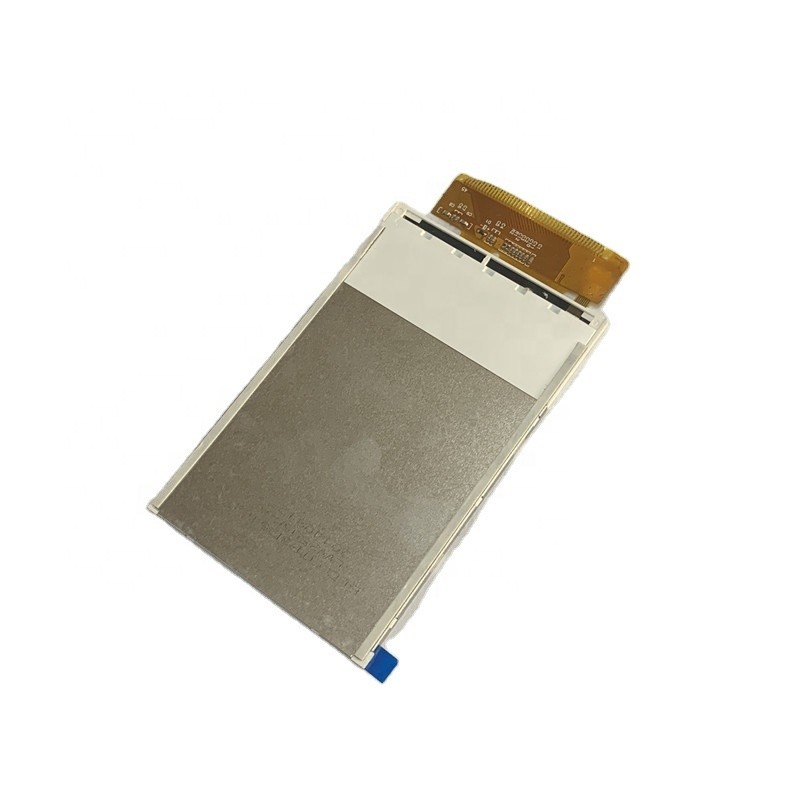

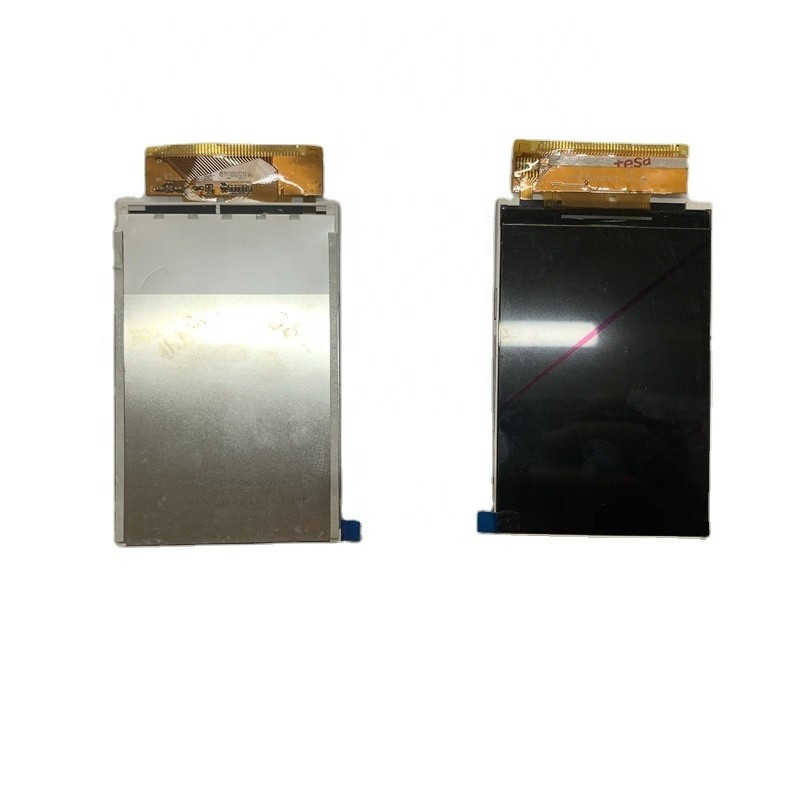

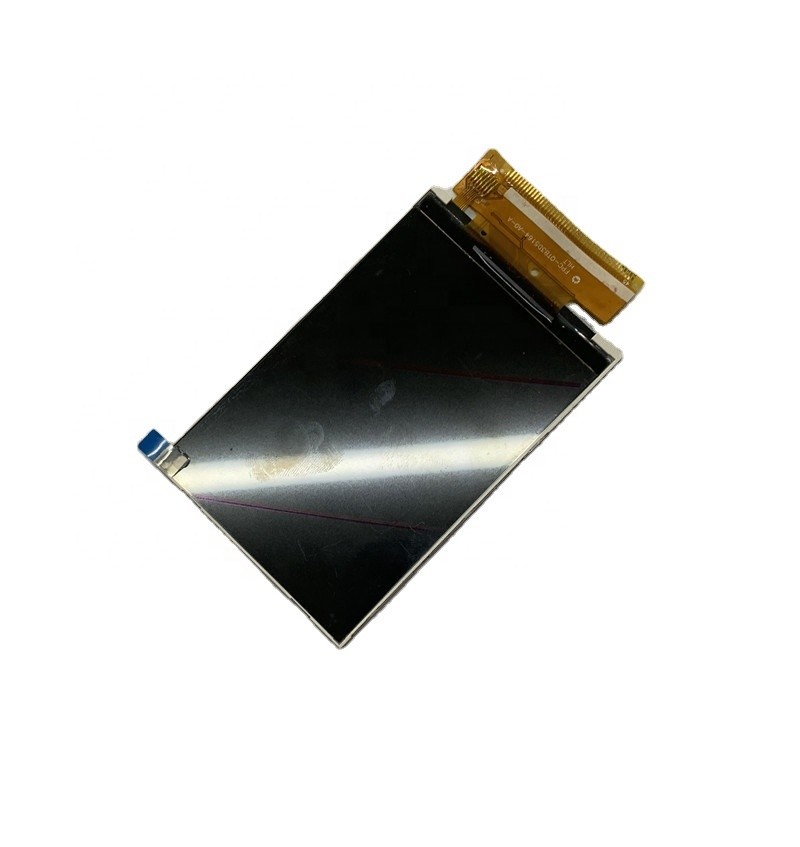

320X480 3.5 Inch LCD Display Module TFT HX83570 45PIN 8bit 16bit Parallel Port 0320X480 3.5 Inch LCD Display Module TFT HX83570 45PIN 8bit 16bit Parallel Port 1

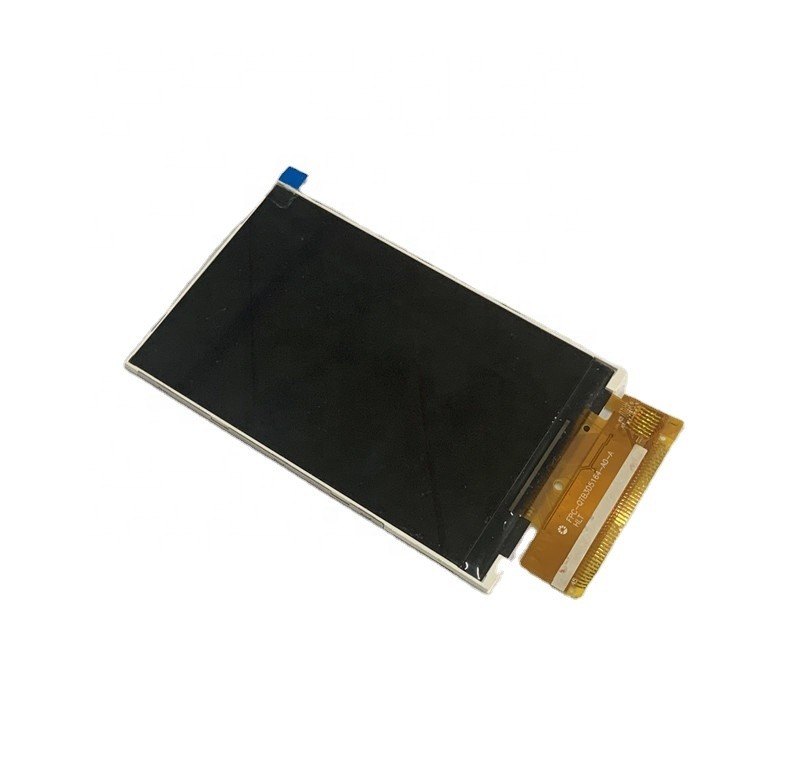

320X480 3.5 Inch LCD Display Module TFT HX83570 45PIN 8bit 16bit Parallel Port 2

Packaging & Shipping

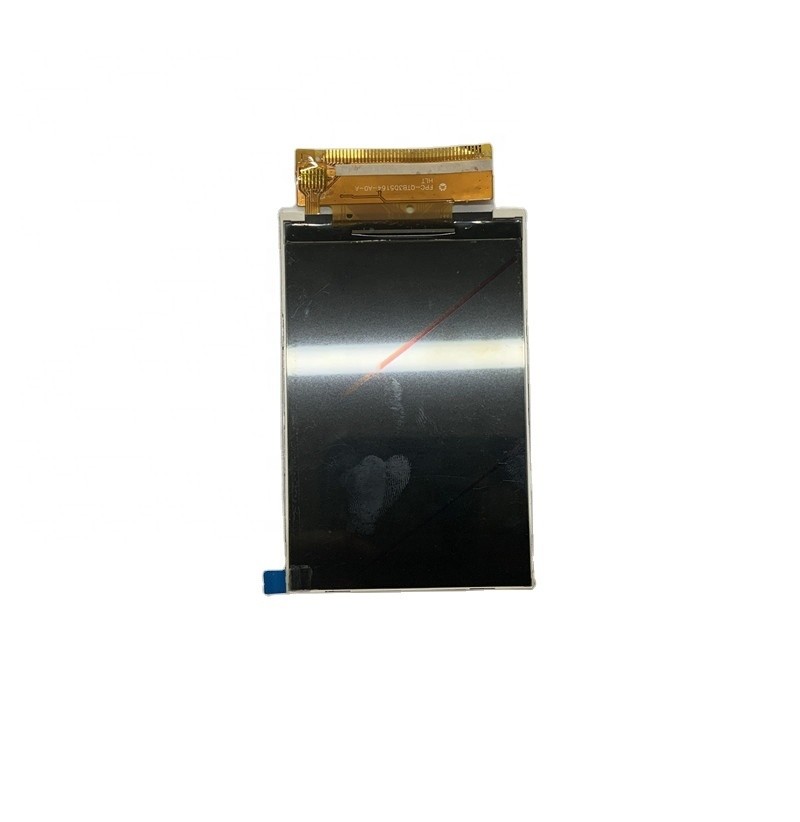

 320X480 3.5 Inch LCD Display Module TFT HX83570 45PIN 8bit 16bit Parallel Port 3

Our Services

 320X480 3.5 Inch LCD Display Module TFT HX83570 45PIN 8bit 16bit Parallel Port 4

1. Replacement within 30 days after the shipment of products from us due to products' problems.
2. We can print your logo and stick your model No.on the cameras.
3. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
4. Professional technician supports. We have a good after-sales service team to solve your problems in time.
5.All goods will be inspected and tested before shipment.
6.Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Trademanager or Email. It will be responded within 24 hours.

Company Information
ZhuoHong Electronic Technology has been specializing in TFT LCD display and touch screen more than 10years. There are  90% of our business is custom made display modules for projects such as industrial devices, medical and smart home applications.Our mission is to provide customer one-stop solution. With LCD display and touch screen as our product center, great trust is built with our customers.
320X480 3.5 Inch LCD Display Module TFT HX83570 45PIN 8bit 16bit Parallel Port 5
320X480 3.5 Inch LCD Display Module TFT HX83570 45PIN 8bit 16bit Parallel Port 6
320X480 3.5 Inch LCD Display Module TFT HX83570 45PIN 8bit 16bit Parallel Port 7
Application: Industrial Control/ Home Automation / digital photo frame / Automotive display /portable DVD player / POS Machine, Car navigation, Robot, Medical device, Phone and so on;
