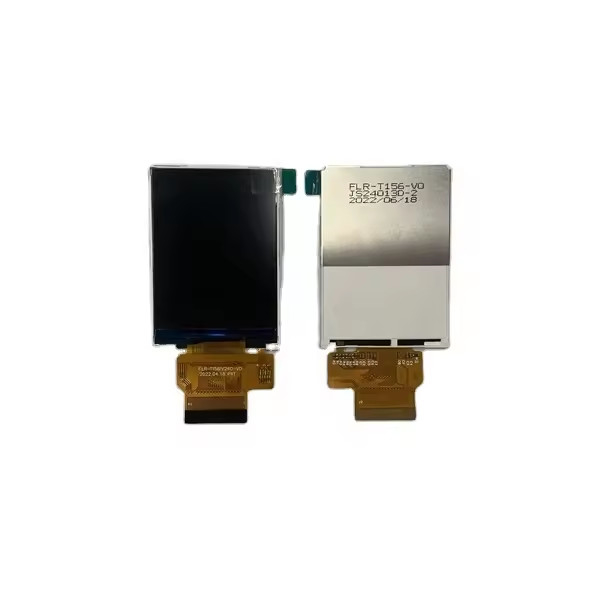

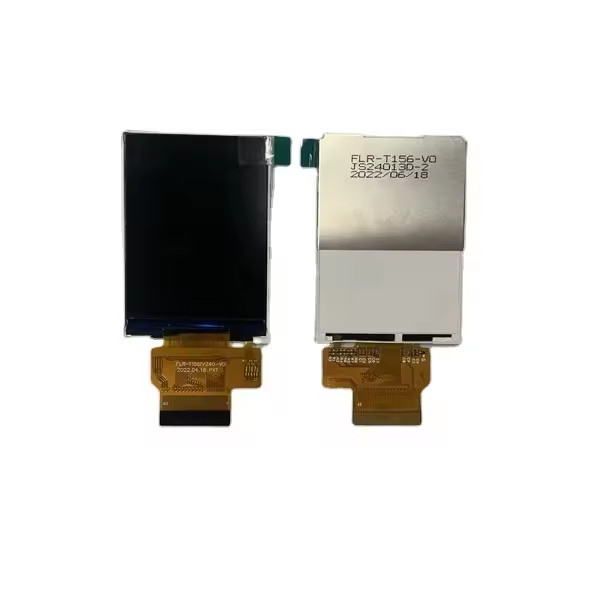

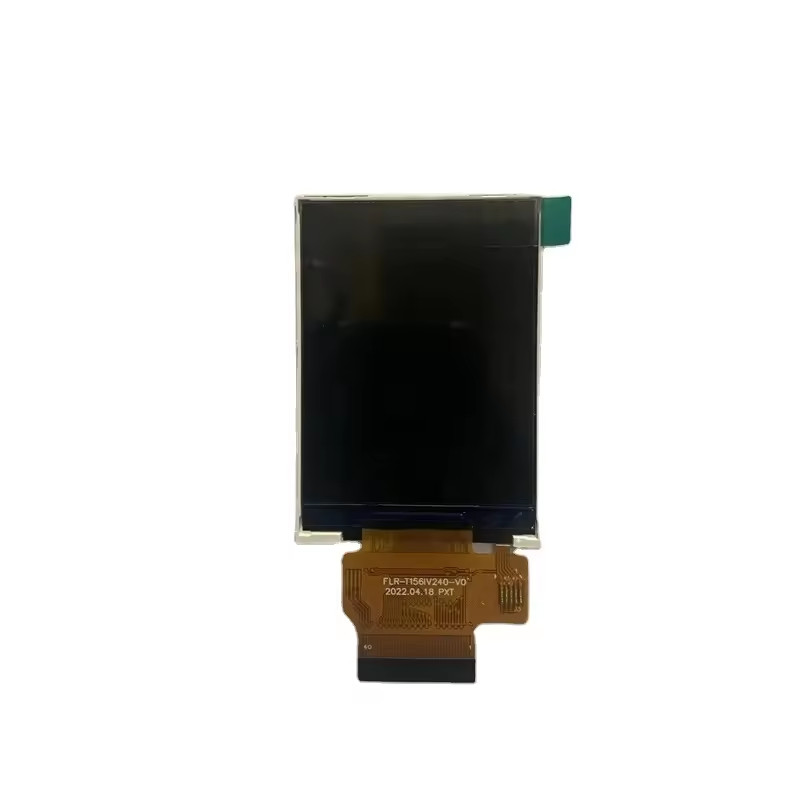

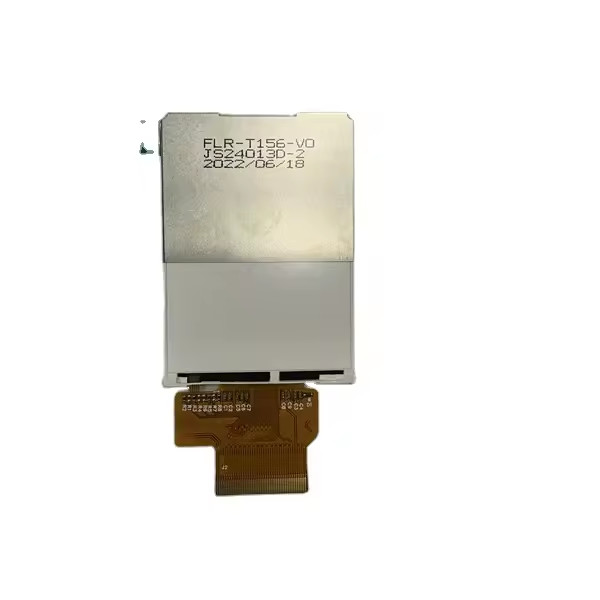

2.4" TFT LCD display 40pin 240*320 3-wire 4-wire SPI serial port 8-bit 16-bit parallel driver ic ILI9341
Product Details
| Size:: | 2.4 Inch | Backlight: | White LED |
|---|---|---|---|
| Display Type: | TFT LCD | Brightness: | 220nits |
| Resolution: | 240x320 | Viewing Angle: | 12 O'clock |
| Driver Ic: | ILI9341 | Interface: | 8/16BIT 40pin MCU |
| Active Area: | 36.72 (H)*48.96 (V) | Module Size: | 42.72(H)*60.26(W)*2.5(T) |
| Contrast Ratio: | 500:1 | ||
| Highlight |
tft lcd display 40pin,40pin tft lcd panel,spi tft lcd panel |
||
Product Description
2.4" TFT LCD display 40pin 240*320 3-wire 4-wire SPI serial port 8-bit 16-bit parallel driver ic ILI9341
| Model NO. |
ZH024TC22025
|
| Usage | Home Appliance, GPS, Door Bell, Auto Device, Medical Device, Industrial Design |
| Digital LCD Module Type | Counting Module |
| Touch Screen Type | Without touch |
| Type | LCM |
| Response Time | 1ms |
| Viewing Angle | 12 O'Clock |
| Display Technology | TFT |
| DOT-Matrix Graphic LCD Module Type | Row/Column Control Type |
| LCD Drive Mode | Static Drive LCD Module |
| Resolution |
240(RGB)×320
|
| Assy Type | Cog+FPC+Bl |
| Driver |
ILI9341
|
| Interface |
40pin
8,9,16,18-bits MPU / 6,16,18-bits RGB / 3,4 Wire SPI
|
| Contrast Ration | 200:1 |
| NTSC | 65% |
| Luminance |
240 cd/m2
|
| Operating Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
| Trademark | ZhuoHong |
| Specification |
2.4" tft lcd 240x320 tft lcd display
|
| Origin | China |
| HS Code | 9013803010 |
Company Strenghth:
1> ISO9001 certificated, Factory Direct Supplied
2> RoHS Compliant, Lead Free, Reach Compliant
3> Competitive Price and Short Lead-time
4> Professional Team with Rich Experiences in Design/Mfg/Quality Control
5> Small MOQ Support & Fast Response to Customers
6> Long Product Life Time
FAQ
Q: When can i get the quotation?
A: We usually quote within 12 hours after we got your inquiry.
If it is very urgent, please call us or contact us via email, Skype or WhatsApp.
Q: What is your warranty?
A: We provide one year warranty.
Q: May i buy samples from you?
A: Yes! You are welcome to place sample order to test our superior quality and service.
Q: How to place bulk order?
A: 1) Tell us model number, quantity, color and other special requirements.
2) Proforma Invoice will be made and sent to you for approval
3) Production will be arranged once get your payment or deposit.
4) Goods will be delivered as stated on the Proforma Invoice.
Q: How will you deliver my goods to me?
A: We provide as many shipping options as possible, such as DHL, UPS, FEDEX, TNT AND EMS to enable our customers get their goods rapidly at door. We also ship by economick method such as air cargo and sea cargo, direct line, air mail according to customers' request.
Q: What about the quality of your product?
A: We provide unrivaled quality: very rigorous testing process for incoming quality control, input process quality control, and final quanltiy control for every piece. We follow QC test procedure, and do 100% FQC to ensure your satisfication.
Q: Can you provide OEM service?
A: Yes! We can provide professional OEM service.
Q: What payment method do you accept?
A: T/T(bank transfer), L/C and paypal
Q: Do you have any after-sales service?
A: Yes! Our productt has professional after-sales service dept. Follow up R.M.A. Items service and upload product fireware and app for you download.
If you have any technical questions with the goods, please feel freely to contact our technical support dept, or our sales directly
